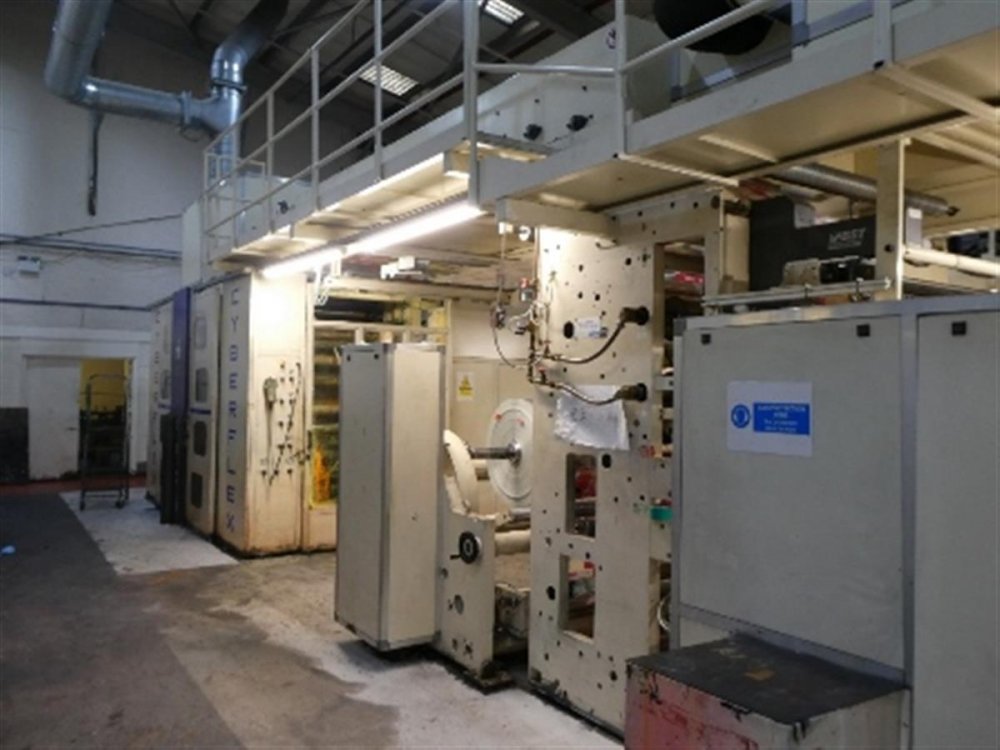

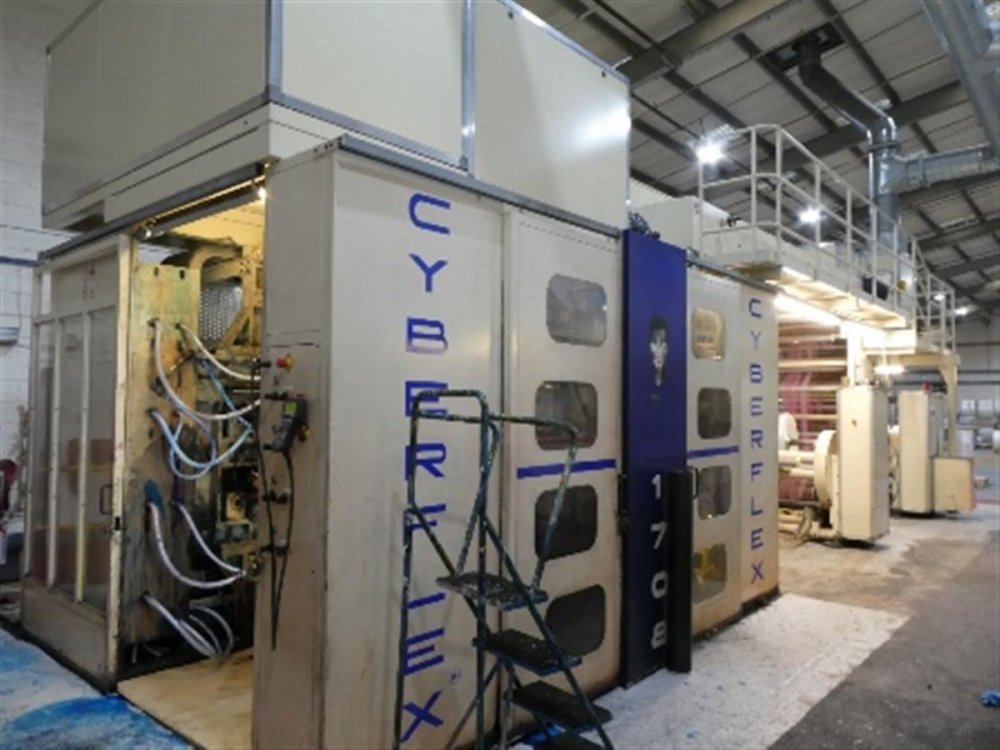

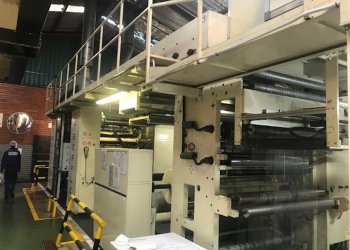

CARINT CYBERFLEX flexo printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL886
Manufacturer
CARINT
Modello
CYBERFLEX
Year
2007
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

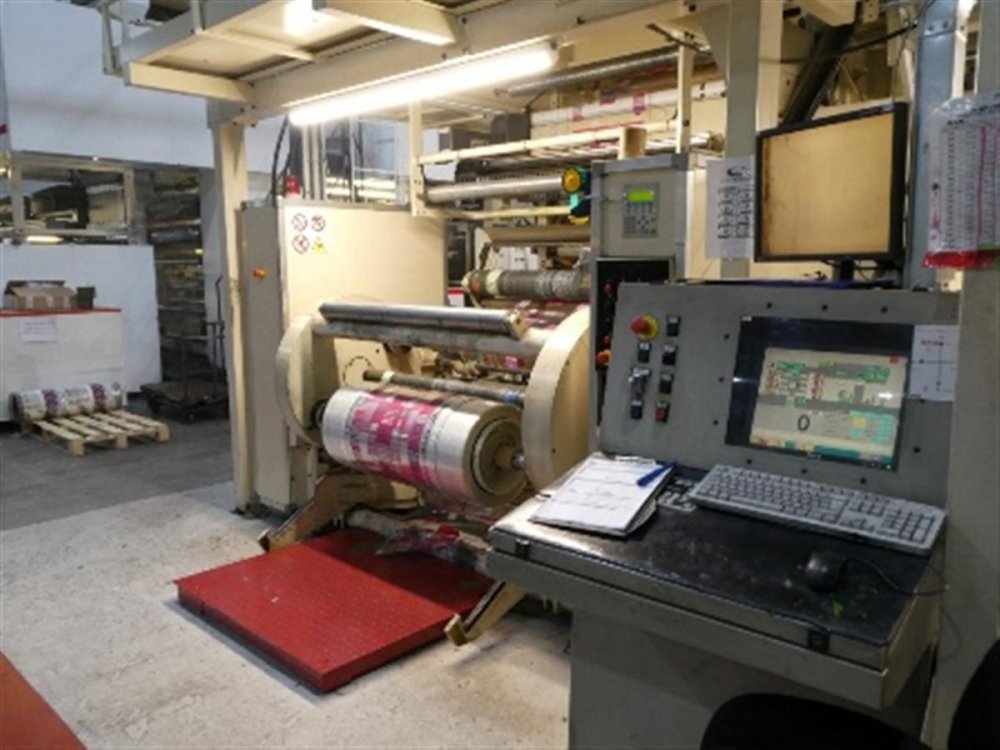

Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1220
Min print repeat (mm)
360
Max print repeat (mm)
800

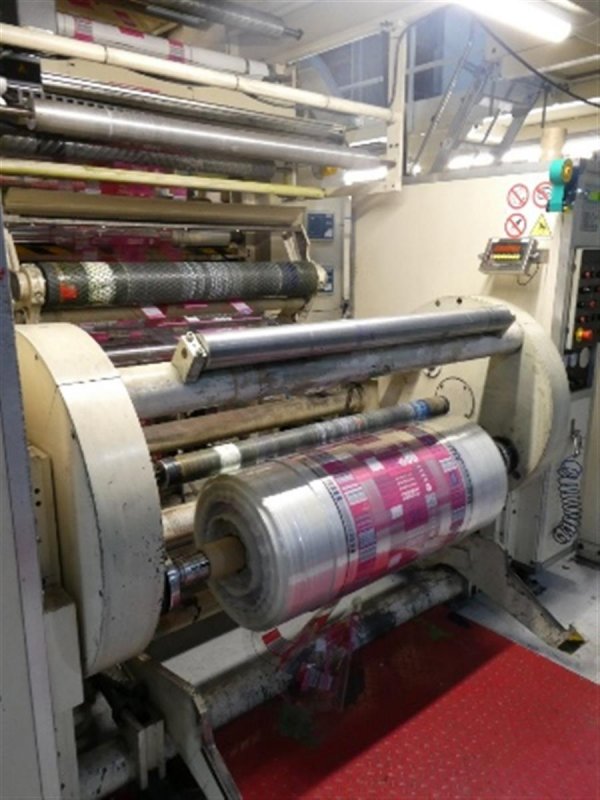

Unwinder type
Turretb Automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones 4 fans , 4 mt tunnel , automatic air recirculation system
Videocamera
BST
Web guides
YES in and out
Vyscosity control
VIS 25 GAMA
Inking system
Closed chamber doctor blades
Anilox
22 ceramic anilox sleeve s
Print Sleeves
4 sets
Note
26.11.2020:attenzione probabilmente venduta non offrire attendere conferma da Alan Attard.
Machine Code FL886
Manufacturer CARINT
Modello CYBERFLEX
Year 2007
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1220
Min print repeat (mm) 360
Max print repeat (mm) 800
Unwinder type Turretb Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones 4 fans , 4 mt tunnel , automatic air recirculation system
Videocamera BST
Web guides YES in and out
Vyscosity control VIS 25 GAMA
Inking system Closed chamber doctor blades
Anilox 22 ceramic anilox sleeve s
Print Sleeves 4 sets
Note 26.11.2020:attenzione probabilmente venduta non offrire attendere conferma da Alan Attard.
** SOLD **
