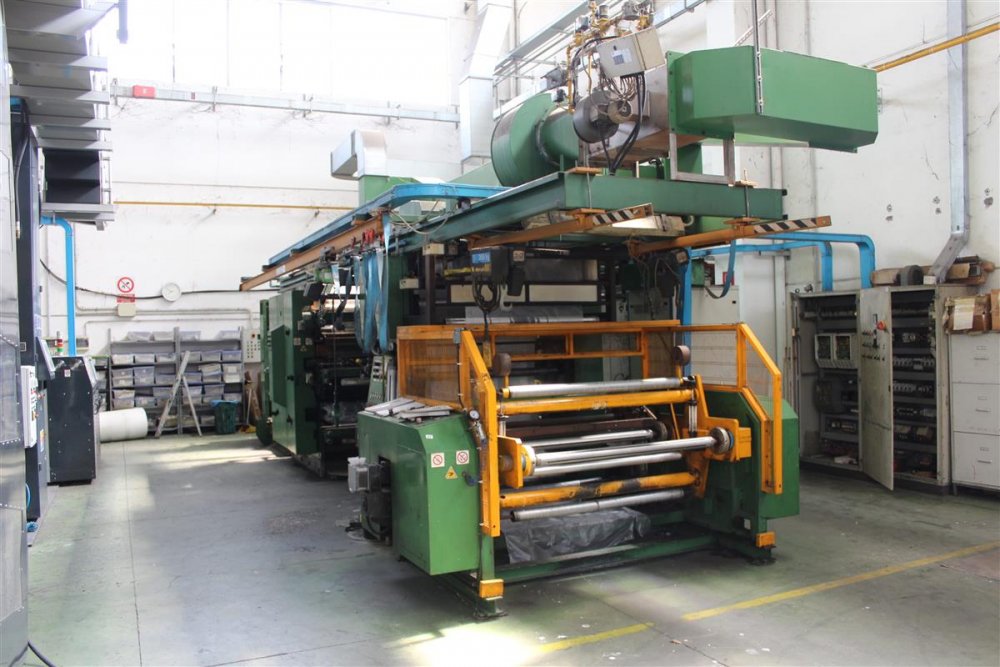

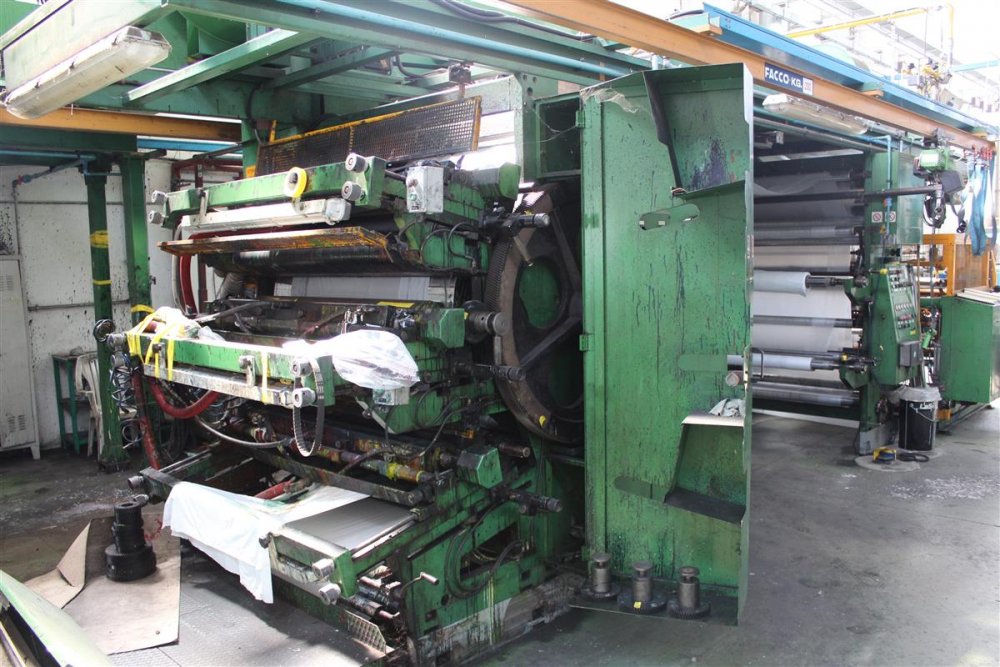

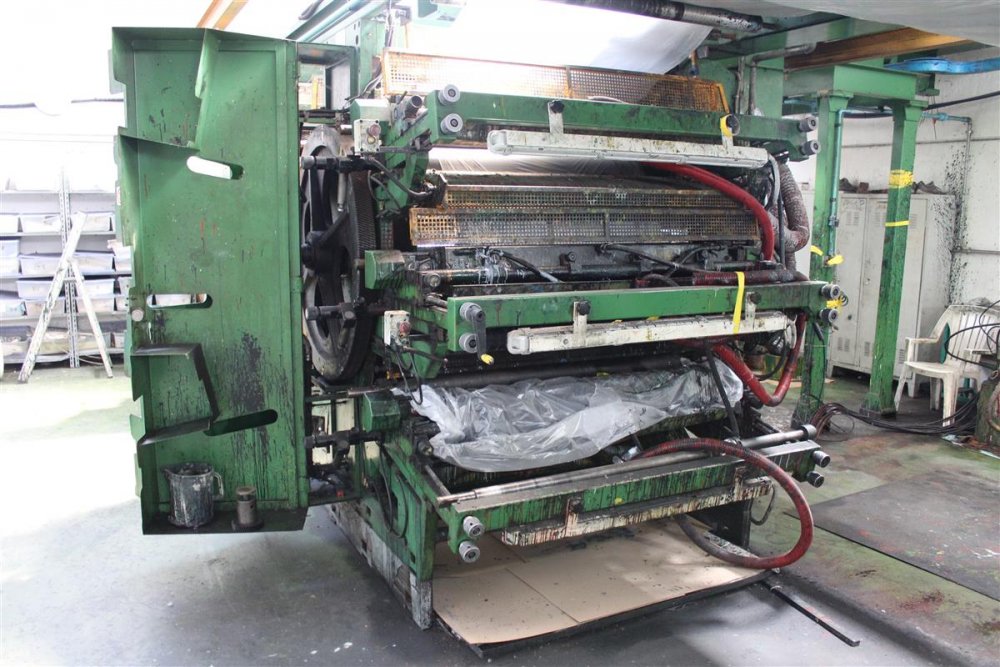

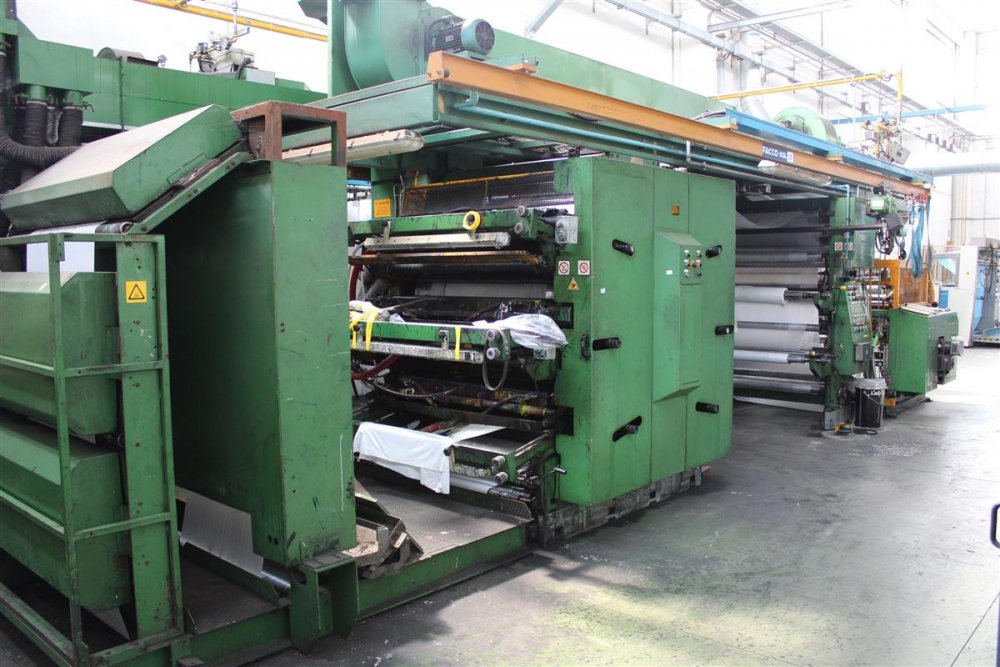

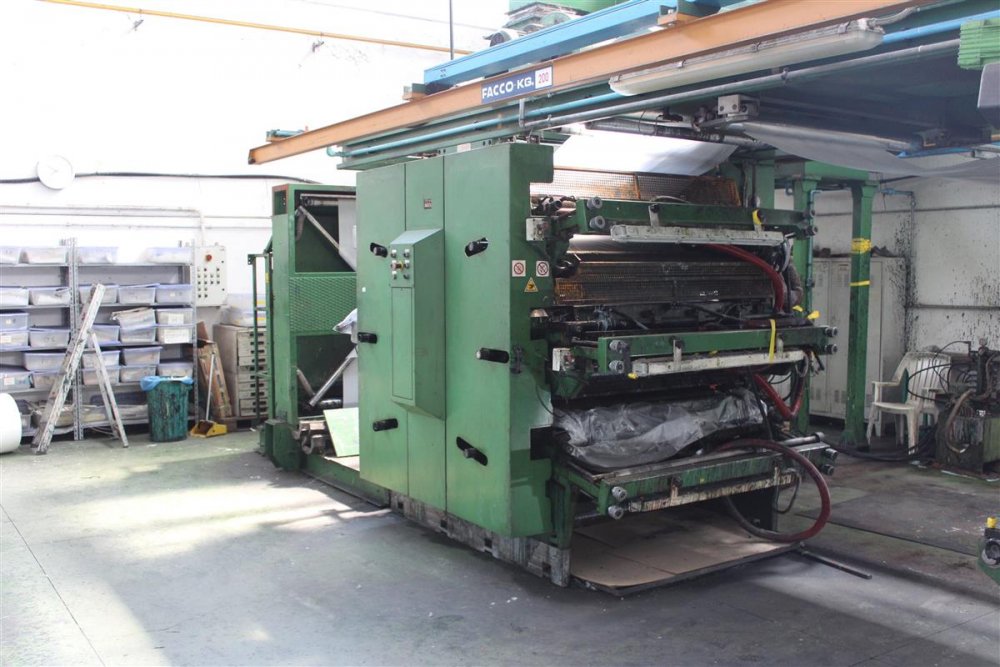

TCM Midi 50 - 114 Flexo central drum printing press 6 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL965
Manufacturer
TCM
Modello
Midi 50 - 114
Year
1998
Number of colors
6
Print possibilityes
6+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
No

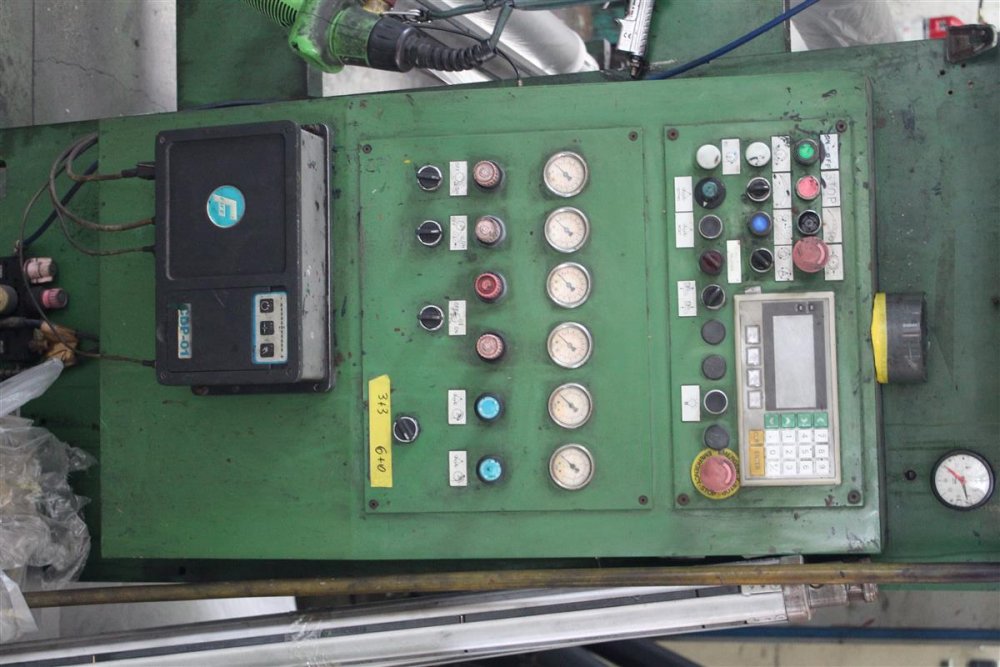

Computer supervision
Yes
Web width (mm)
1350
Print width (mm)
1300
Min print repeat (mm)
300
Max print repeat (mm)
800
Unwinder type
Doiuble Bracket
Max reel diameter unwinder (mm)
1000

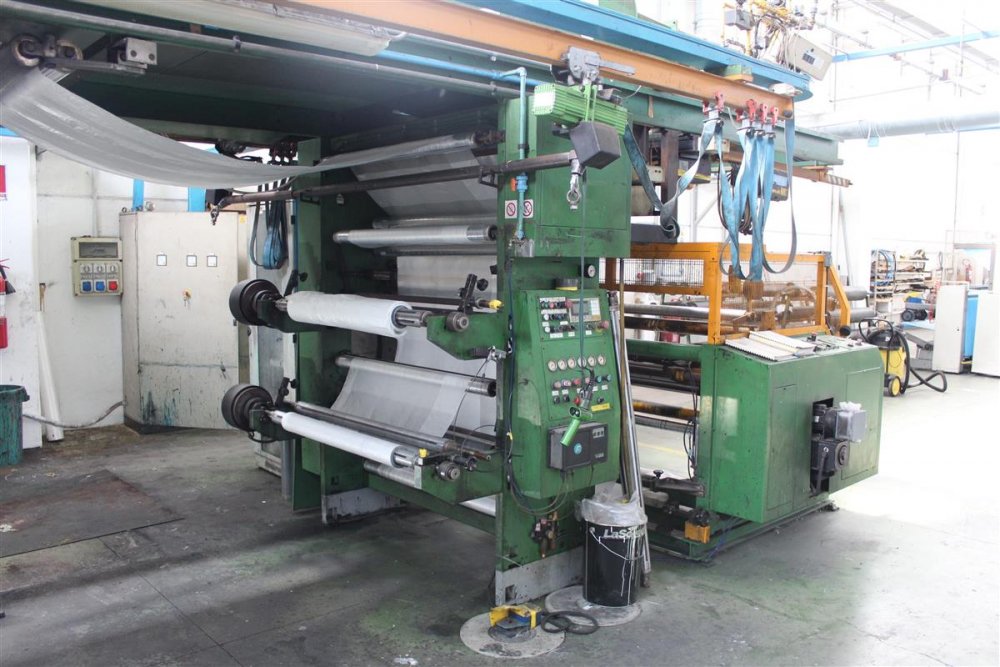

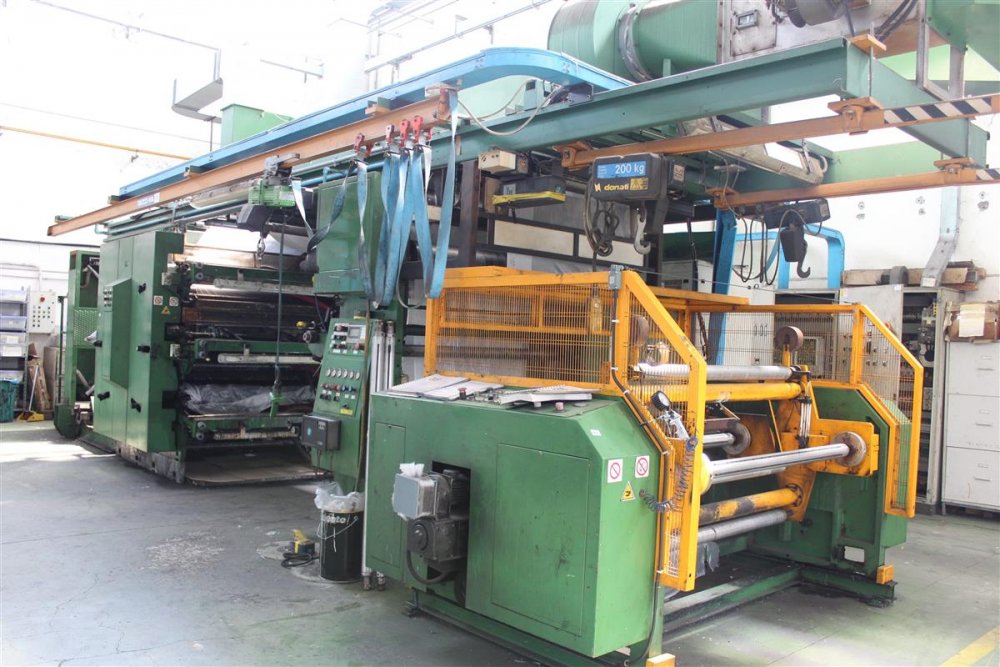

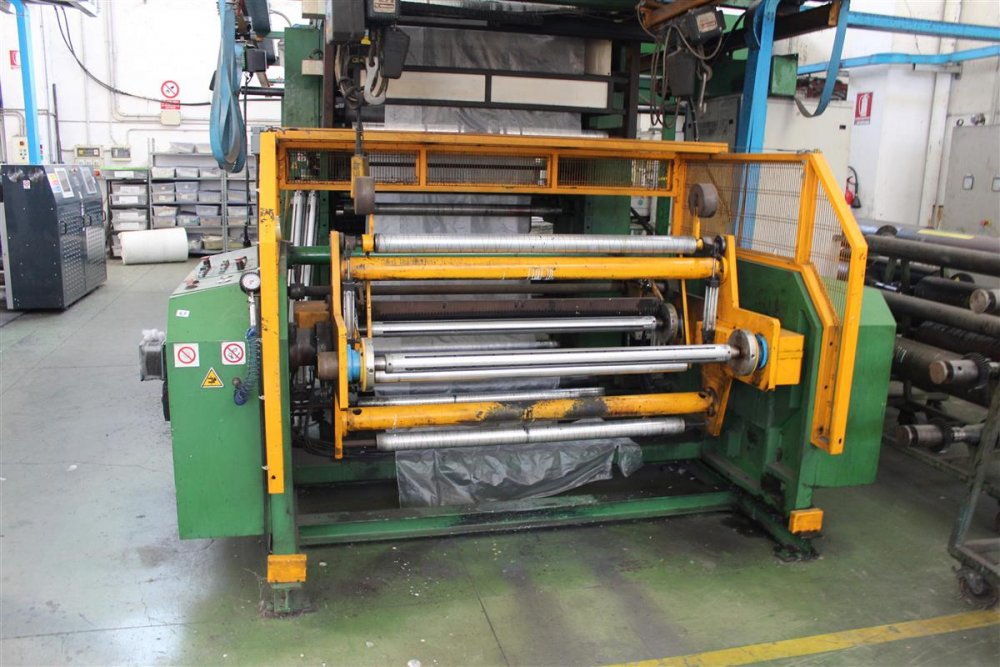

Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800

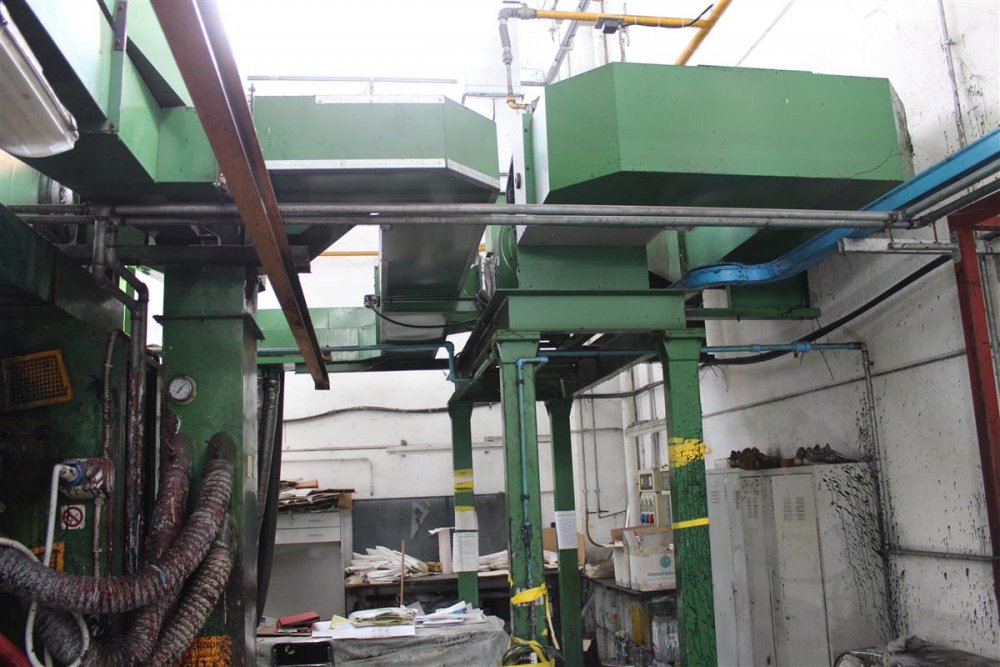

Drying
2 zones , 1 Gas burners
Videocamera
yes Fife
Web guides
In and out
Inking system
ceramic anilox + doctor blade chamber
Anilox
yes 6
Print cylinders
30
Note

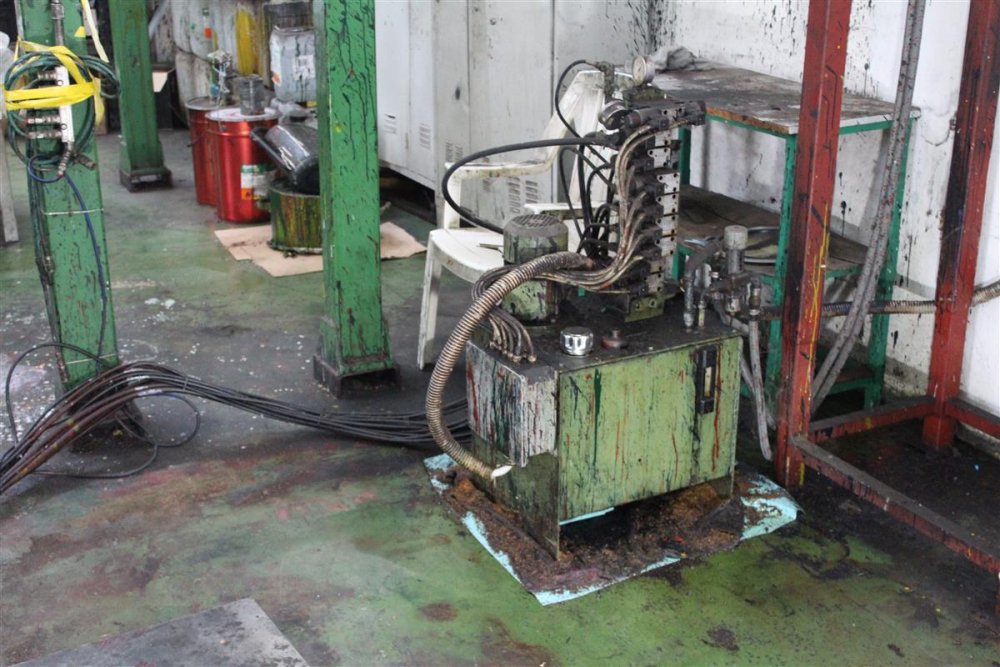

Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Heig ht 3540 mm
Machine Code FL965
Manufacturer TCM
Modello Midi 50 - 114
Year 1998
Number of colors 6
Print possibilityes 6+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system No
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 300
Max print repeat (mm) 800
Unwinder type Doiuble Bracket
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 1 Gas burners
Videocamera yes Fife
Web guides In and out
Inking system ceramic anilox + doctor blade chamber
Anilox yes 6
Print cylinders 30
Note Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Heig ht 3540 mm
