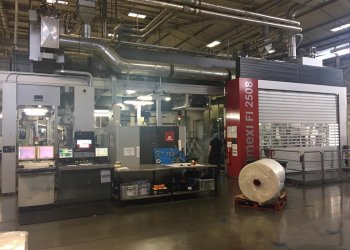

COMEXI FI2508 flexographic printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL716
Manufacturer
COMEXI
Modello
FI2508
Year
2006
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1470
Print width (mm)
1420
Min print repeat (mm)
400
Max print repeat (mm)
1350
Unwinder type
AUTOMATIC TURRET
Max reel diameter unwinder (mm)
1000
Rewinder type
AUTOMATIC TURRET
Max reel diameter rewinder (mm)
1000
Drying
Thermaoil( central system) and gas
Videocamera
AVT Jupiter
Corona treatment
yes Softal
Web guides
2
Vyscosity control
yes automatic
Washing system
AUTOMATIC
Inking system
closed chamber doctor blades
Anilox
26 ceramic anilox sleeves as follows 1x 65 l/ cm-HVP vol.14 cm3/m2 ;1x 100 l/cm,-vol.10,2 cm3/m2 ; 5 x 140 l/ cm Vol 8,05 cm3/m2 ; 2 x 140 L/cm,- vol 8,2 ; 1X 160 L/CM hvp VOL.14,0 ; 3 x 215 ll/cm- vol.6,0 ; 1 X 140 L/CM-VOL.6,0; 2 x 215 l/ cm- vol.6,3 ; 8 x 300 l/ cm -vol.4,,2 ;,6 x 360 l/cm.
Print Sleeves
TOTALLY 64 SLEEVES 15x 400 mm, 7x 410 , 8x 440 , 8x 460 ; 7x 520 ; 1x 540 ; 1x 610 ; 8x 800
Print cylinders
Carbon fiber Carriers 8x 480mm; 8x 580mm; 8x680 ; 8x 880 ; 8x 980 ; 8 x 1180 .
Note
temperature control unit for CI 4 spare chamber doctor blades spare ink tanks and lids ink pumps div. sleeves div. anilox rollers Longitudinal and side register motorized Automatic register control Electr. container
Machine Code FL716
Manufacturer COMEXI
Modello FI2508
Year 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1470
Print width (mm) 1420
Min print repeat (mm) 400
Max print repeat (mm) 1350
Unwinder type AUTOMATIC TURRET
Max reel diameter unwinder (mm) 1000
Rewinder type AUTOMATIC TURRET
Max reel diameter rewinder (mm) 1000
Drying Thermaoil( central system) and gas
Videocamera AVT Jupiter
Corona treatment yes Softal
Web guides 2
Vyscosity control yes automatic
Washing system AUTOMATIC
Inking system closed chamber doctor blades
Anilox 26 ceramic anilox sleeves as follows 1x 65 l/ cm-HVP vol.14 cm3/m2 ;1x 100 l/cm,-vol.10,2 cm3/m2 ; 5 x 140 l/ cm Vol 8,05 cm3/m2 ; 2 x 140 L/cm,- vol 8,2 ; 1X 160 L/CM hvp VOL.14,0 ; 3 x 215 ll/cm- vol.6,0 ; 1 X 140 L/CM-VOL.6,0; 2 x 215 l/ cm- vol.6,3 ; 8 x 300 l/ cm -vol.4,,2 ;,6 x 360 l/cm.
Print Sleeves TOTALLY 64 SLEEVES 15x 400 mm, 7x 410 , 8x 440 , 8x 460 ; 7x 520 ; 1x 540 ; 1x 610 ; 8x 800
Print cylinders Carbon fiber Carriers 8x 480mm; 8x 580mm; 8x680 ; 8x 880 ; 8x 980 ; 8 x 1180 .
Note temperature control unit for CI 4 spare chamber doctor blades spare ink tanks and lids ink pumps div. sleeves div. anilox rollers Longitudinal and side register motorized Automatic register control Electr. container
** SOLD **
