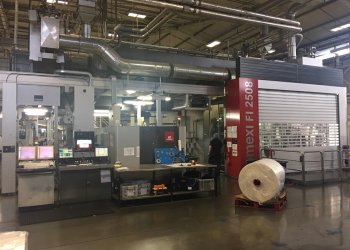

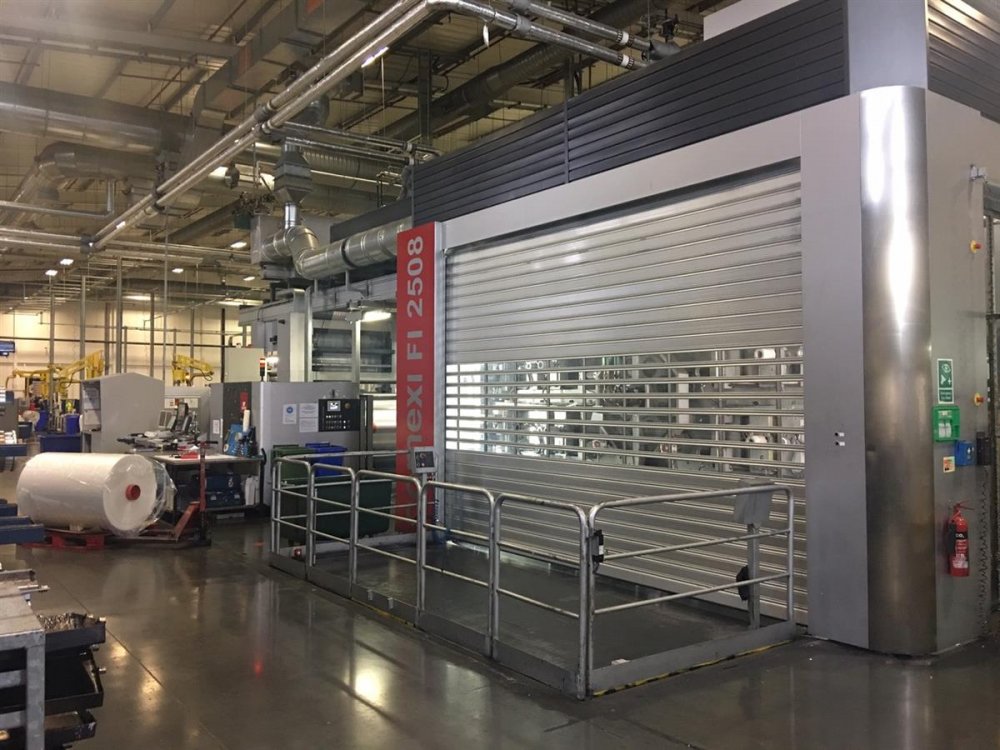

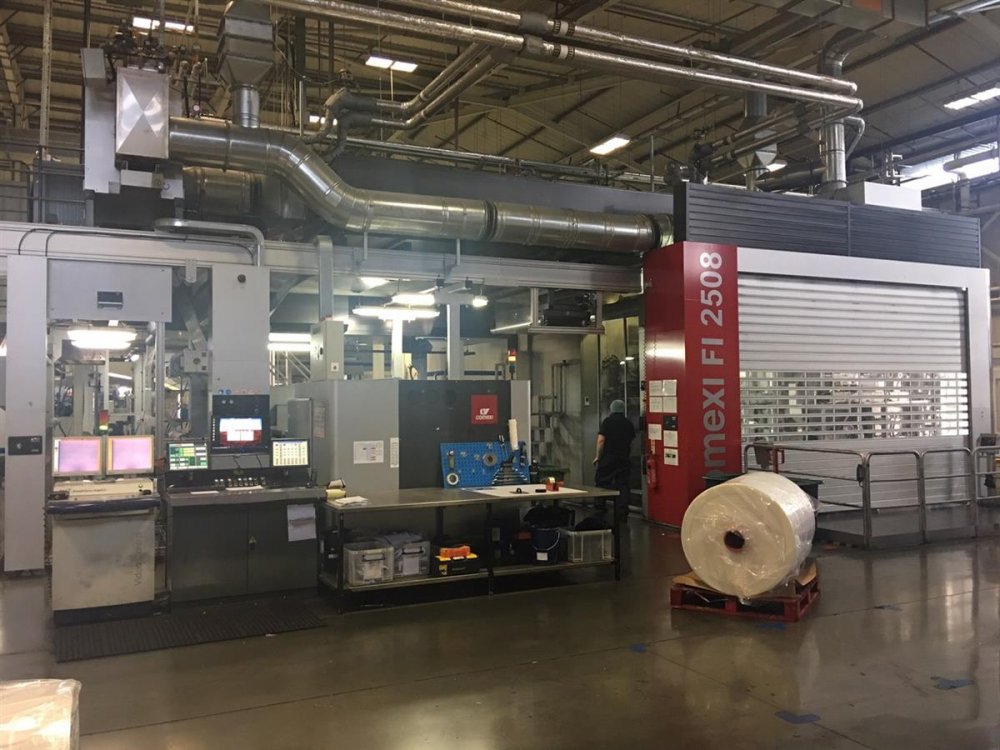

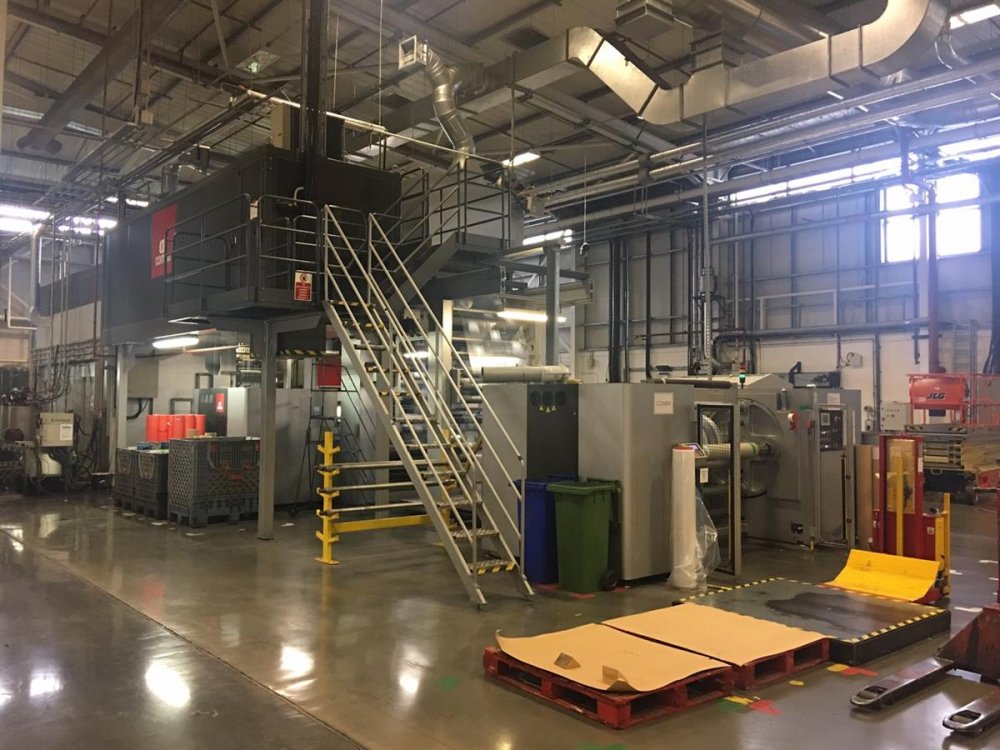

COMEXI FI2508 flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL716
Manufacturer COMEXI
Model FI2508
Year 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1470
Print width (mm) 1420
Min print repeat (mm) 400
Max print repeat (mm) 1350

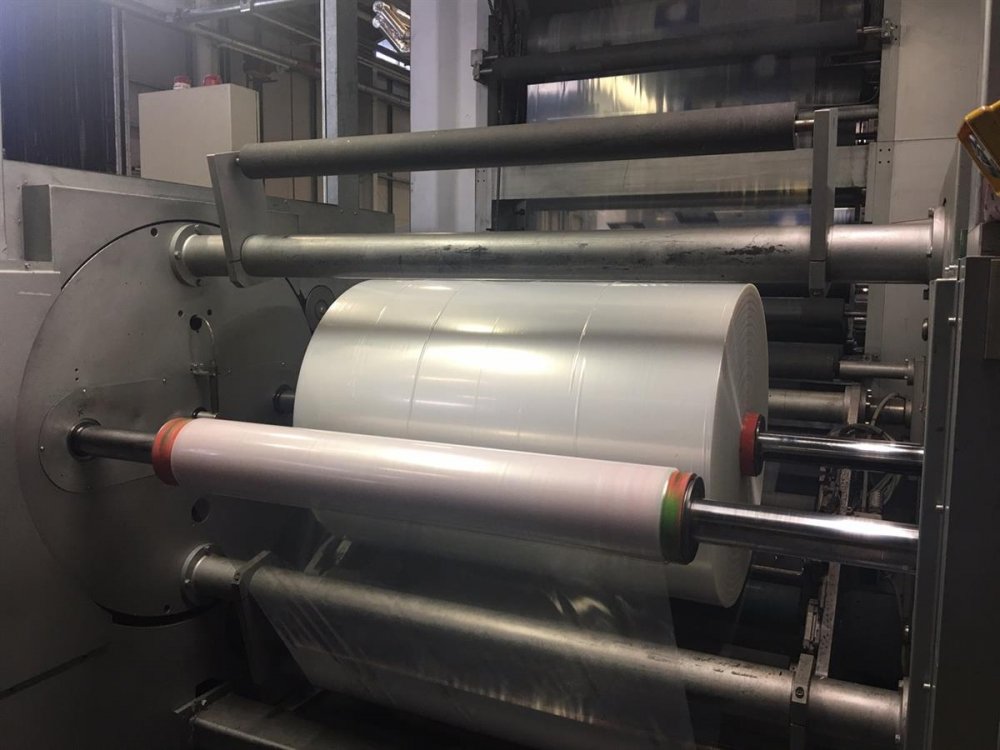

Unwinder type AUTOMATIC TURRET
Max reel diameter unwinder (mm) 1000
Rewinder type AUTOMATIC TURRET
Max reel diameter rewinder (mm) 1000
Drying Thermaoil( central system) and gas
Videocamera AVT Jupiter
Corona treatment yes Softal
Web guides 2
Vyscosity control yes automatic
Washing system AUTOMATIC
Inking system closed chamber doctor blades
Anilox 26 ceramic anilox sleeves as follows 1x 65 l/ cm-HVP vol.14 cm3/m2 ;1x 100 l/cm,-vol.10,2 cm3/m2 ; 5 x 140 l/ cm Vol 8,05 cm3/m2 ; 2 x 140 L/cm,- vol 8,2 ; 1X 160 L/CM hvp VOL.14,0 ; 3 x 215 ll/cm- vol.6,0 ; 1 X 140 L/CM-VOL.6,0; 2 x 215 l/ cm- vol.6,3 ; 8 x 300 l/ cm -vol.4,,2 ;,6 x 360 l/cm.
Print Sleeves TOTALLY 64 SLEEVES 15x 400 mm, 7x 410 , 8x 440 , 8x 460 ; 7x 520 ; 1x 540 ; 1x 610 ; 8x 800
Print cylinders Carbon fiber Carriers 8x 480mm; 8x 580mm; 8x680 ; 8x 880 ; 8x 980 ; 8 x 1180 .
Additional information temperature control unit for CI 4 spare chamber doctor blades spare ink tanks and lids ink pumps div. sleeves div. anilox rollers Longitudinal and side register motorized Automatic register control Electr. container

** SOLD **
