** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one

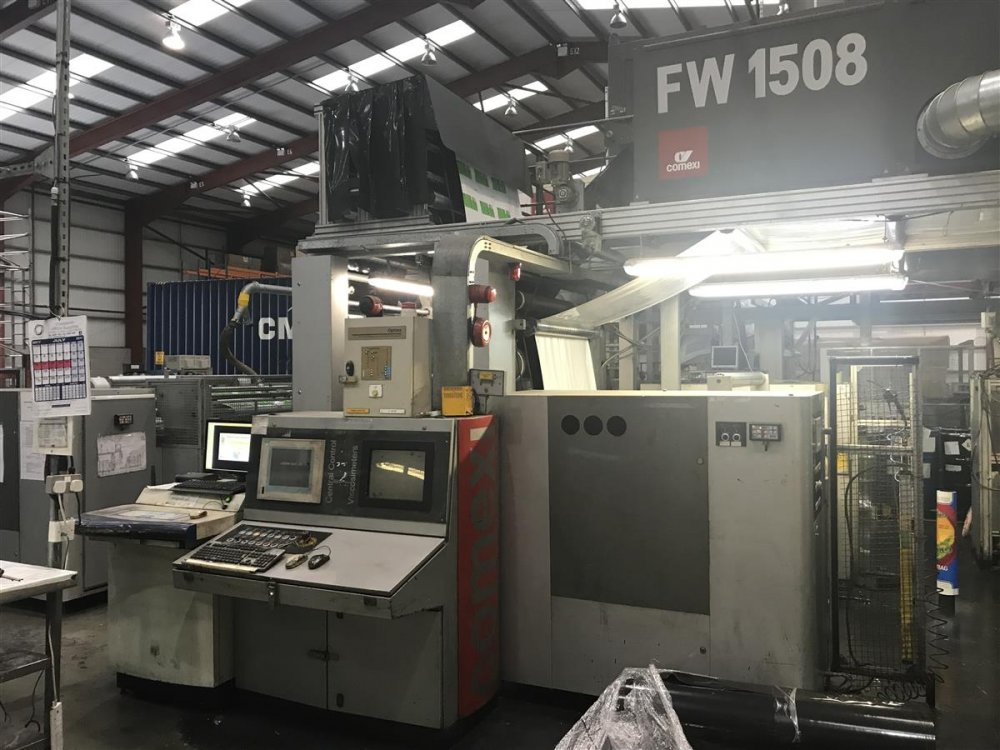

- Machine Code
- FL736
- Manufacturer
- COMEXI
- Modello
- FW 1508
- Year
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800

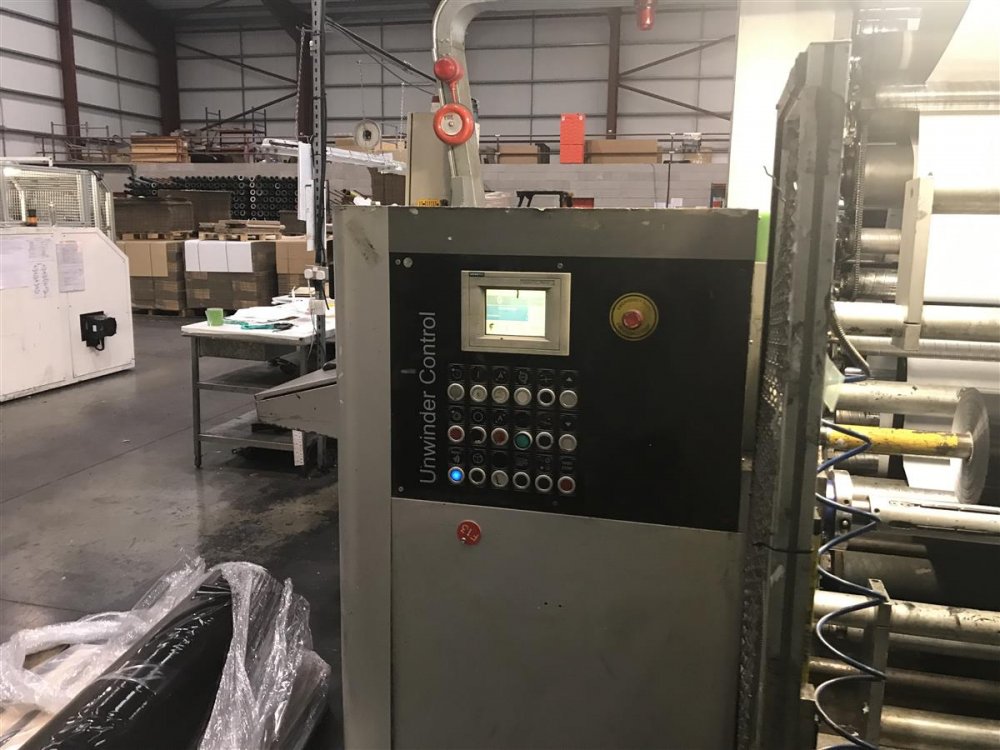

- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zone dryingr. 4 fans 2 gas burners. Draying tunnel 4 m length
- Videocamera
- AVT Jupiter
- Web guides
- BST
- Vyscosity control
- INELME
- Washing system
- AUTOMATIC
- Inking system
- Closed chambers doctro blades
- Anilox
- totally 15 ceramic anilox sleeves
- Print Sleeves
- tot 64: 355x8,365x8, 490x8, 500x8, 520x8, 540x8, 570x8, 610x8
- Print Sleeves
- 8 X355,365,490,500,520,540,570,610mm
- Note
| Machine Code | FL736 |
| Manufacturer | COMEXI |
| Modello | FW 1508 |
| Year | 2005 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zone dryingr. 4 fans 2 gas burners. Draying tunnel 4 m length |
| Videocamera | AVT Jupiter |
| Web guides | BST |
| Vyscosity control | INELME |
| Washing system | AUTOMATIC |
| Inking system | Closed chambers doctro blades |
| Anilox | totally 15 ceramic anilox sleeves |
| Print Sleeves | tot 64: 355x8,365x8, 490x8, 500x8, 520x8, 540x8, 570x8, 610x8 |
| Print Sleeves | 8 X355,365,490,500,520,540,570,610mm |
| Note |
