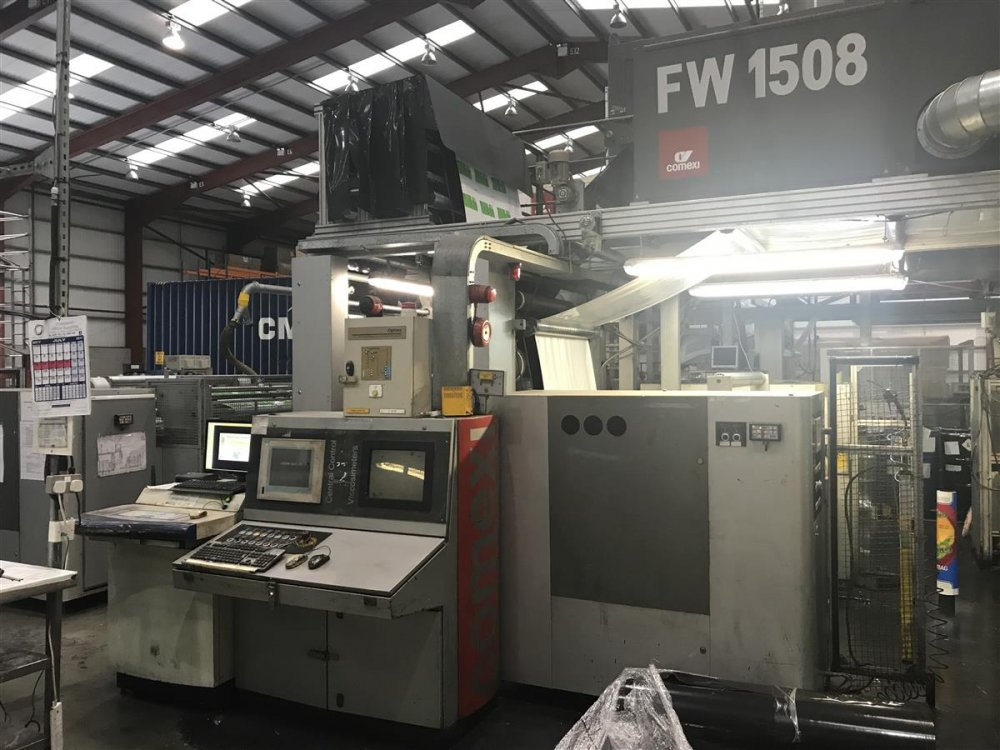

COMEXI FW 1508 Flexo central drum printing press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL736
Manufacturer
COMEXI
Model
FW 1508
Year
2005
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
330
Max print repeat (mm)
800

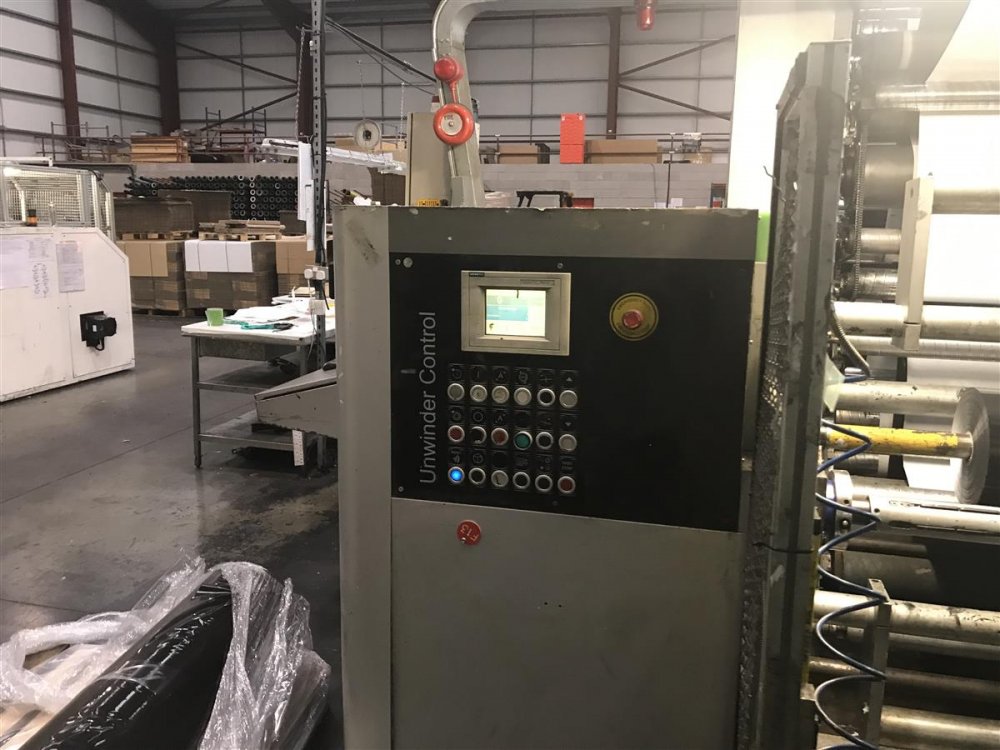

Unwinder type
TURRET
Max reel diameter unwinder (mm)
800
Rewinder type
TURRET
Max reel diameter rewinder (mm)
800
Drying
2 zone dryingr. 4 fans 2 gas burners. Draying tunnel 4 m length
Videocamera
AVT Jupiter
Web guides
BST
Vyscosity control
INELME
Washing system
AUTOMATIC
Inking system
Closed chambers doctro blades
Anilox
totally 15 ceramic anilox sleeves
Print Sleeves
tot 64: 355x8,365x8, 490x8, 500x8, 520x8, 540x8, 570x8, 610x8
Print Sleeves
8 X355,365,490,500,520,540,570,610mm
Additional information
Machine Code FL736
Manufacturer COMEXI
Model FW 1508
Year 2005
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 330
Max print repeat (mm) 800
Unwinder type TURRET
Max reel diameter unwinder (mm) 800
Rewinder type TURRET
Max reel diameter rewinder (mm) 800
Drying 2 zone dryingr. 4 fans 2 gas burners. Draying tunnel 4 m length
Videocamera AVT Jupiter
Web guides BST
Vyscosity control INELME
Washing system AUTOMATIC
Inking system Closed chambers doctro blades
Anilox totally 15 ceramic anilox sleeves
Print Sleeves tot 64: 355x8,365x8, 490x8, 500x8, 520x8, 540x8, 570x8, 610x8
Print Sleeves 8 X355,365,490,500,520,540,570,610mm
Additional information
