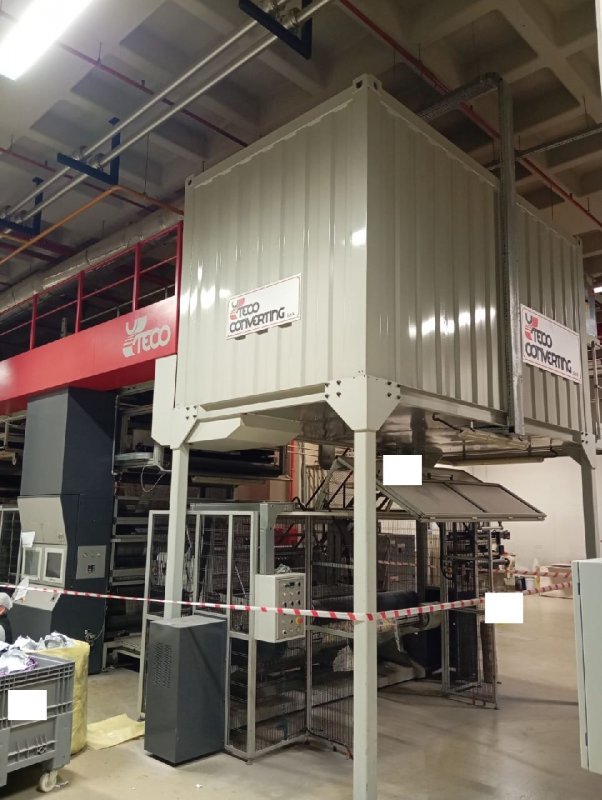

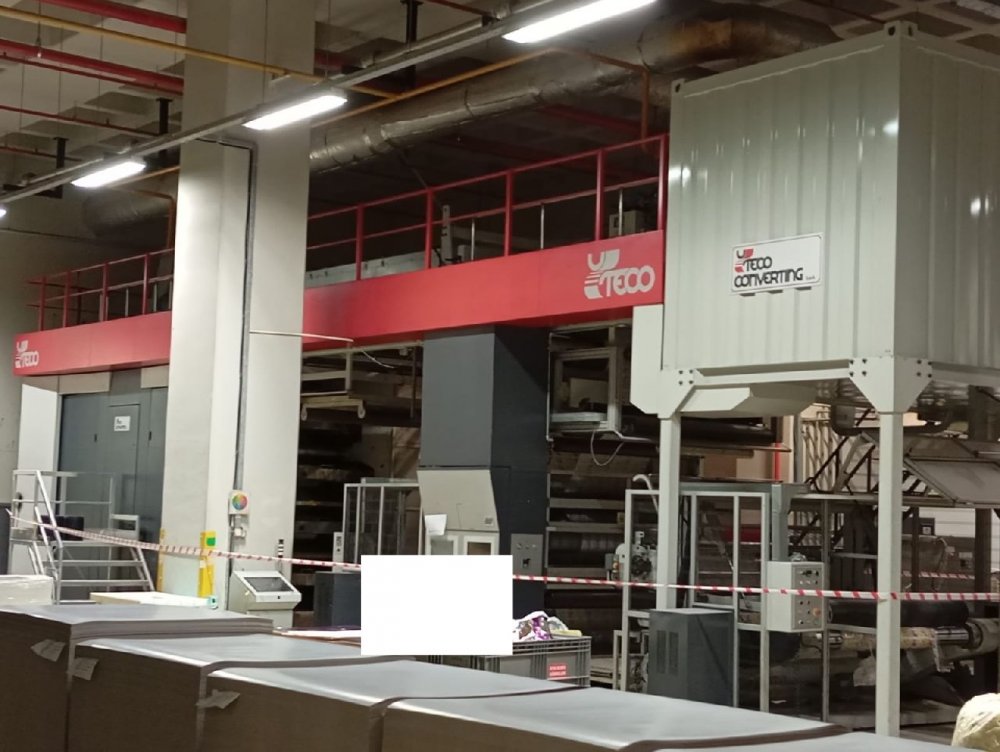

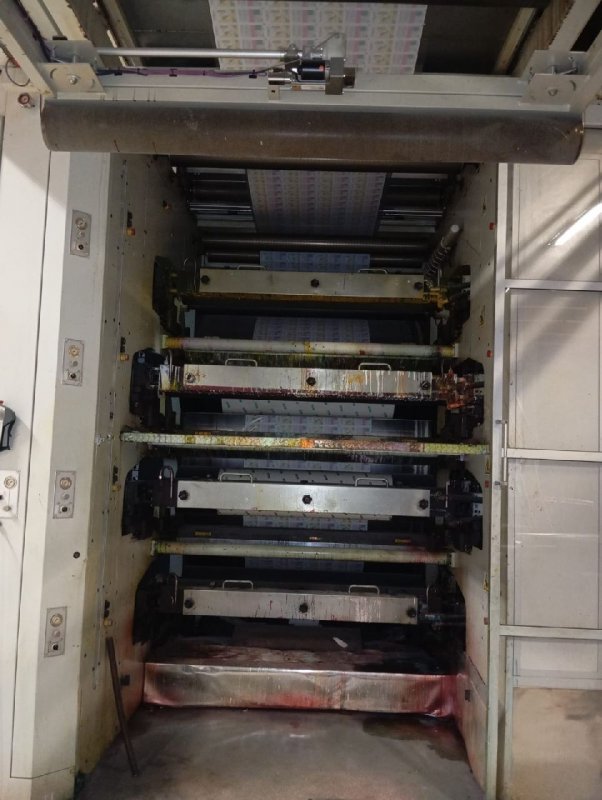

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1200
- Manufacturer
- UTECO
- Modello
- ONYX
- Year
- 2012
- Number of colors
- 8
- Print possibilityes
- 8 + 0
- Overhaul/renovation
- no
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1850
- Print width (mm)
- 1800
- Min print repeat (mm)
- 500
- Max print repeat (mm)
- 1250
- Unwinder type
- Shaftless
- Max reel diameter unwinder (mm)
- 1500
- Rewinder type
- Shaftless
- Max reel diameter rewinder (mm)
- 1500
- Drying
- Gas
- Videocamera
- Grafikontrol Grafikscan 2100
- Corona treatment
- NO
- Web guides
- OPG edge guide
- Vyscosity control
- No
- Washing system
- Yes
- Anilox
- 12
- Note
- Materials to be printed : - paper - board 60 to 260 gsm - PP 20 micron - HDPE 20 micron - LDPE 40 micron - BOPP 10 micron
| Machine Code | FL1200 |
| Manufacturer | UTECO |
| Modello | ONYX |
| Year | 2012 |
| Number of colors | 8 |
| Print possibilityes | 8 + 0 |
| Overhaul/renovation | no |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1850 |
| Print width (mm) | 1800 |
| Min print repeat (mm) | 500 |
| Max print repeat (mm) | 1250 |
| Unwinder type | Shaftless |
| Max reel diameter unwinder (mm) | 1500 |
| Rewinder type | Shaftless |
| Max reel diameter rewinder (mm) | 1500 |
| Drying | Gas |
| Videocamera | Grafikontrol Grafikscan 2100 |
| Corona treatment | NO |
| Web guides | OPG edge guide |
| Vyscosity control | No |
| Washing system | Yes |
| Anilox | 12 |
| Note | Materials to be printed : - paper - board 60 to 260 gsm - PP 20 micron - HDPE 20 micron - LDPE 40 micron - BOPP 10 micron |
NOVAGRAF FL 8000
-
Machine Code: FL1143
-
Year: 2007
-
Web width (mm): 1350
UTECO TOPAZ 808 GL
-
Machine Code: FL1006
-
Year: 2014
-
Web width (mm): 650
UTECO EMERALD 825
-
Machine Code: FL1169
-
Year: 2001
-
Web width (mm): 850

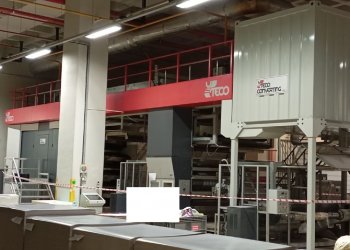

UTECO ONYX 876
-
