** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL689
- Manufacturer
- COMEXI
- Modello

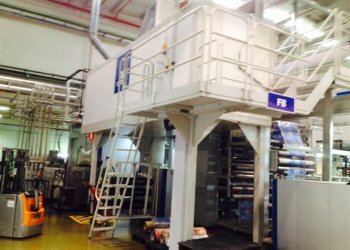

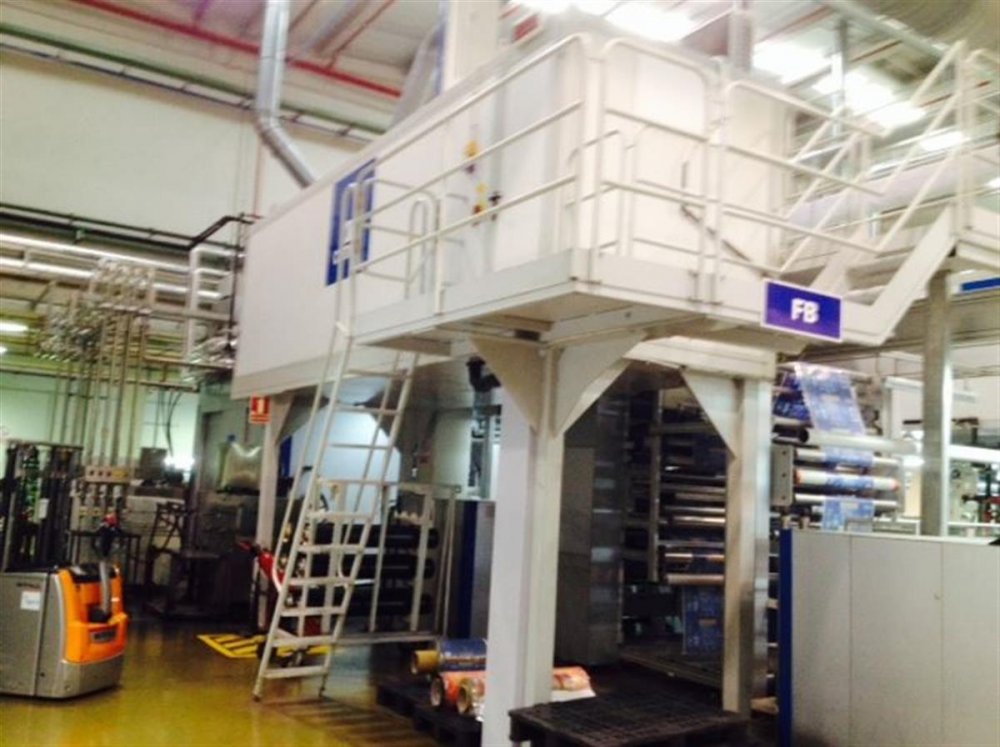

- FB 2108 CNC-GL
- Year
- 2004
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

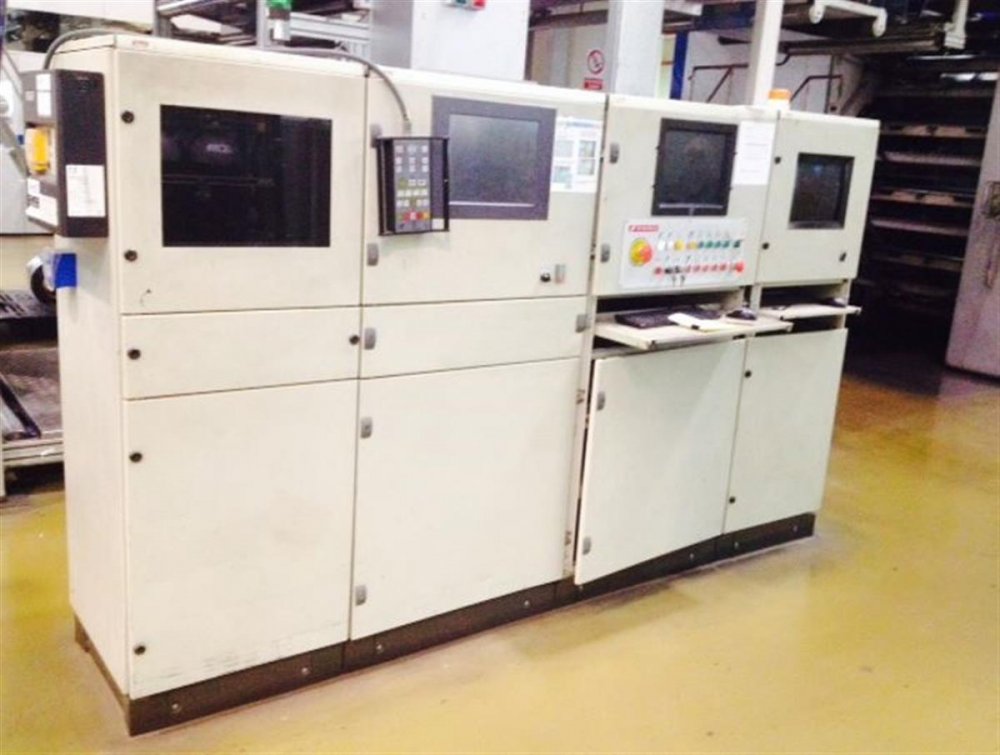

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- Automatic Turret auto splice double direction
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Automatic Turret auto splice double direction
- Max reel diameter rewinder (mm)
- 800
- Drying
- Two zones four fans - -Diathermic oil heat exchanger
- Videocamera
- BST Genius
- Corona treatment
- Softal
- Web guides
- n° 2 BST
- Vyscosity control
- n° 8 vyscosimeters Inelme
- Washing system
- Self cleaning: Enviroxi
- Inking system
- Closed cha,ber doctor blades
- Anilox
- 13 ceramic anilox sleeves as follows :360 l/ cm -vol. 3,8 ; 340 l/ cm , vol.4,7 ; 320 - 4,5 ; 320 -4,5 ; 300- 4,5 ; 300 - 5,4 ; 280 - 4,9 ; 260 - 5,2 ;
- Print Sleeves
- 30 sets of 8 sleeves each of following repeats 350 mm , 360 , 370 , 380 , 390 , 400 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 530 , 540 , 560 , 570 , 580 , 600 , 610 , 620 , 640 , 650 , 660 , 680 , 730
| Machine Code | FL689 |
| Manufacturer | COMEXI |
| Modello | FB 2108 CNC-GL |
| Year | 2004 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Automatic Turret auto splice double direction |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Automatic Turret auto splice double direction |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Two zones four fans - -Diathermic oil heat exchanger |
| Videocamera | BST Genius |
| Corona treatment | Softal |
| Web guides | n° 2 BST |
| Vyscosity control | n° 8 vyscosimeters Inelme |
| Washing system | Self cleaning: Enviroxi |
| Inking system | Closed cha,ber doctor blades |
| Anilox | 13 ceramic anilox sleeves as follows :360 l/ cm -vol. 3,8 ; 340 l/ cm , vol.4,7 ; 320 - 4,5 ; 320 -4,5 ; 300- 4,5 ; 300 - 5,4 ; 280 - 4,9 ; 260 - 5,2 ; |
| Print Sleeves | 30 sets of 8 sleeves each of following repeats 350 mm , 360 , 370 , 380 , 390 , 400 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 530 , 540 , 560 , 570 , 580 , 600 , 610 , 620 , 640 , 650 , 660 , 680 , 730 |
