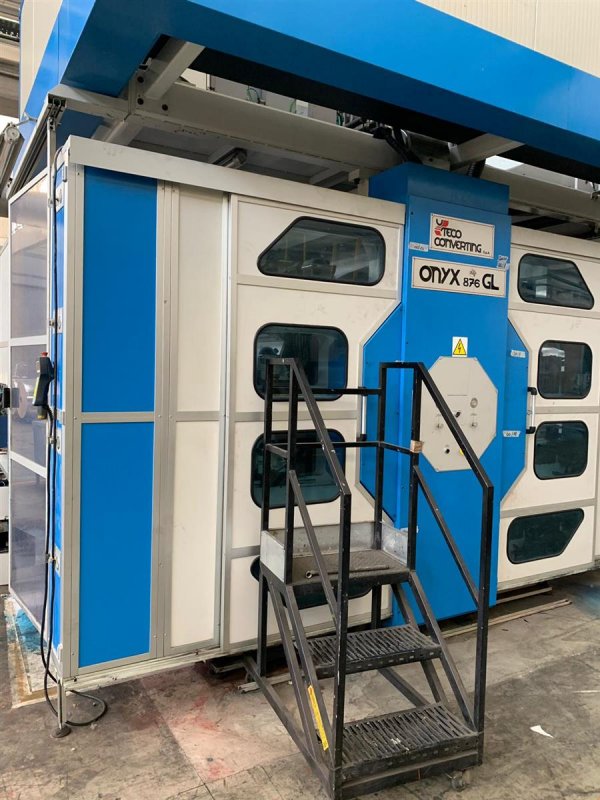

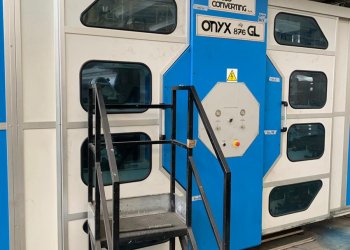

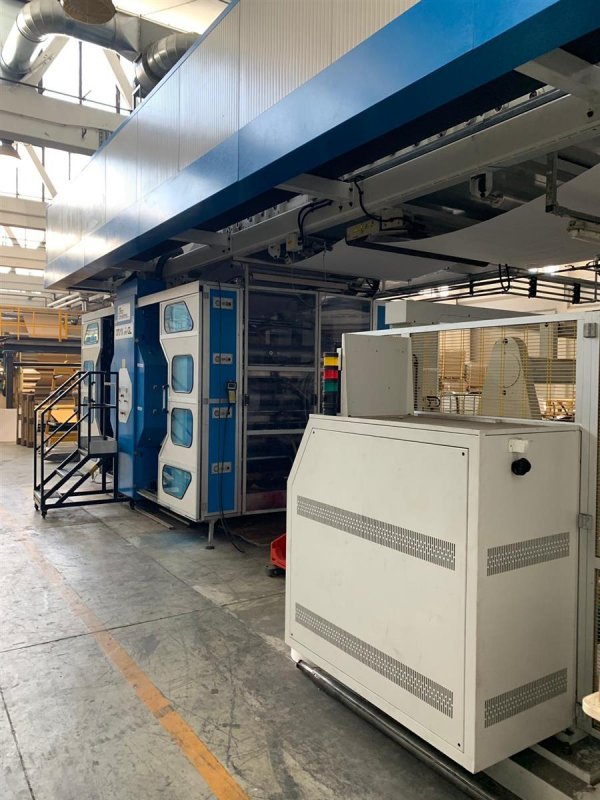

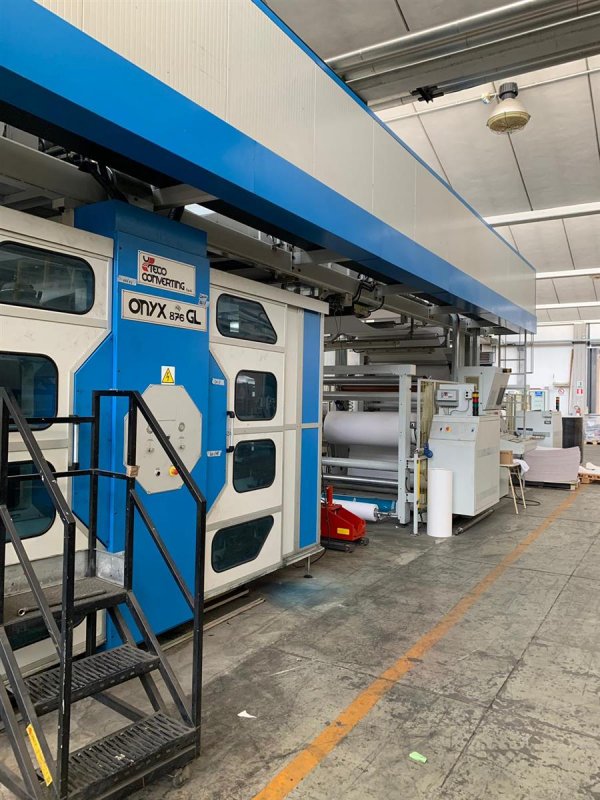

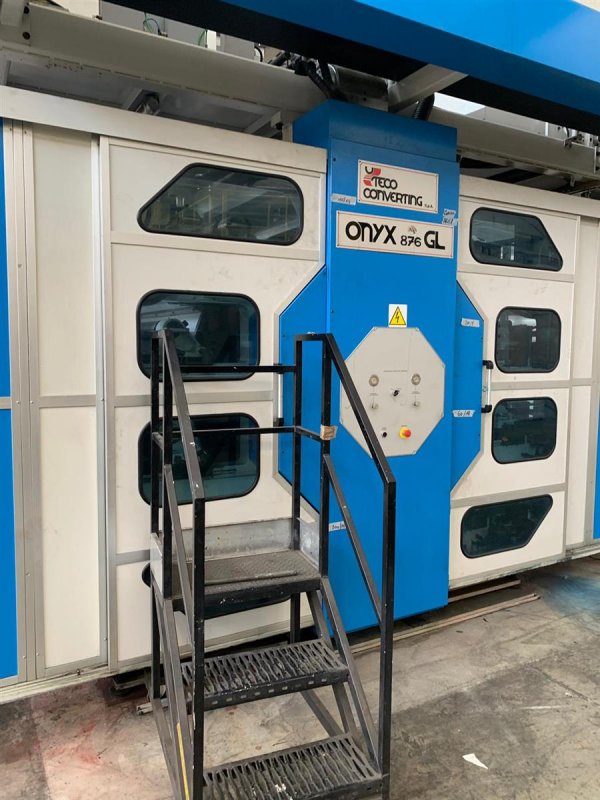

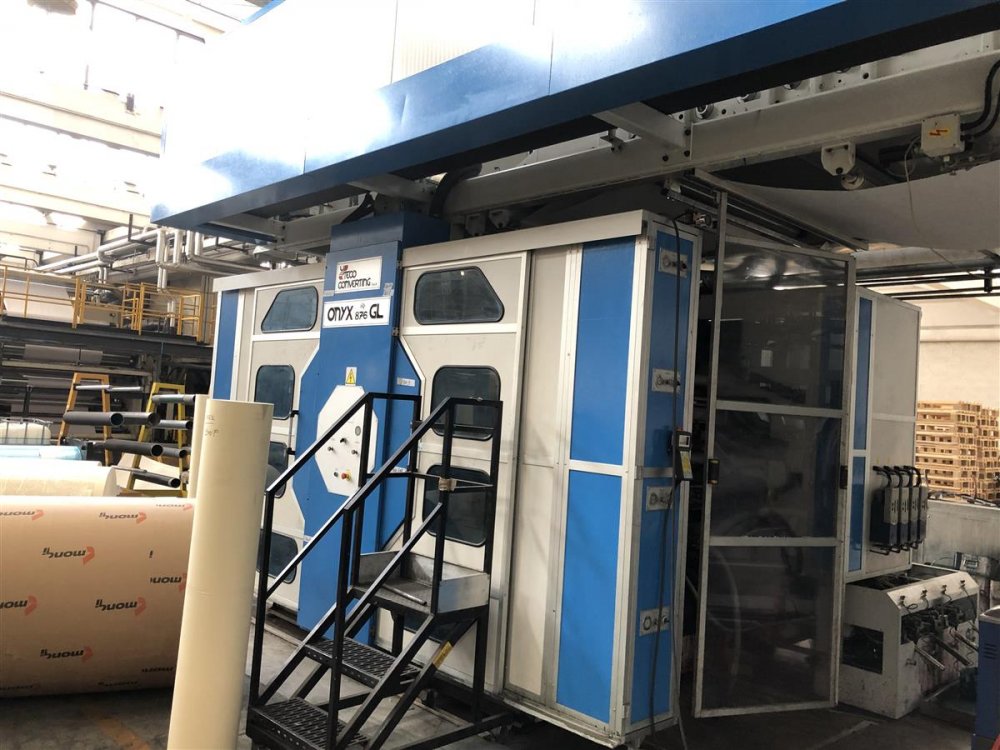

UTECO ONYX 876 GL Flexo central drum printing press 8 colors ** SOLD ** Ask more informations about a similar one
Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Machine Code | FL727 |
Manufacturer | UTECO |
Model | ONYX 876 GL |
Year | 2007 |
Number of colors | 8 |
Print possibilities | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |

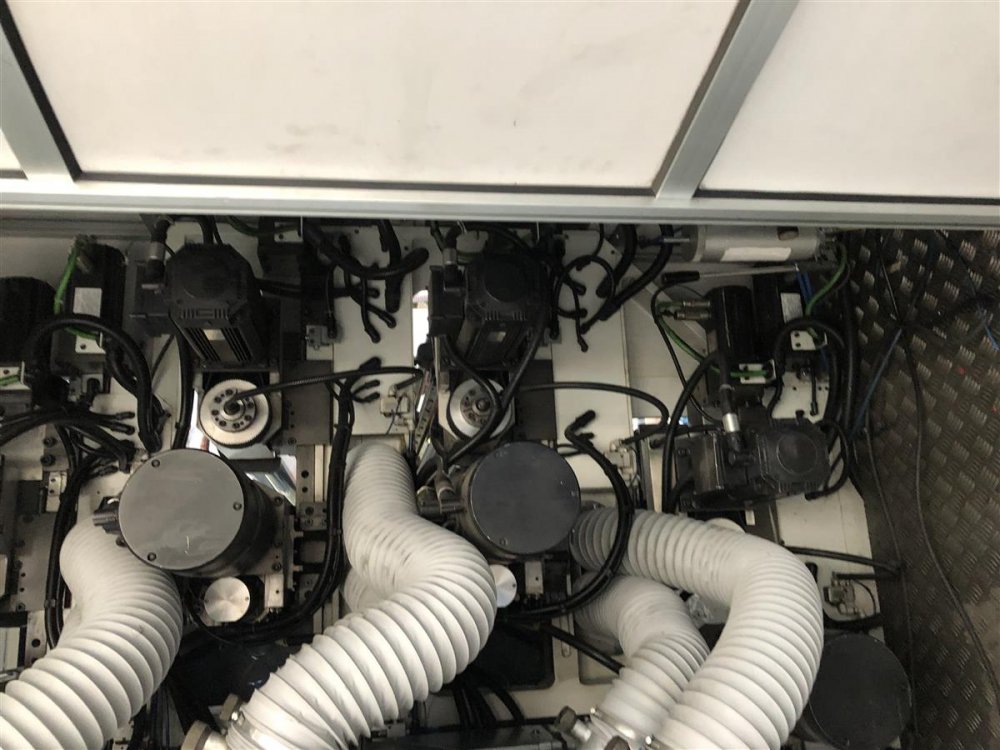

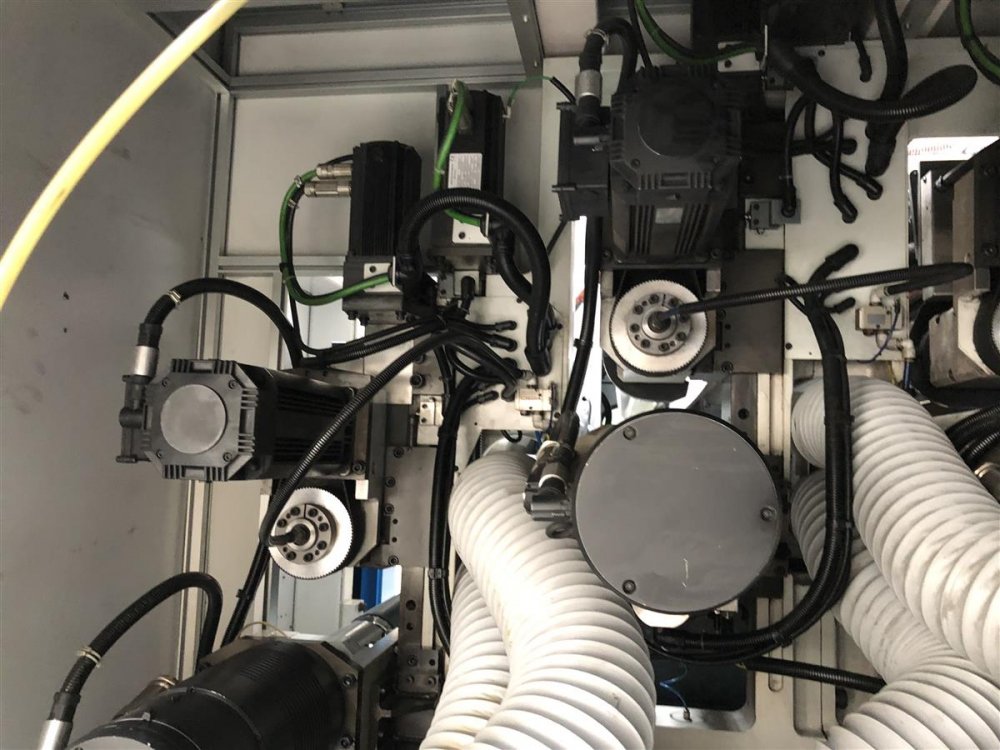

4 motor per deck CNC position system | Yes |

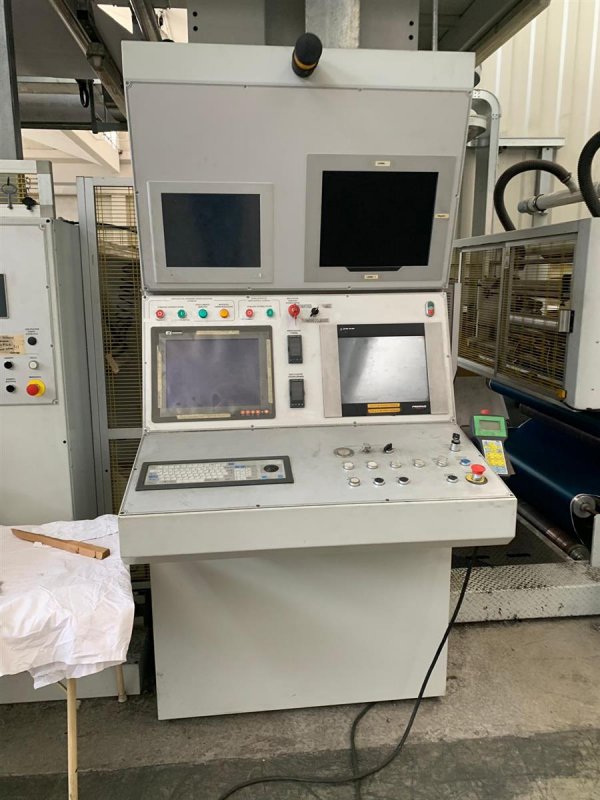

Computer supervision | Yes |
Web width (mm) | 1450 |
Print width (mm) | 1400 |
Min print repeat (mm) | 380 |
Max print repeat (mm) | 850 |

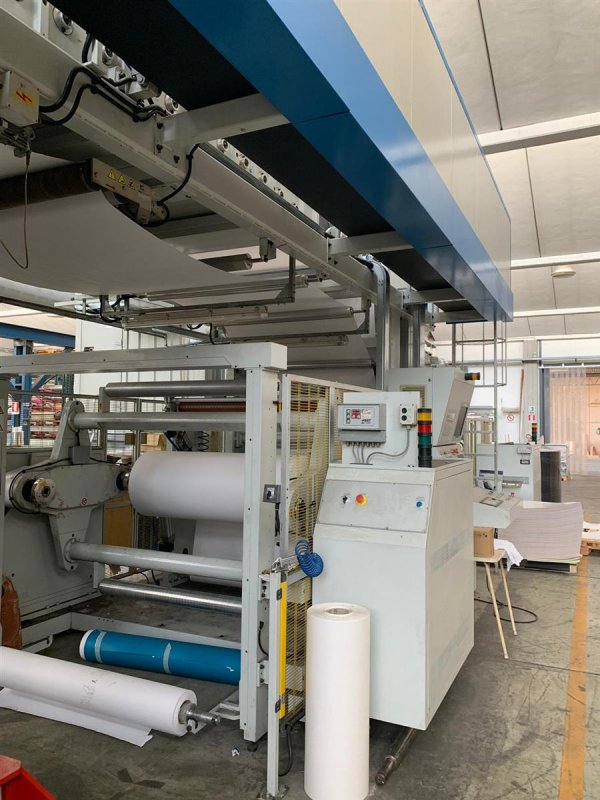

Unwinder type | Turret Automatic flying splice - roll loading system |
Max reel diameter unwinder (mm) | 1000 |

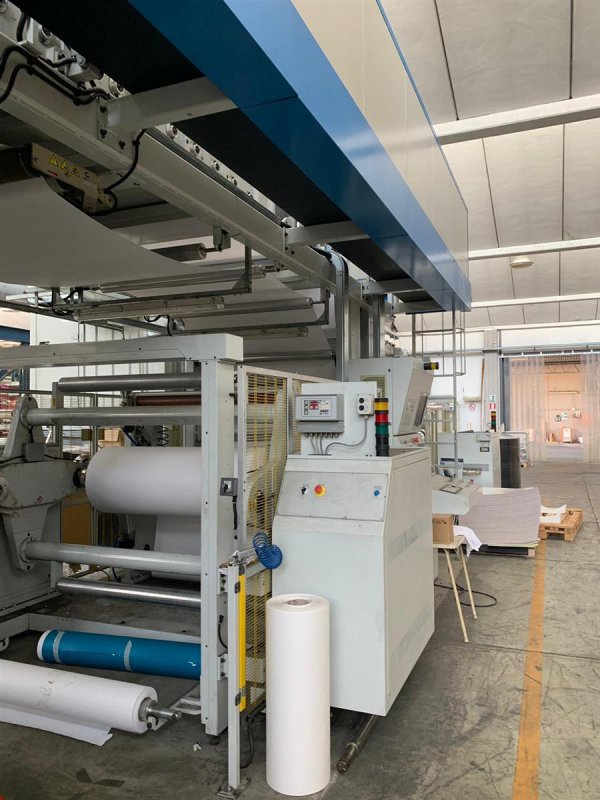

Rewinder type | Turret Automatic flying splice - roll un loading system |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system Zellweger |
Videocamera | BST Premius Digital 3 ccd with smart register system |
Web guides | BST EKR 1000 in and out |

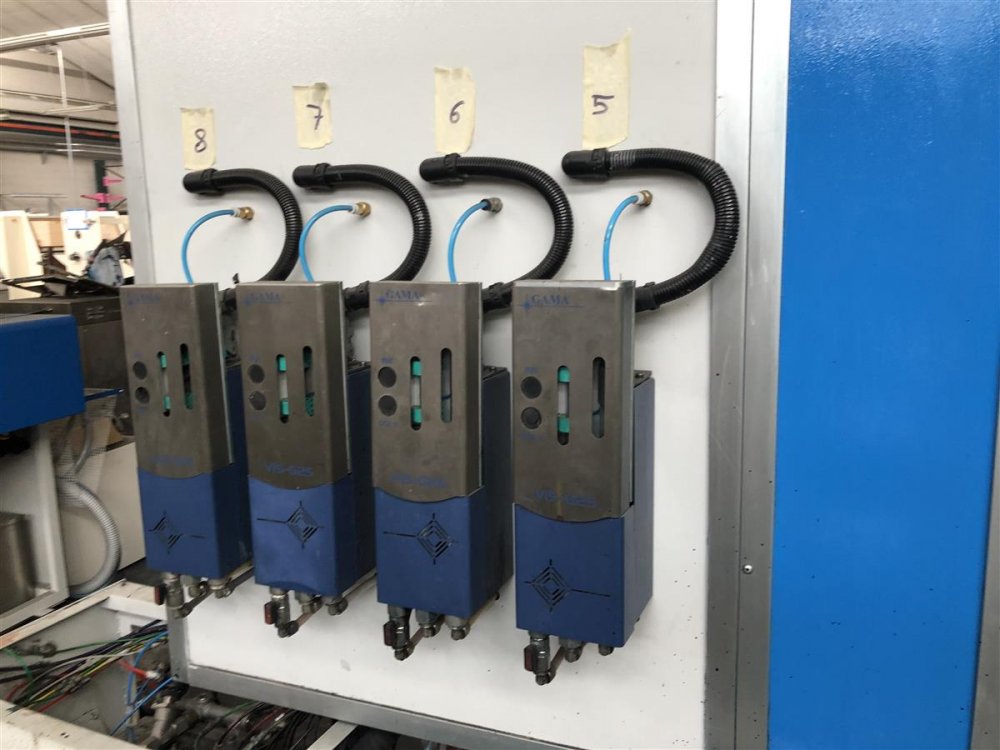

Vyscosity control | Automatic Gama |
Washing system | Automatic |

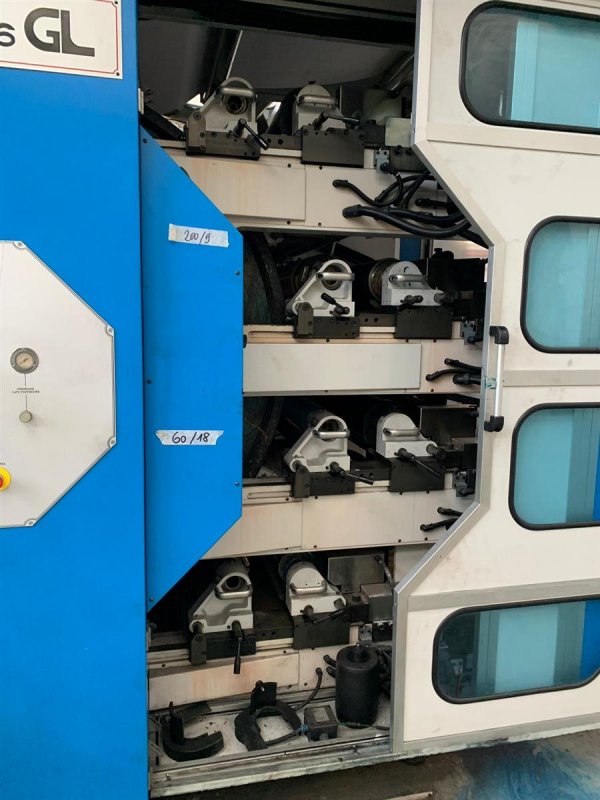

Inking system | Close chamber doctor blades |
Anilox | APPROX 15 ceramic anilox sleeves as follows 60 l/cm-vol18, 80 l/cm-vol16, 100/14, 140/12, 160/12 (2 pezzi), 200/9, 280/6.5, 300/6, 320/4.8, 360/6 (2 pezzi), 420/4.5 (3 pezzi) |
Print Sleeves | APPROX 176 printing sleeves as follows: 8 sleeves for each repeat as follows360, 380, 390, 393, 400, 405, 410, 415, 420, 440, 460, 480, 485, 490, 495, 500, 520, 540, 570, 590, 660, 700 |
Additional information | INCLUDING ALSO: - Bieffebi Plate mounter with proofing drum - IRAC anilox cleaner - Plate washing Slitting attaachment at rewinder with double slitting system - razor blade with groove d roller -rotary knoves Helios exhaust trim system |
** SOLD **
