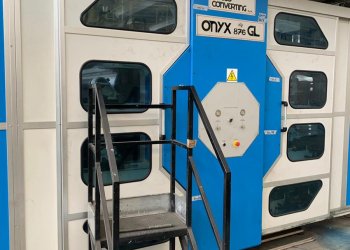

UTECO ONYX 876 GL flexo printing machine 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL727
Manufacturer
UTECO
Model
ONYX 876 GL
Year
2007
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
380
Max print repeat (mm)
850
Unwinder type
Turret Automatic flying splice - roll loading system
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic flying splice - roll un loading system
Max reel diameter rewinder (mm)
1000
Drying
2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system Zellweger
Videocamera
BST Premius Digital 3 ccd with smart register system
Web guides
BST EKR 1000 in and out
Vyscosity control
Automatic Gama
Washing system
Automatic
Inking system
Close chamber doctor blades
Anilox
APPROX 15 ceramic anilox sleeves as follows 60 l/cm-vol18, 80 l/cm-vol16, 100/14, 140/12, 160/12 (2 pezzi), 200/9, 280/6.5, 300/6, 320/4.8, 360/6 (2 pezzi), 420/4.5 (3 pezzi)
Print Sleeves
APPROX 176 printing sleeves as follows: 8 sleeves for each repeat as follows360, 380, 390, 393, 400, 405, 410, 415, 420, 440, 460, 480, 485, 490, 495, 500, 520, 540, 570, 590, 660, 700
Additional information
INCLUDING ALSO: - Bieffebi Plate mounter with proofing drum - IRAC anilox cleaner - Plate washing Slitting attaachment at rewinder with double slitting system - razor blade with groove d roller -rotary knoves Helios exhaust trim system
Machine Code FL727
Manufacturer UTECO
Model ONYX 876 GL
Year 2007
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 380
Max print repeat (mm) 850
Unwinder type Turret Automatic flying splice - roll loading system
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic flying splice - roll un loading system
Max reel diameter rewinder (mm) 1000
Drying 2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system Zellweger
Videocamera BST Premius Digital 3 ccd with smart register system
Web guides BST EKR 1000 in and out
Vyscosity control Automatic Gama
Washing system Automatic
Inking system Close chamber doctor blades
Anilox APPROX 15 ceramic anilox sleeves as follows 60 l/cm-vol18, 80 l/cm-vol16, 100/14, 140/12, 160/12 (2 pezzi), 200/9, 280/6.5, 300/6, 320/4.8, 360/6 (2 pezzi), 420/4.5 (3 pezzi)
Print Sleeves APPROX 176 printing sleeves as follows: 8 sleeves for each repeat as follows360, 380, 390, 393, 400, 405, 410, 415, 420, 440, 460, 480, 485, 490, 495, 500, 520, 540, 570, 590, 660, 700
Additional information INCLUDING ALSO: - Bieffebi Plate mounter with proofing drum - IRAC anilox cleaner - Plate washing Slitting attaachment at rewinder with double slitting system - razor blade with groove d roller -rotary knoves Helios exhaust trim system
