** SOLD **
Casemakers are based on a combination of in line flexo printing, rotary die cutting and folder gluer. They are used to transform corrugated board sheets into finished cases in 1 pass.
Ask more informations
about a similar one
- Machine Code
- CB-CM16
- Manufacturer
- LANGSTON
- Modello

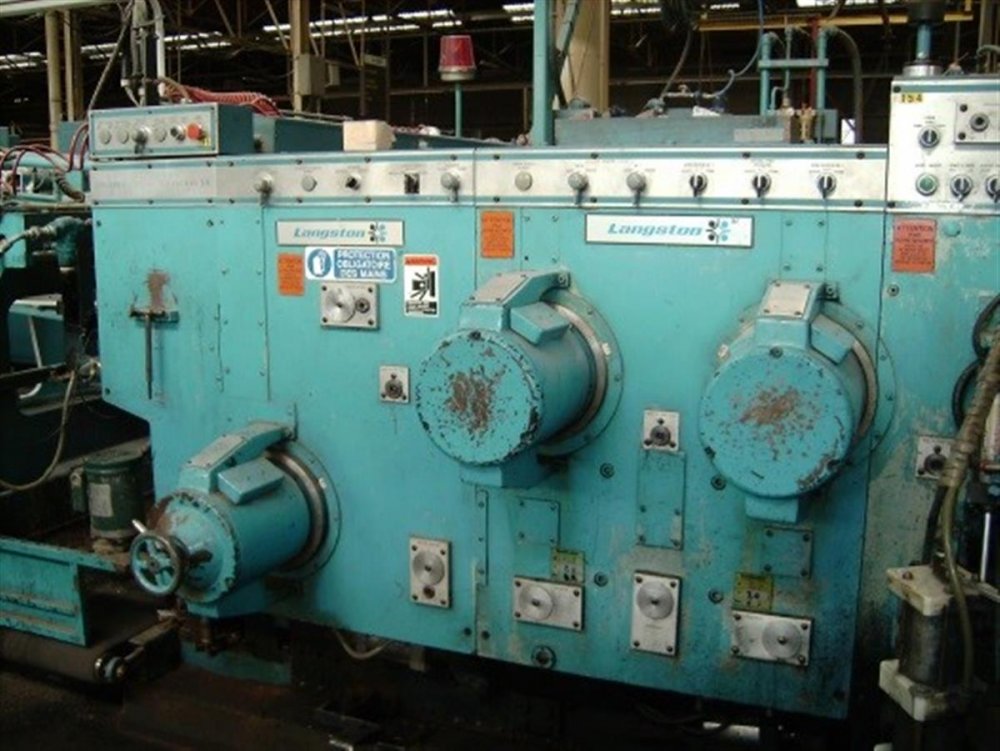

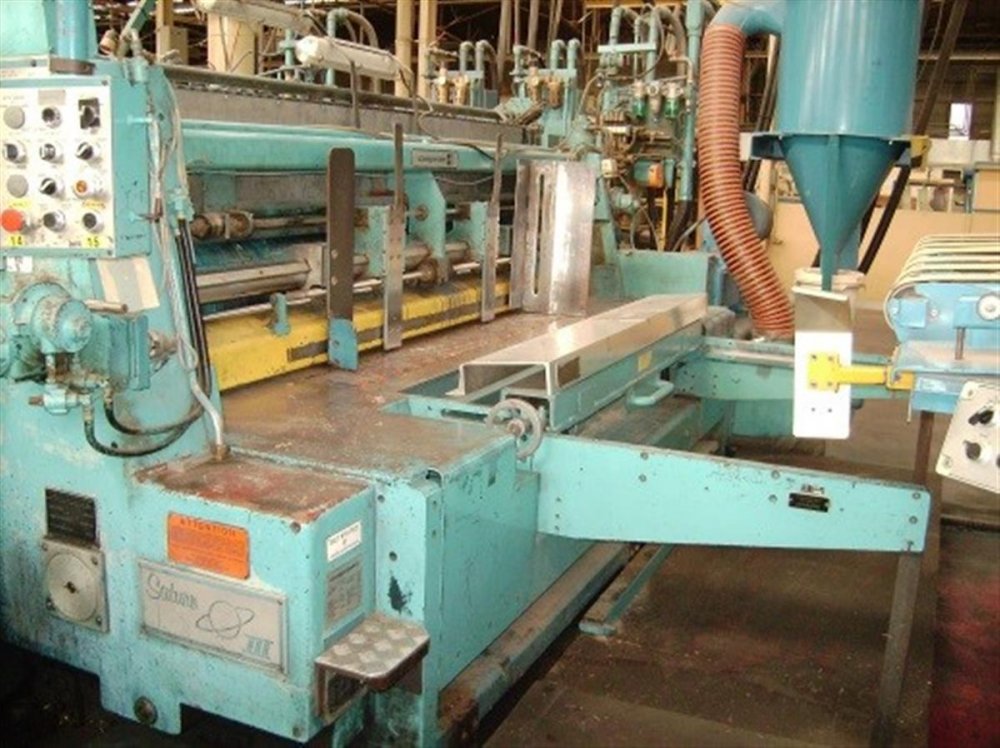

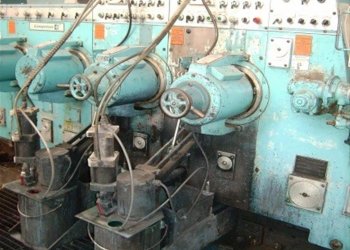

- SATURN III Printer Slotter Model 5113
- Year
- 2001
- Nominal Width (mm)
- 2870
- Max sheet width (mm)
- 2870
- Max sheet lenght (mm)
- 1232
- Gearless
- No
- Max board thickness (mm)
- 9 mm
- Set up system
- manual

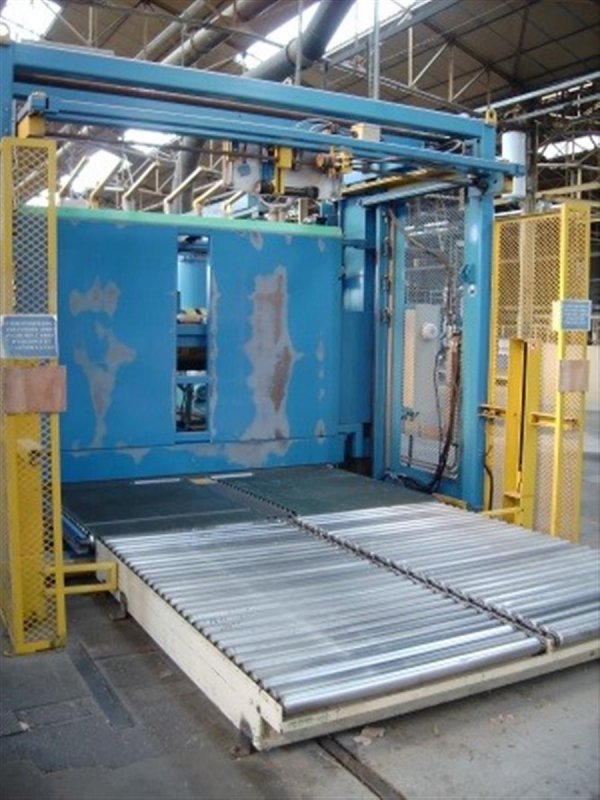

- Pre feeder

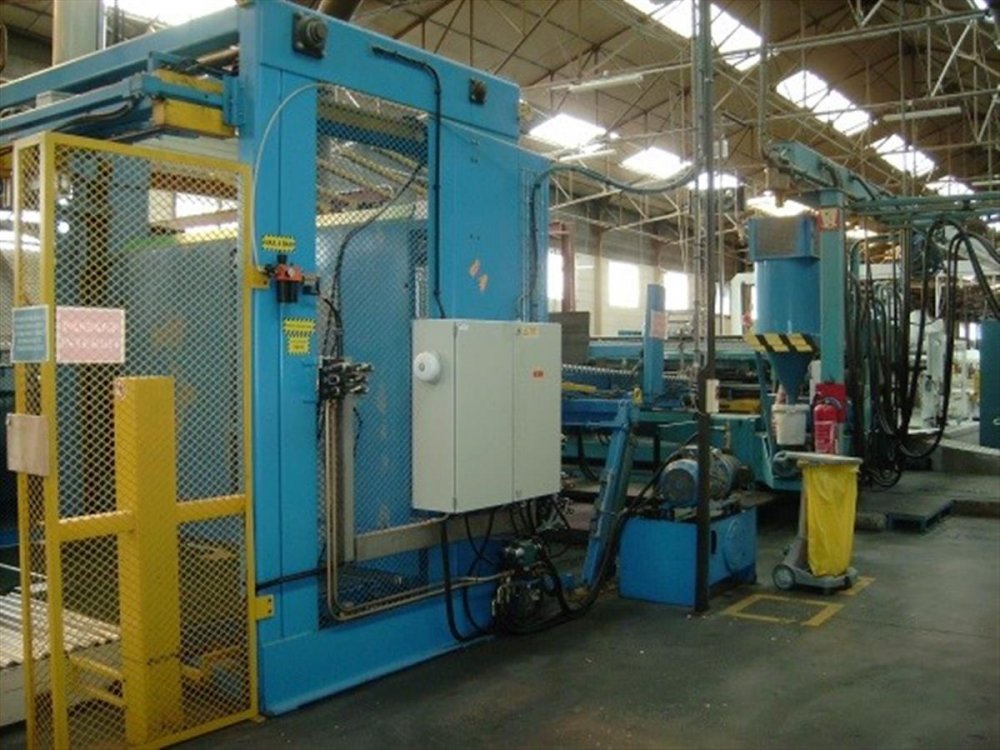

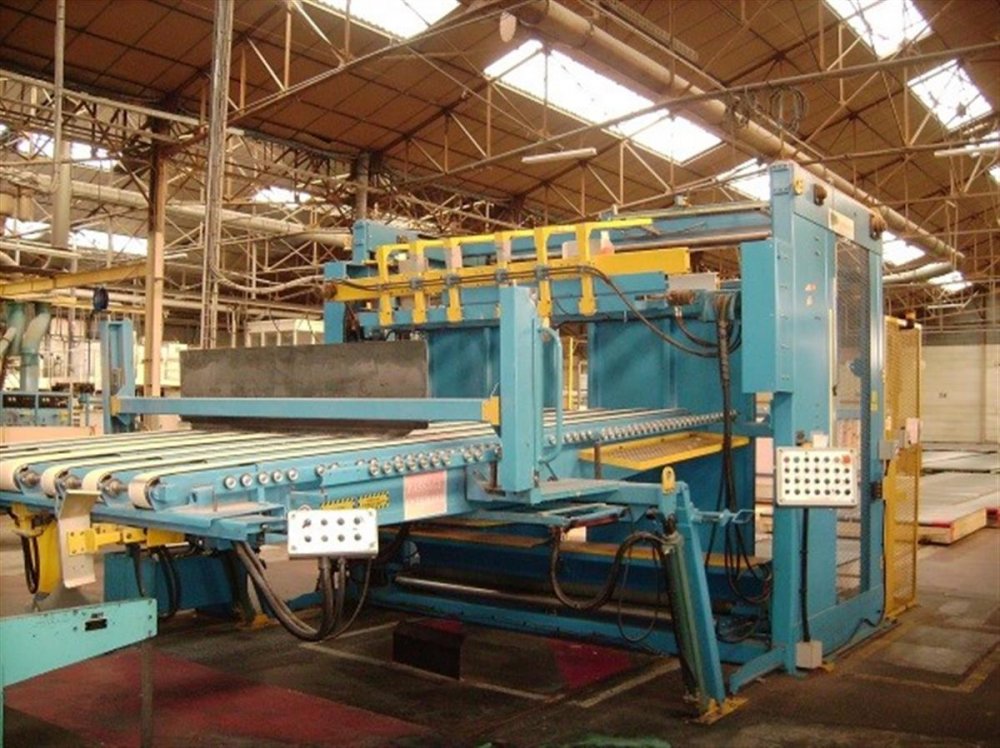

- Serco Holland Topfeeder model FM 593
- Printer
- No
- Num of colours
- 2
- Inking system
- pump
- Rotary die cutter
- No

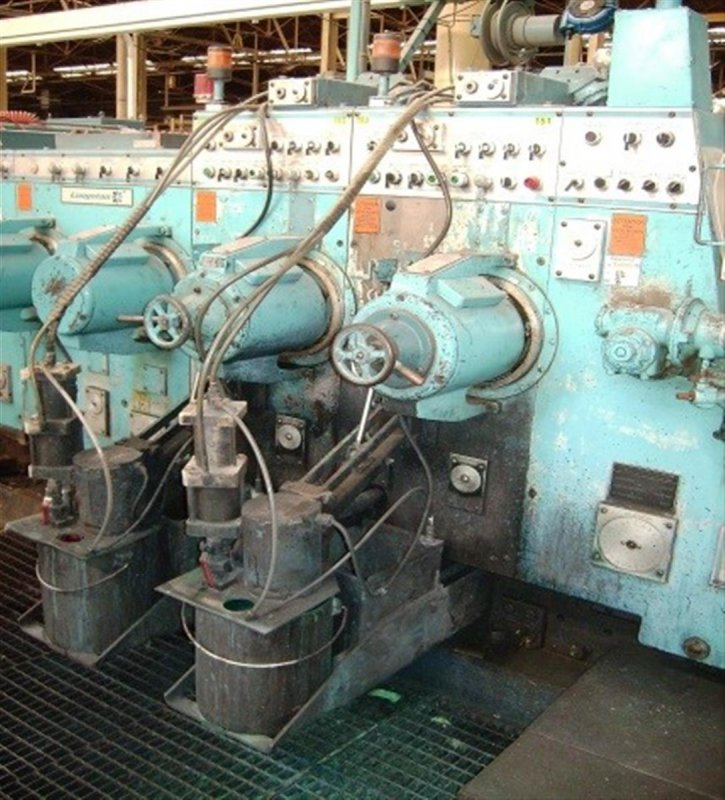

- Slotter unit
- yes
- Folder gluer unit

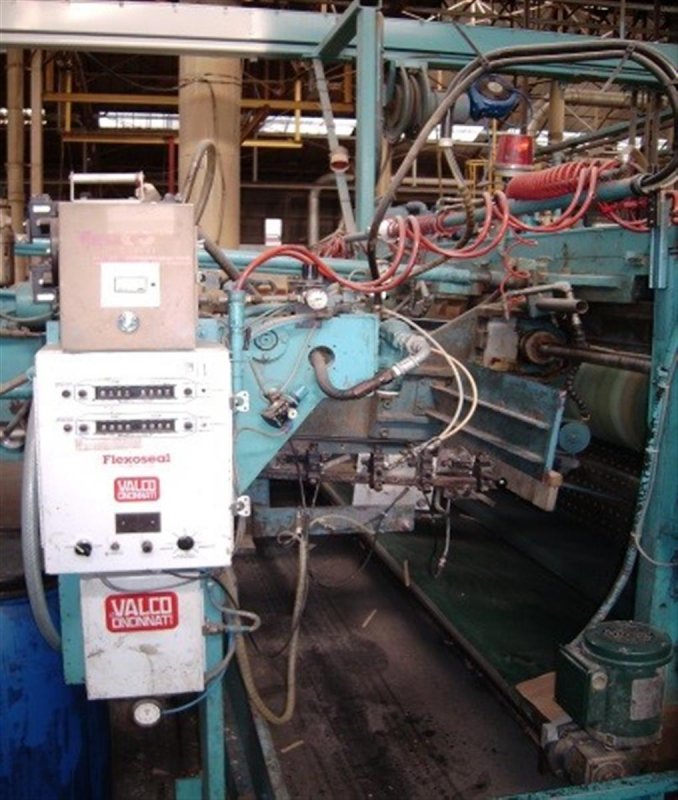

- valco flexoseal guns

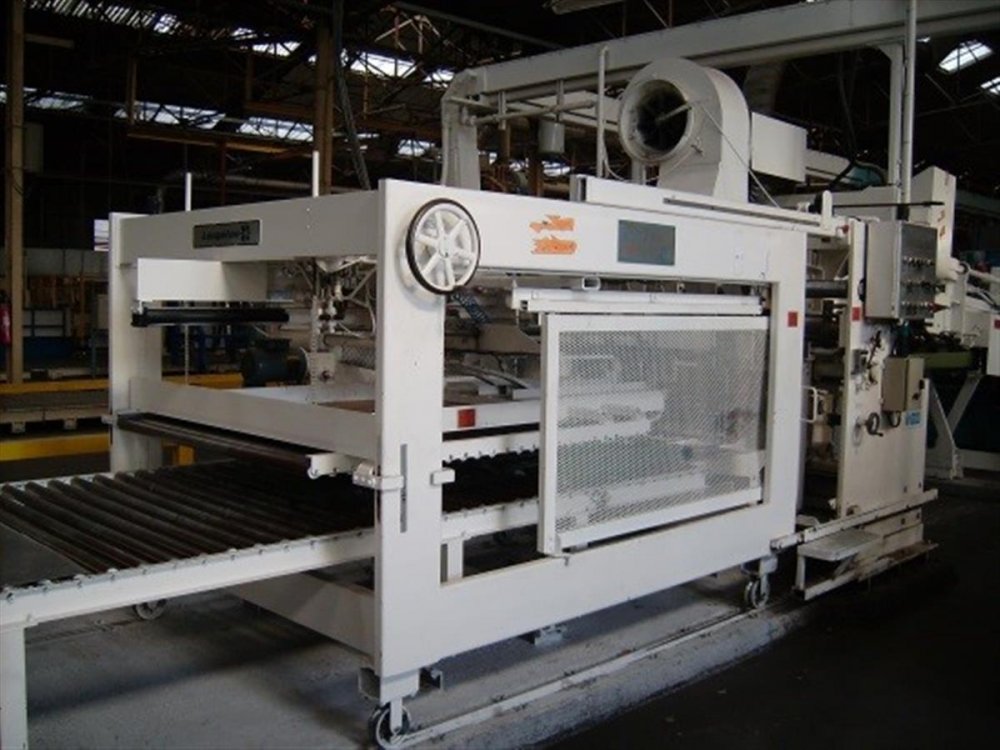

- Counter ejector

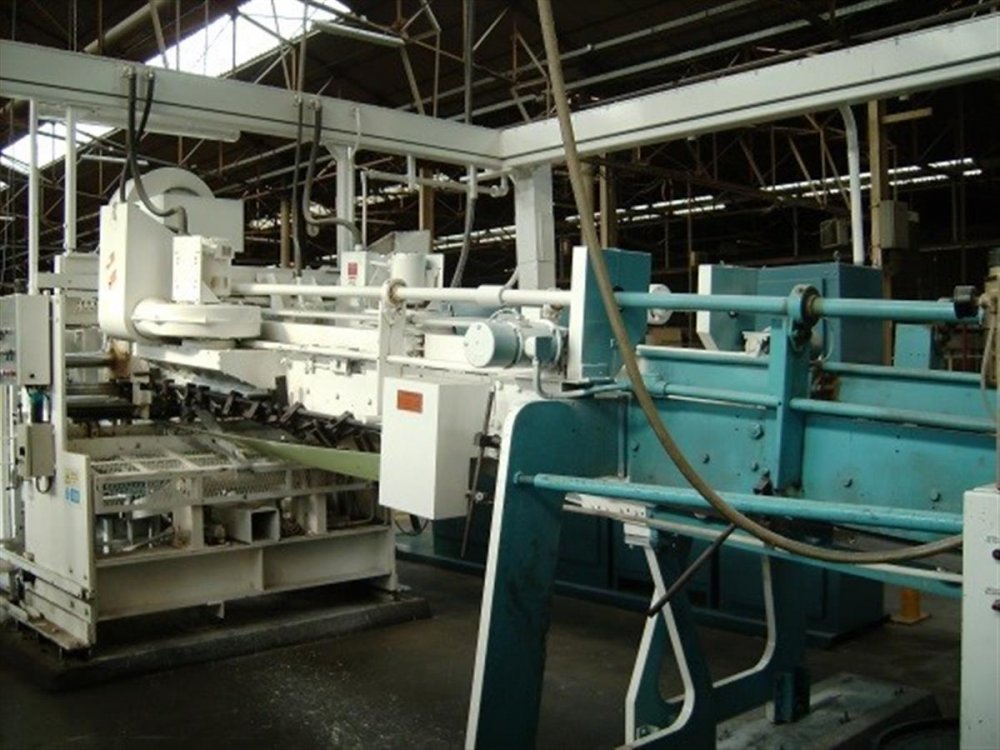

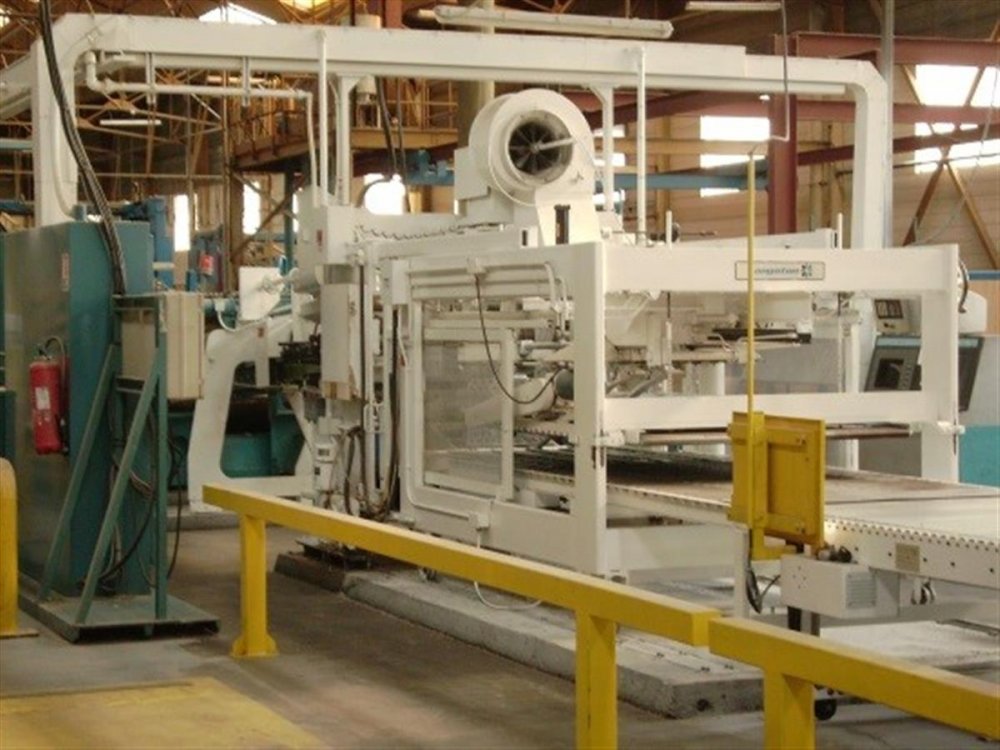

- Counter and ejector section with box squarring
- Note
- Available immediatly. mounted bat not in production. Die cutting: Maximum cutting size: 1232 x 2870mm Minimum cutting size: 279 x 594mm Tools cylinder diameter: 360,4mm Tool wood thickness: 12,7mm Inking station: 2 colors Maximum printing surface: 1219 x 2705mm Support film cylinder diameter: 390mm Film thickness: 5,5mm Basic requirements: Power: 380V Langston: 93KVA (460V and 110V for controls) Compressed air: 5,6bars, Q= 80 m3/hr running, 170 m3/hr during setting Water: T= 43°C, P= 2,5bars
| Machine Code | CB-CM16 |
| Manufacturer | LANGSTON |
| Modello | SATURN III Printer Slotter Model 5113 |
| Year | 2001 |
| Nominal Width (mm) | 2870 |
| Max sheet width (mm) | 2870 |
| Max sheet lenght (mm) | 1232 |
| Gearless | No |
| Max board thickness (mm) | 9 mm |
| Set up system | manual |
| Pre feeder | Serco Holland Topfeeder model FM 593 |
| Printer | No |
| Num of colours | 2 |
| Inking system | pump |
| Rotary die cutter | No |
| Slotter unit | yes |
| Folder gluer unit | valco flexoseal guns |
| Counter ejector | Counter and ejector section with box squarring |
| Note | Available immediatly. mounted bat not in production. Die cutting: Maximum cutting size: 1232 x 2870mm Minimum cutting size: 279 x 594mm Tools cylinder diameter: 360,4mm Tool wood thickness: 12,7mm Inking station: 2 colors Maximum printing surface: 1219 x 2705mm Support film cylinder diameter: 390mm Film thickness: 5,5mm Basic requirements: Power: 380V Langston: 93KVA (460V and 110V for controls) Compressed air: 5,6bars, Q= 80 m3/hr running, 170 m3/hr during setting Water: T= 43°C, P= 2,5bars |
