- Maschinencode
- CB-CM16
- Hersteller
- LANGSTON
- Modello

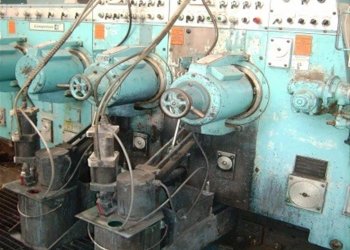

- SATURN III Printer Slotter Model 5113
- Baujahr
- 2001
- Nominal Width (mm)
- 2870
- Max sheet width (mm)
- 2870
- Max sheet lenght (mm)
- 1232
- Gearless
- No
- Max board thickness (mm)
- 9 mm
- Set up system
- manual
- Pre feeder

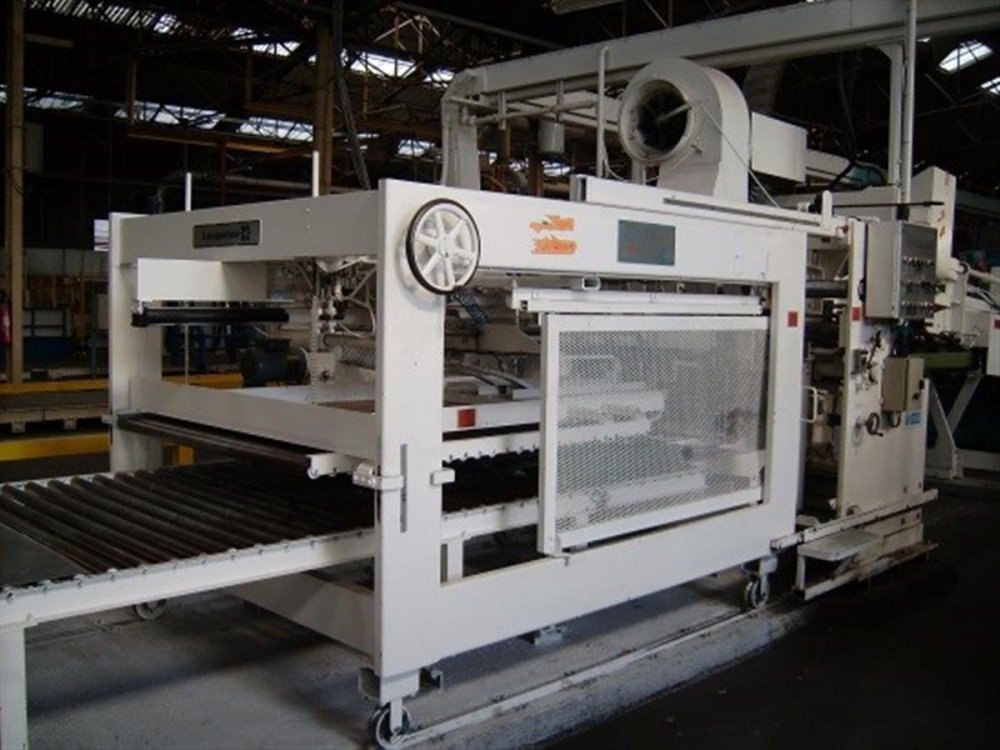

- Serco Holland Topfeeder model FM 593
- Printer
- No
- Num of colours
- 2
- Inking system
- pump
- Rotary die cutter
- No
- Slotter unit
- yes
- Folder gluer unit

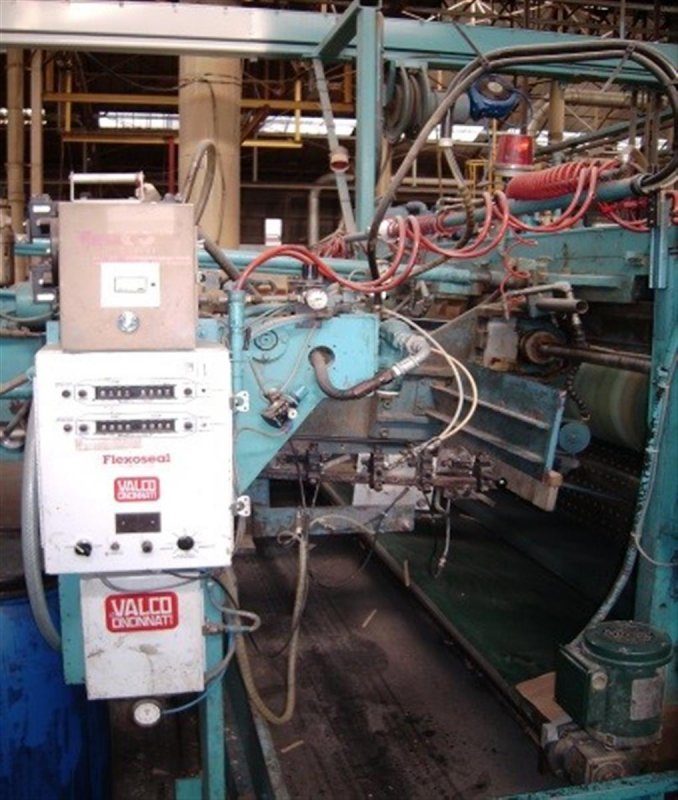

- valco flexoseal guns
- Counter ejector

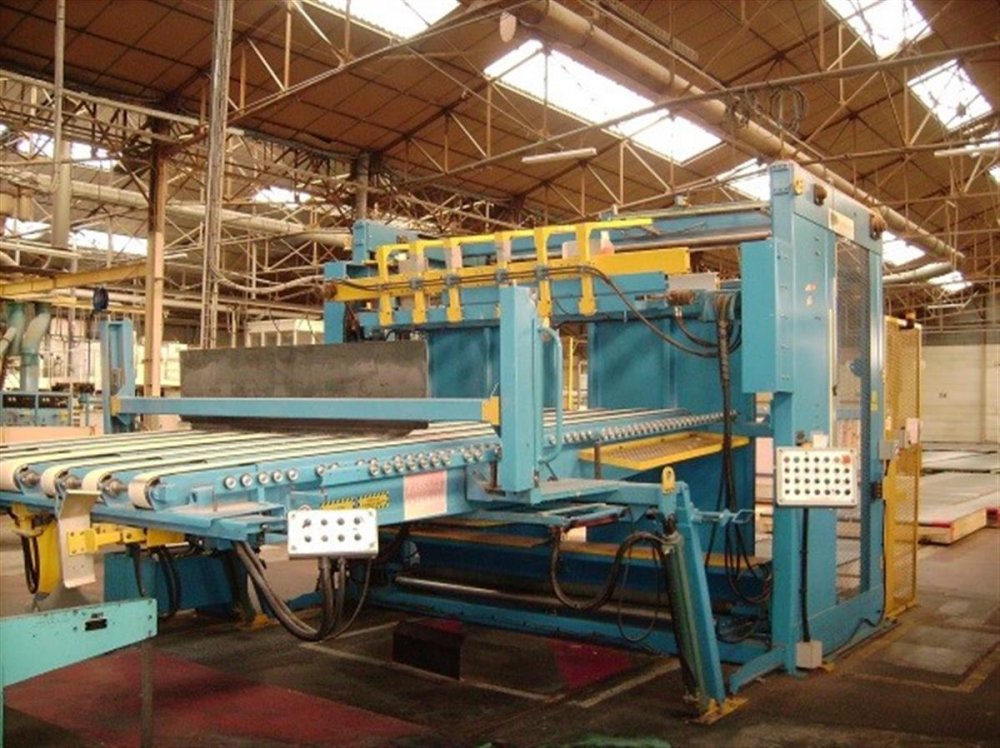

- Counter and ejector section with box squarring
- Note
- Available immediatly. mounted bat not in production. Die cutting: Maximum cutting size: 1232 x 2870mm Minimum cutting size: 279 x 594mm Tools cylinder diameter: 360,4mm Tool wood thickness: 12,7mm Inking station: 2 colors Maximum printing surface: 1219 x 2705mm Support film cylinder diameter: 390mm Film thickness: 5,5mm Basic requirements: Power: 380V Langston: 93KVA (460V and 110V for controls) Compressed air: 5,6bars, Q= 80 m3/hr running, 170 m3/hr during setting Water: T= 43°C, P= 2,5bars
