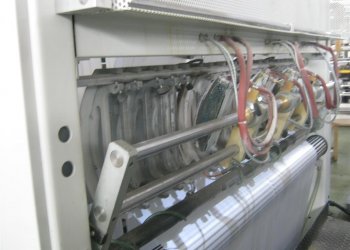

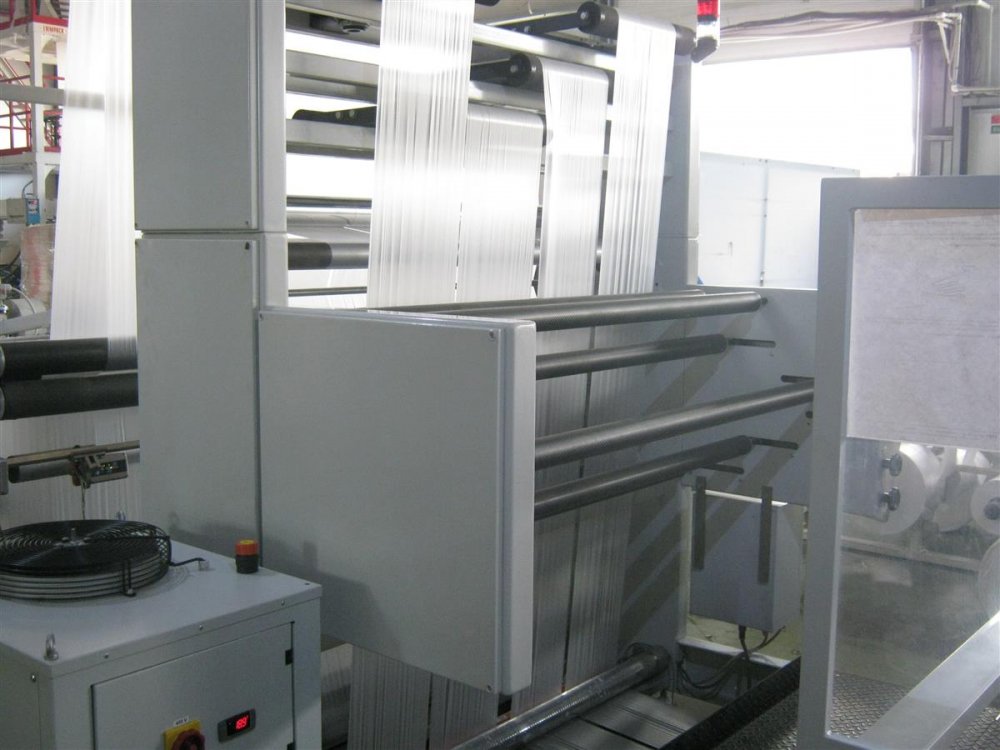

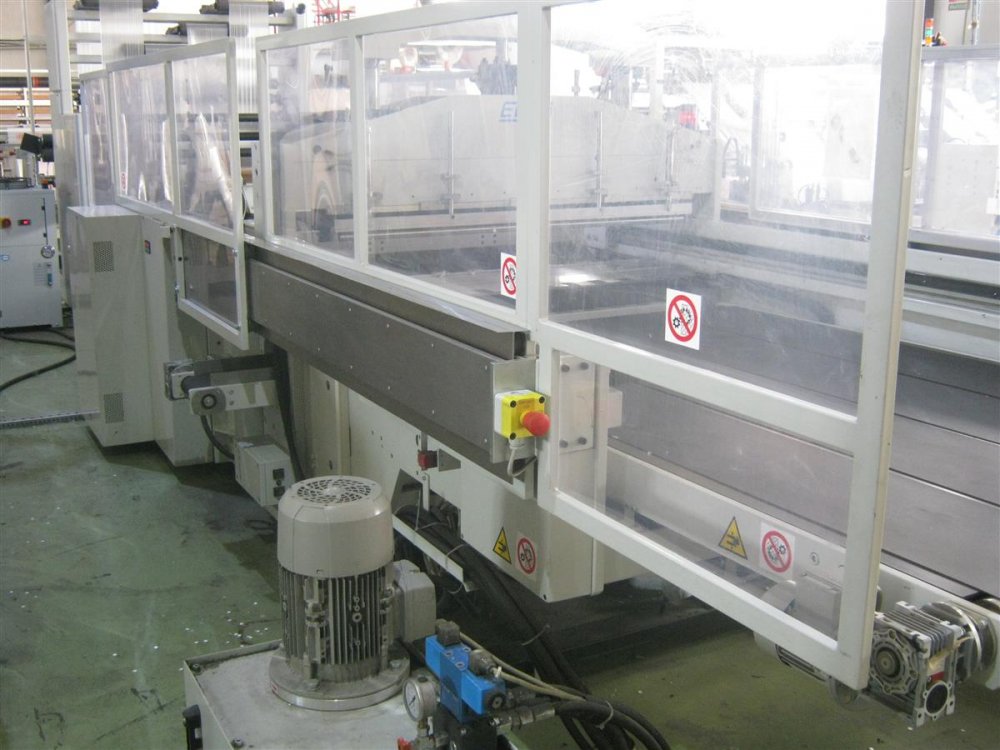

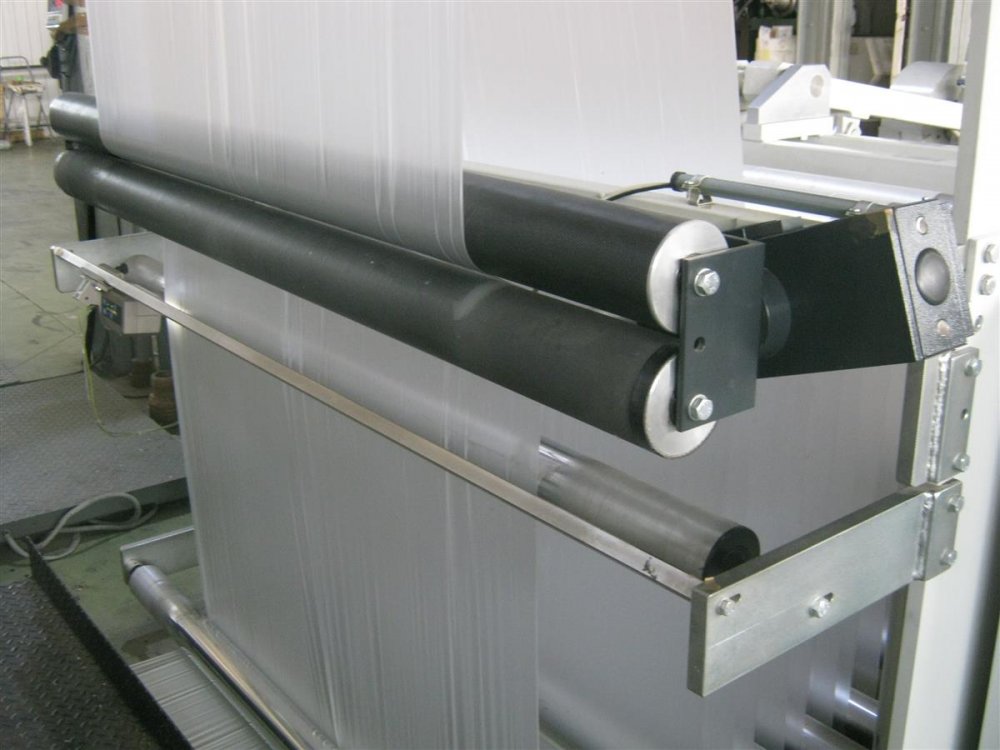

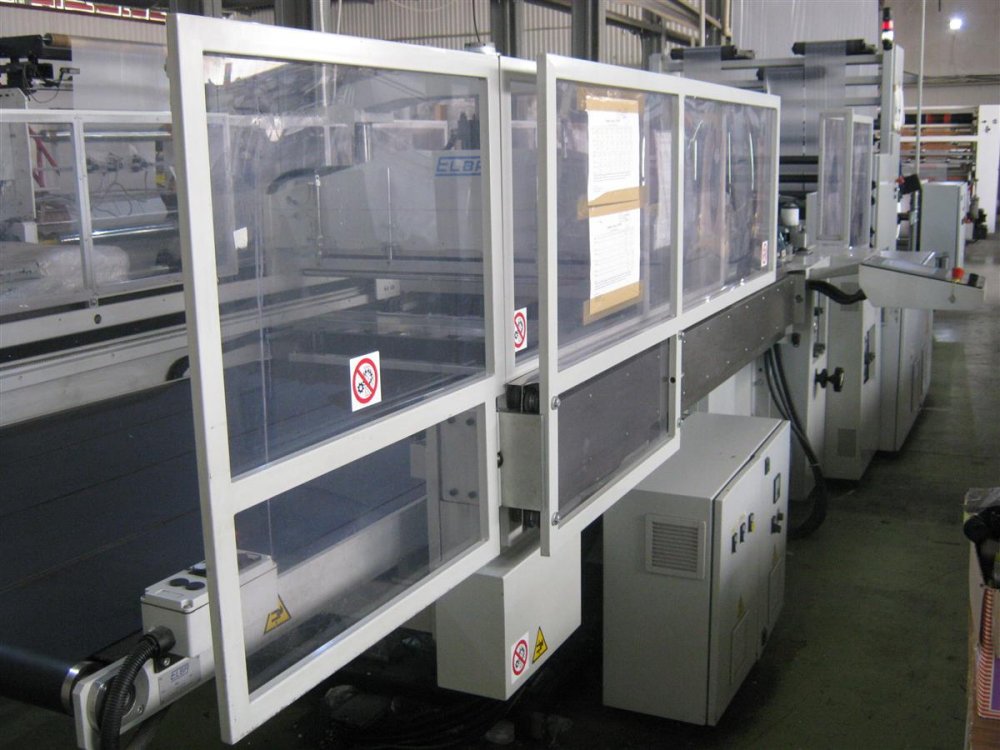

ELBA BM11BW-13 Bag making machine Open mouths

Film bag making machines are used to weld a web or a tubular of plastic film, typically PE or PP, into bags. Their construction and equipment may be very different depending on: the type of bags they need to produce, the type of handle they can apply and the way in which these bags are delivered.

Machine Code FI429
Manufacturer ELBA
Model BM11BW-13
Year 2013

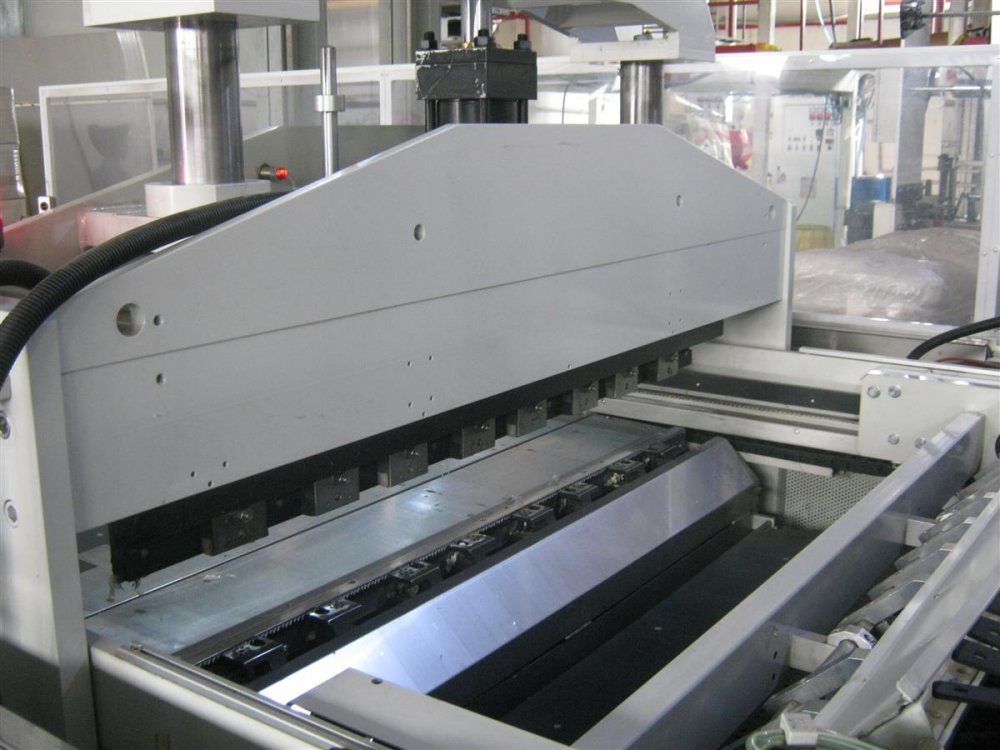

Type of sealing/bags Bottom weld
Type of handle Kidney / bean type pounched handle

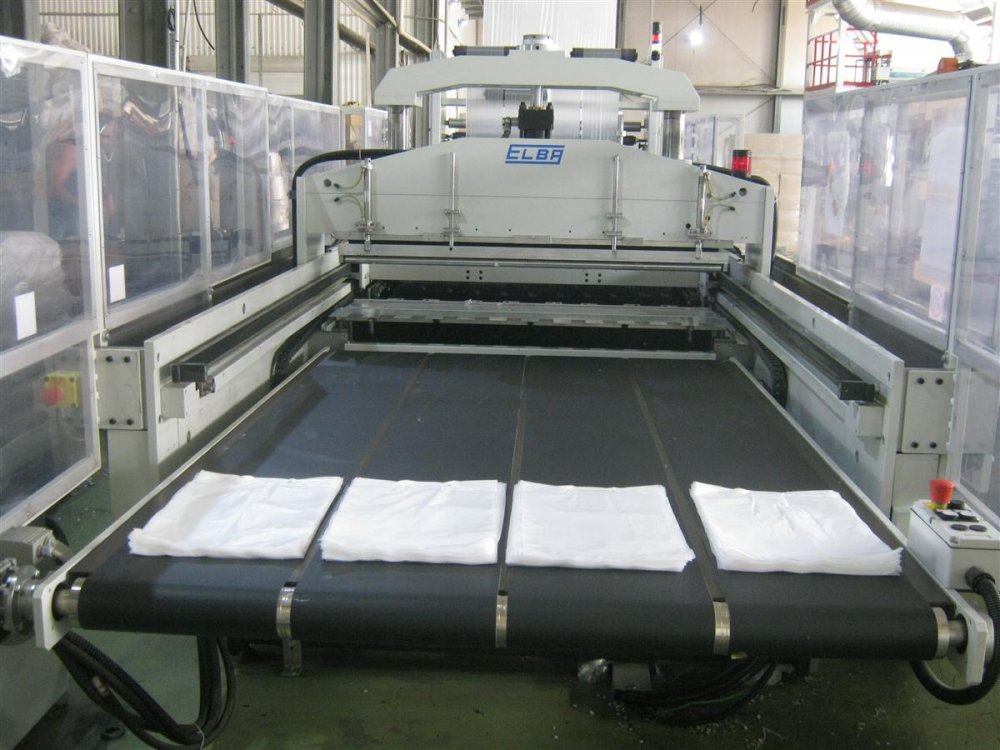

Type of delivery Conveyor table

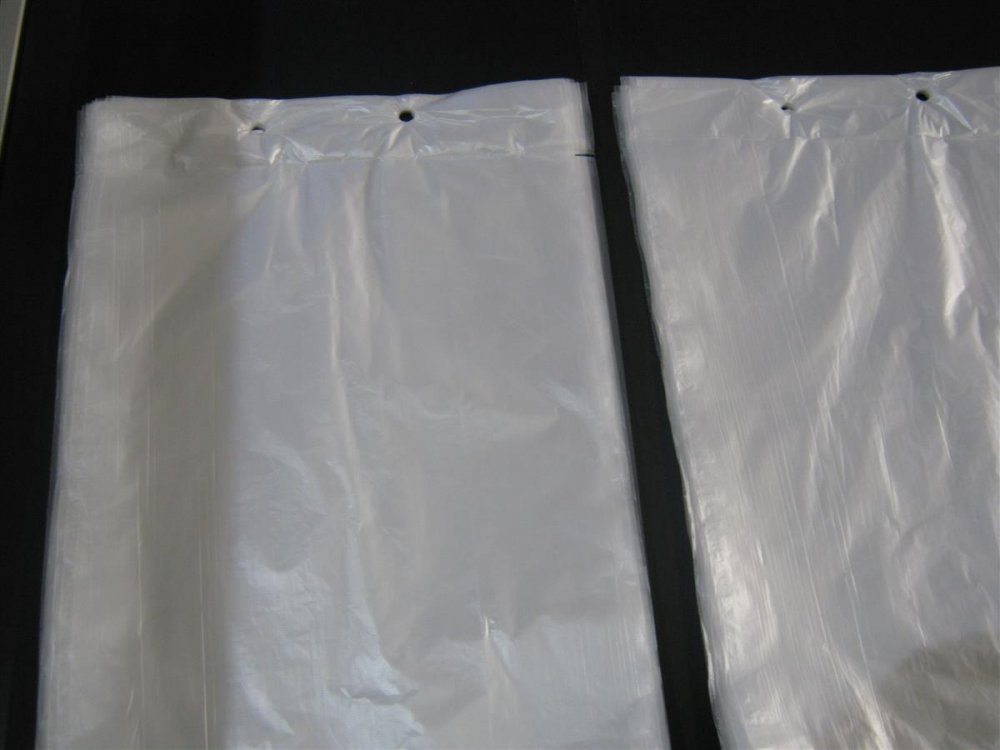

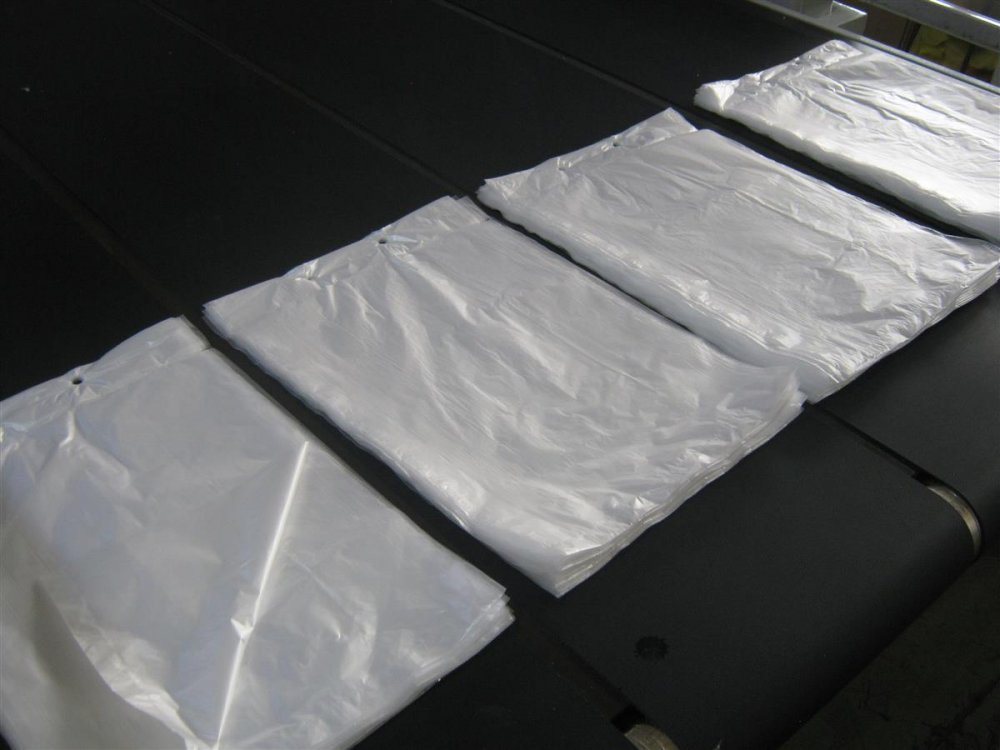

Type of bags Open mouths
Working width (mm) 1300
Number of lanes 1-5
Bag length 250-1200
Bag width 150-320
Cycle / min 300

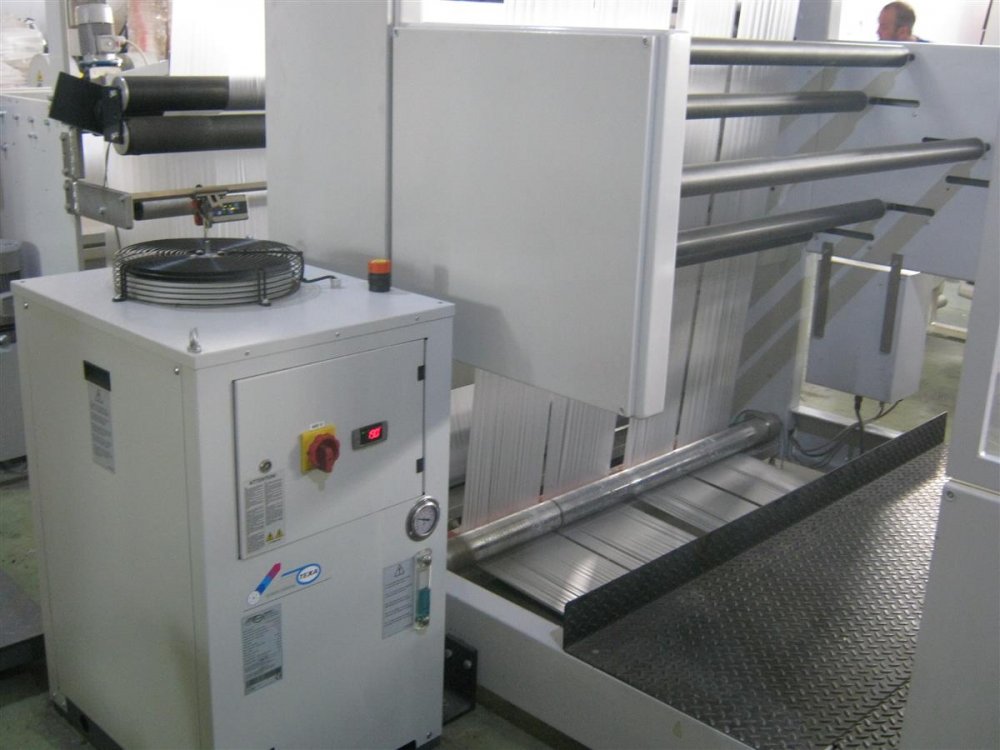

Unwinder Motor driven brake for rolls up to 1000mm diameter
Additional information type of bags Blocknotes open mouth
Additional information No gusseter Yes slit and seal unit
