** SOLD **

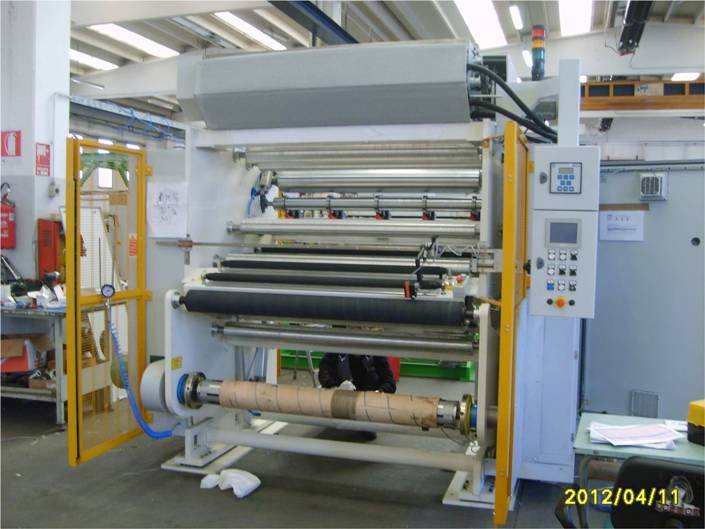

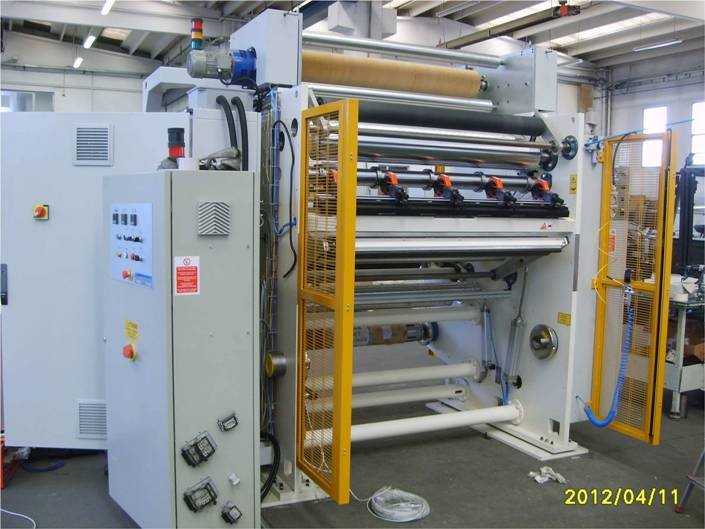

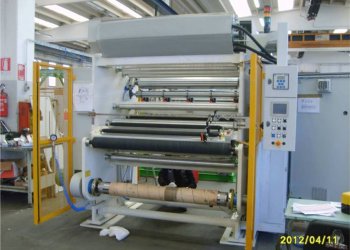

Slitter rewinding machines are used to slit a single and wider reel of web into several narrower reels of materials.
Ask more informations
about a similar one
- Machine Code
- SR212
- Manufacturer
- A&B
- Modello
- DOCTOR MACHINE
- Year
- 2012
- Working width (mm)
- 1400
- Materials
- paper up to 100 gr, plastic materials
- Speed
- 500 mt
- Unwinder type
- Single shaft
- Max diameter reel unwinder
- 900
- Rewinder type
- Single
- Max diameter reel rewinder
- 1000
- Min slit width
- 600
- Note
- “FIFE” electromechanic linear actuator . ACE antistatic bar on both sides No. 05 Helios slitting group composed each by 1 motorised roller carrying 2 self-blocking counterknives Ø 105 and 2 pneumatic counterknives for longitudinal cutting. 2 pairs of photoelectric barriers height 1500 mm The unit is prepared for the installation of labelling unit
| Machine Code | SR212 |
| Manufacturer | A&B |
| Modello | DOCTOR MACHINE |
| Year | 2012 |
| Working width (mm) | 1400 |
| Materials | paper up to 100 gr, plastic materials |
| Speed | 500 mt |
| Unwinder type | Single shaft |
| Max diameter reel unwinder | 900 |
| Rewinder type | Single |
| Max diameter reel rewinder | 1000 |
| Min slit width | 600 |
| Note | “FIFE” electromechanic linear actuator . ACE antistatic bar on both sides No. 05 Helios slitting group composed each by 1 motorised roller carrying 2 self-blocking counterknives Ø 105 and 2 pneumatic counterknives for longitudinal cutting. 2 pairs of photoelectric barriers height 1500 mm The unit is prepared for the installation of labelling unit |
