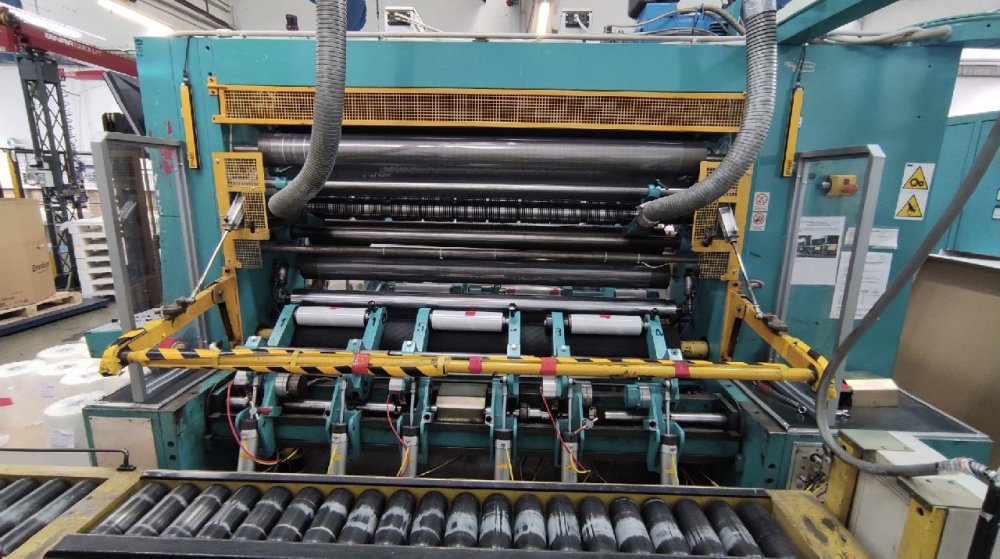

Slitter rewinding machines are used to slit a single and wider reel of web into several narrower reels of materials.
Ask more informations
- Machine Code
- SR690
- Manufacturer
- LAEM SYSTEM
- Year
- 1993
- Overhaul/renovation
- IR detector edge guide with adjustable head for web edge reading. (FIFE MAXXCESS – Retrofit 2025
- Working width (mm)
- 2000
- Speed
- 400m/min
- Unwinder type
- shaftless unwinder with mechanical expandable chucks and hydraulic lift of the loading arms
- Max diameter reel unwinder
- 1200
- Rewinder type
- Two drum surface winder
- Max diameter reel rewinder
- 600
- Rewinder description

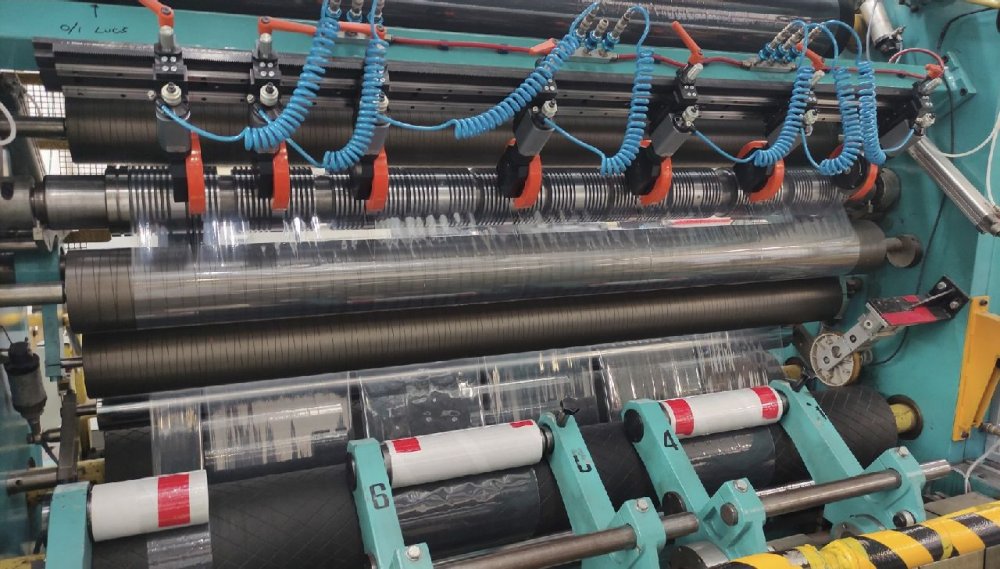

- 6 rewinding stations composed each one of a couple of adjustable arms pneumatically controlled. (+ 1 couple of additional spare arms)
- Min slit width
- 180mm
- Knives

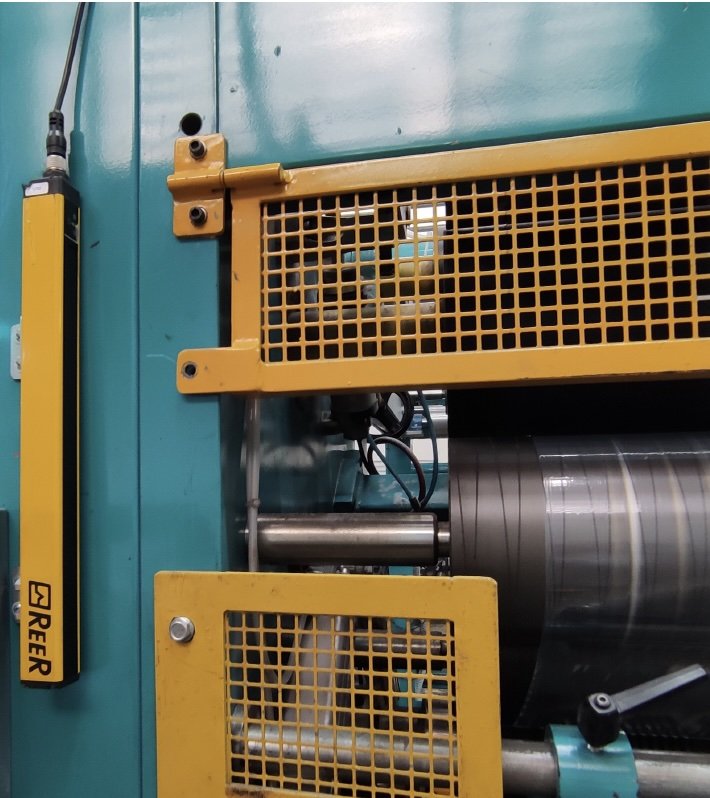

- 7 single circular blades with pneumatic insertion mounted on a crossbar with linear guide 1 Group of Multiple counter knife mounted on a motorized shaft (fixing dowels with Allen key tool) 1 Safety optical barrier (Laserscan) to stop machine when entering at production speed. 1 Safety optical barrier to stop machine when entering at production speed in the nip-rolls area New CUTTING System (DELSAR Lame) installed in 2022 with excellent and sharp cut and easy/quick set-up in job change-over
- Note

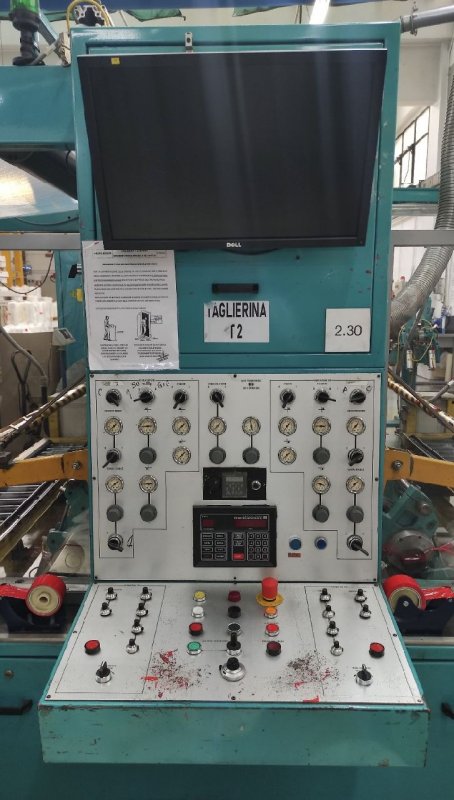

- 100% Inspection Camera System (PrintStar/SMASH by ISRAVISION) for transparent and printed film equipped with 2 B/W Linear Camera and fluorescent tube for back-illumination with dedicated software (PrintStar/SMASH) for automatic defect position identification and a remote monitor above the control panel for operator defect view.
| Machine Code | SR690 |
| Manufacturer | LAEM SYSTEM |
| Year | 1993 |
| Overhaul/renovation | IR detector edge guide with adjustable head for web edge reading. (FIFE MAXXCESS – Retrofit 2025 |
| Working width (mm) | 2000 |
| Speed | 400m/min |
| Unwinder type | shaftless unwinder with mechanical expandable chucks and hydraulic lift of the loading arms |
| Max diameter reel unwinder | 1200 |
| Rewinder type | Two drum surface winder |
| Max diameter reel rewinder | 600 |
| Rewinder description | 6 rewinding stations composed each one of a couple of adjustable arms pneumatically controlled. (+ 1 couple of additional spare arms) |
| Min slit width | 180mm |
| Knives | 7 single circular blades with pneumatic insertion mounted on a crossbar with linear guide 1 Group of Multiple counter knife mounted on a motorized shaft (fixing dowels with Allen key tool) 1 Safety optical barrier (Laserscan) to stop machine when entering at production speed. 1 Safety optical barrier to stop machine when entering at production speed in the nip-rolls area New CUTTING System (DELSAR Lame) installed in 2022 with excellent and sharp cut and easy/quick set-up in job change-over |
| Note | 100% Inspection Camera System (PrintStar/SMASH by ISRAVISION) for transparent and printed film equipped with 2 B/W Linear Camera and fluorescent tube for back-illumination with dedicated software (PrintStar/SMASH) for automatic defect position identification and a remote monitor above the control panel for operator defect view. |
