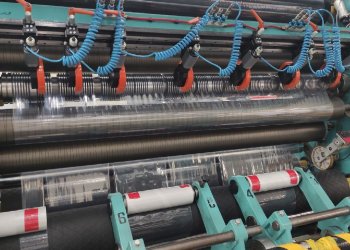

- Codice Macchina
- SR690
- Manufacturer
- LAEM SYSTEM
- Year
- 1993
- Rinnovo
- IR detector edge guide with adjustable head for web edge reading. (FIFE MAXXCESS – Retrofit 2025
- Larghezza lavoro (mm)
- 2000
- Velocità
- 400m/min
- Unwinder type
- shaftless unwinder with mechanical expandable chucks and hydraulic lift of the loading arms
- Diametro massimo bobina svolgitore
- 1200
- Rewinder type
- Two drum surface winder
- Diametro massimo bobina avvolgitore
- 600
- Descrizione avvolgitore
- 6 rewinding stations composed each one of a couple of adjustable arms pneumatically controlled. (+ 1 couple of additional spare arms)
- Larghezza taglio minima
- 180mm
- Coltelli
- 7 single circular blades with pneumatic insertion mounted on a crossbar with linear guide 1 Group of Multiple counter knife mounted on a motorized shaft (fixing dowels with Allen key tool) 1 Safety optical barrier (Laserscan) to stop machine when entering at production speed. 1 Safety optical barrier to stop machine when entering at production speed in the nip-rolls area New CUTTING System (DELSAR Lame) installed in 2022 with excellent and sharp cut and easy/quick set-up in job change-over
- Ulteriori informazioni
- 100% Inspection Camera System (PrintStar/SMASH by ISRAVISION) for transparent and printed film equipped with 2 B/W Linear Camera and fluorescent tube for back-illumination with dedicated software (PrintStar/SMASH) for automatic defect position identification and a remote monitor above the control panel for operator defect view.
| Codice Macchina | SR690 |
| Manufacturer | LAEM SYSTEM |
| Year | 1993 |
| Rinnovo | IR detector edge guide with adjustable head for web edge reading. (FIFE MAXXCESS – Retrofit 2025 |
| Larghezza lavoro (mm) | 2000 |
| Velocità | 400m/min |
| Unwinder type | shaftless unwinder with mechanical expandable chucks and hydraulic lift of the loading arms |
| Diametro massimo bobina svolgitore | 1200 |
| Rewinder type | Two drum surface winder |
| Diametro massimo bobina avvolgitore | 600 |
| Descrizione avvolgitore | 6 rewinding stations composed each one of a couple of adjustable arms pneumatically controlled. (+ 1 couple of additional spare arms) |
| Larghezza taglio minima | 180mm |
| Coltelli | 7 single circular blades with pneumatic insertion mounted on a crossbar with linear guide 1 Group of Multiple counter knife mounted on a motorized shaft (fixing dowels with Allen key tool) 1 Safety optical barrier (Laserscan) to stop machine when entering at production speed. 1 Safety optical barrier to stop machine when entering at production speed in the nip-rolls area New CUTTING System (DELSAR Lame) installed in 2022 with excellent and sharp cut and easy/quick set-up in job change-over |
| Ulteriori informazioni | 100% Inspection Camera System (PrintStar/SMASH by ISRAVISION) for transparent and printed film equipped with 2 B/W Linear Camera and fluorescent tube for back-illumination with dedicated software (PrintStar/SMASH) for automatic defect position identification and a remote monitor above the control panel for operator defect view. |
