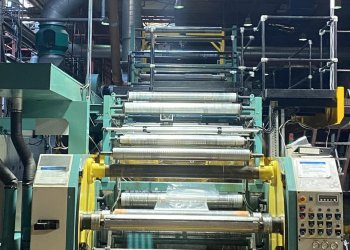

SCHIAVI ECO CONVERT 74 C Laminator / coating machine SOLVENTLESS // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.

Photo Gallery

Ask more informations

about a similar one

Machine Code: LA420
Manufacturer: SCHIAVI
Modello: ECO CONVERT 74 C
Year: 1996
Application: Lamination + coating
Type of lamination/coating: SOLVENTLESS
Working width (mm): 1300
Speed: 370mpm
First unwinder type: Turret
Max diameter reel unwinder: 1070
Secondary unwinder type: Turret
Max diameter reel unwinder: 1000

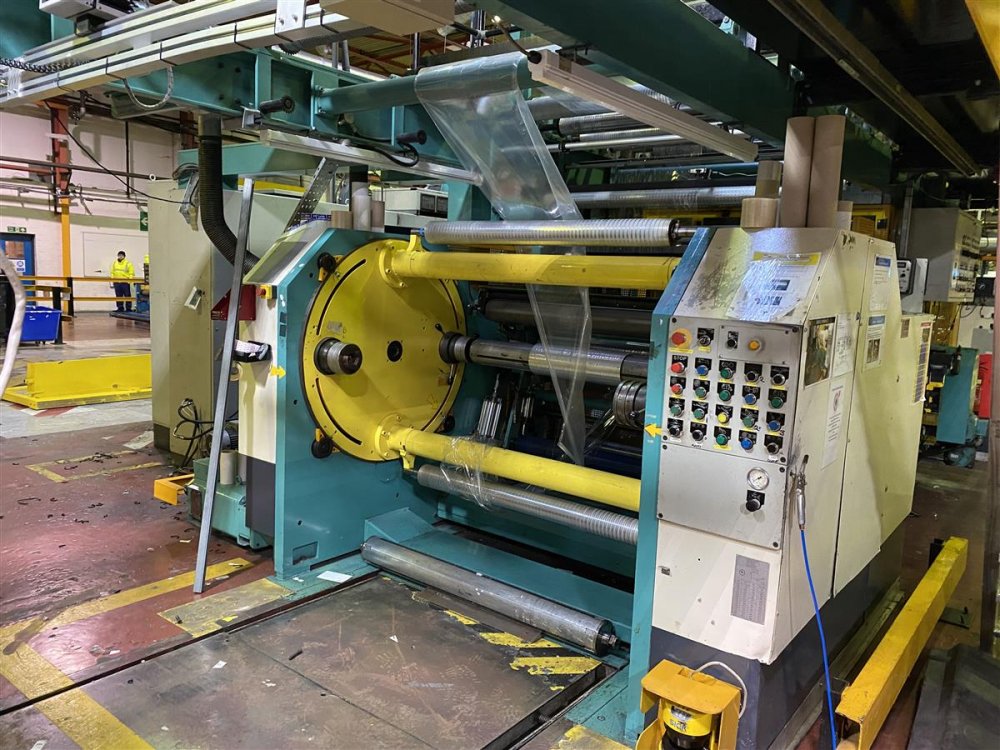

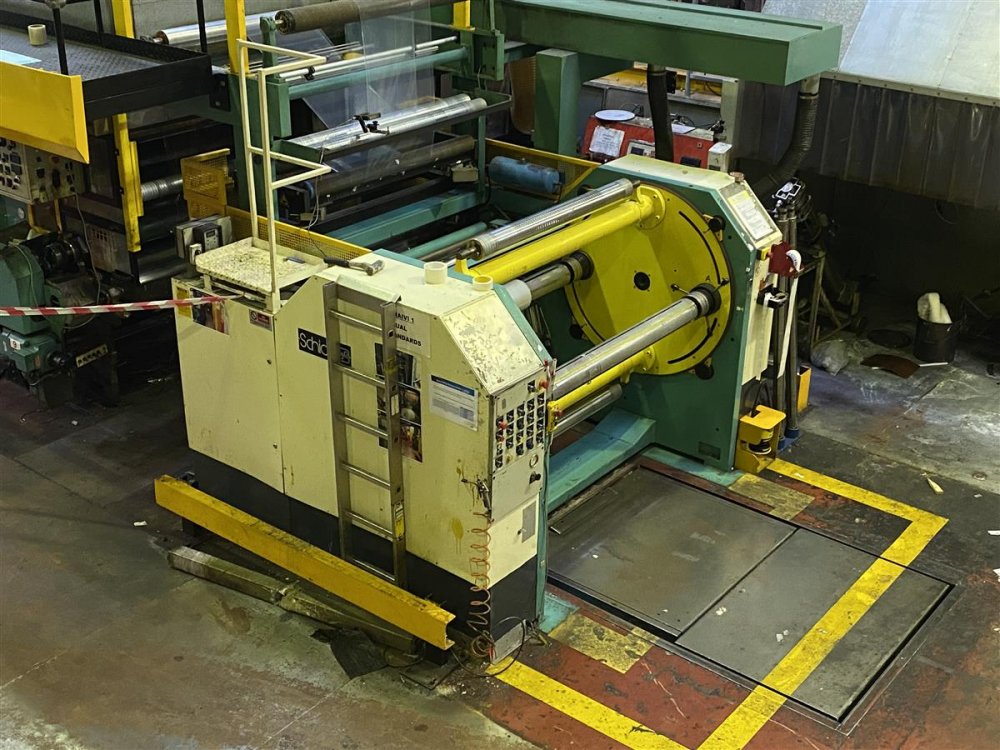

Rewinder type: Turret
Max diameter reel rewinder: 1000

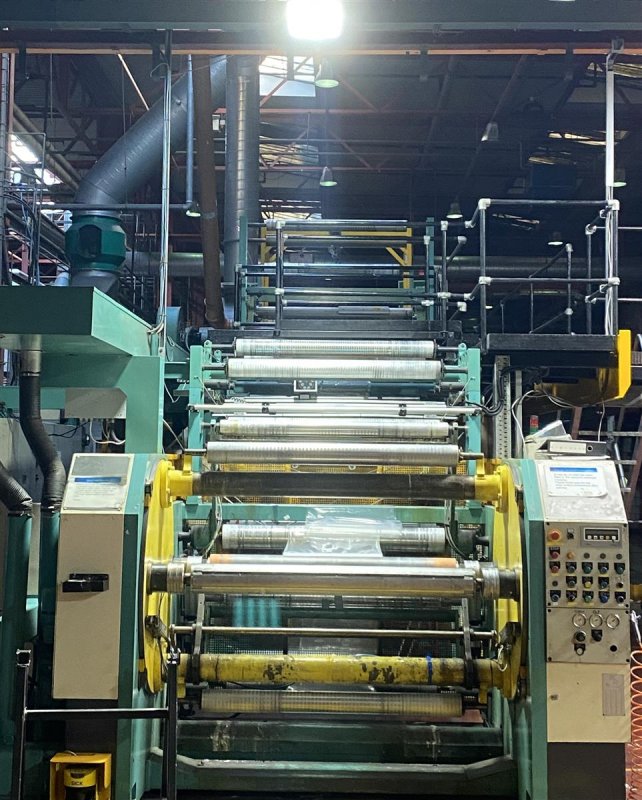

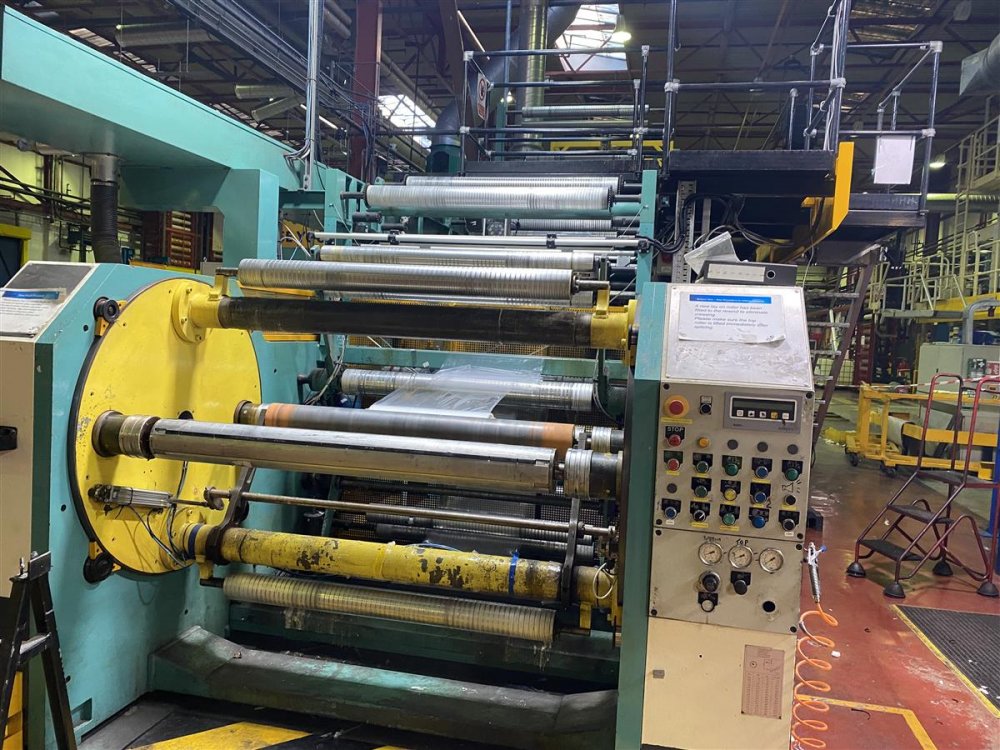

Coating unit: 5 rollers staggared
Corona treatment: DGM 2000 Ahlbrandt
Note: 1 station unit Max cylinder width 1300 Auto flagger RTIS 3 Vacuumatic Supply Voltage 415V 50Hz 350KW 240KVA Cooling water spec 10-12 degrees celcius at 46.6 l/min

Machine Code	LA420
Manufacturer	SCHIAVI
Modello	ECO CONVERT 74 C
Year	1996
Application	Lamination + coating
Type of lamination/coating	SOLVENTLESS
Working width (mm)	1300
Speed	370mpm
First unwinder type	Turret
Max diameter reel unwinder	1070
Secondary unwinder type	Turret
Max diameter reel unwinder	1000
Rewinder type	Turret
Max diameter reel rewinder	1000
Coating unit	5 rollers staggared
Corona treatment	DGM 2000 Ahlbrandt
Note	1 station unit Max cylinder width 1300 Auto flagger RTIS 3 Vacuumatic Supply Voltage 415V 50Hz 350KW 240KVA Cooling water spec 10-12 degrees celcius at 46.6 l/min

** SOLD **
