- Code Machine
- LA420
- Fabricant
- SCHIAVI
- Modello
- ECO CONVERT 74 C
- Année
- 1996
- Application
- Lamination + coating
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1300
- Speed
- 370mpm

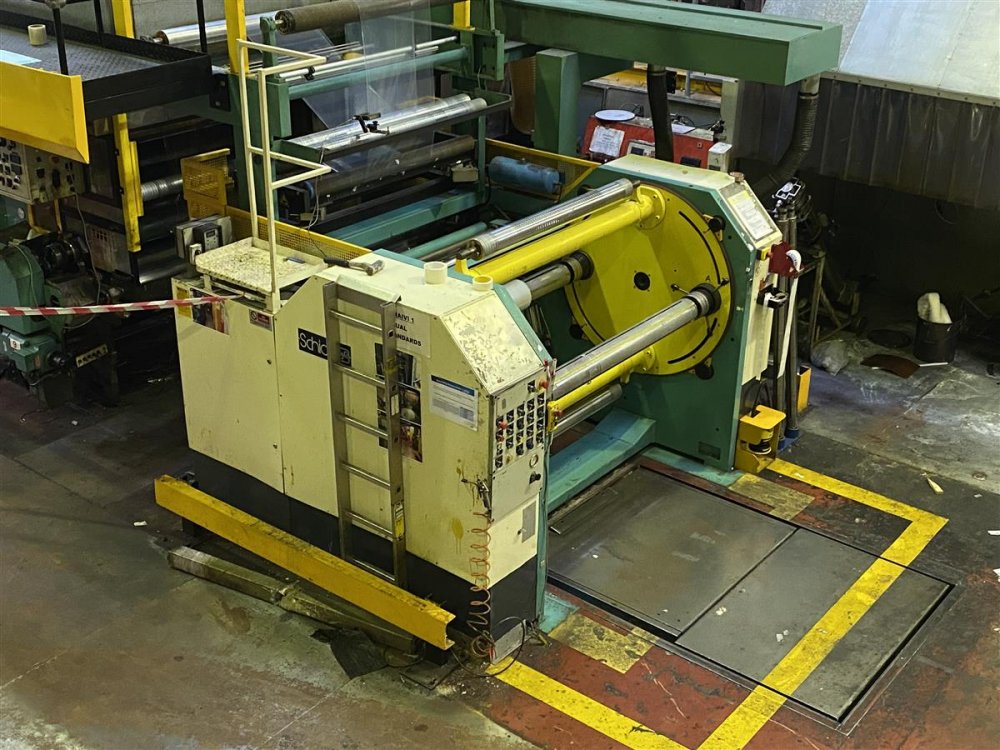

- First unwinder type
- Turret
- Max diameter reel unwinder
- 1070
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret
- Max diameter reel rewinder
- 1000
- Coating unit
- 5 rollers staggared
- Corona treatment
- DGM 2000 Ahlbrandt
- Note
- 1 station unit Max cylinder width 1300 Auto flagger RTIS 3 Vacuumatic Supply Voltage 415V 50Hz 350KW 240KVA Cooling water spec 10-12 degrees celcius at 46.6 l/min
| Code Machine | LA420 |
| Fabricant | SCHIAVI |
| Modello | ECO CONVERT 74 C |
| Année | 1996 |
| Application | Lamination + coating |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1300 |
| Speed | 370mpm |
| First unwinder type | Turret |
| Max diameter reel unwinder | 1070 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 1000 |
| Coating unit | 5 rollers staggared |
| Corona treatment | DGM 2000 Ahlbrandt |
| Note | 1 station unit Max cylinder width 1300 Auto flagger RTIS 3 Vacuumatic Supply Voltage 415V 50Hz 350KW 240KVA Cooling water spec 10-12 degrees celcius at 46.6 l/min |
