** SOLD **
A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
about a similar one
- Machine Code
- LA314
- Manufacturer
- UTECO
- Modello
- MISTRAL S
- Year
- 2005
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1230
- Materials
- All flexible packaging film
- Speed
- 300 mpm

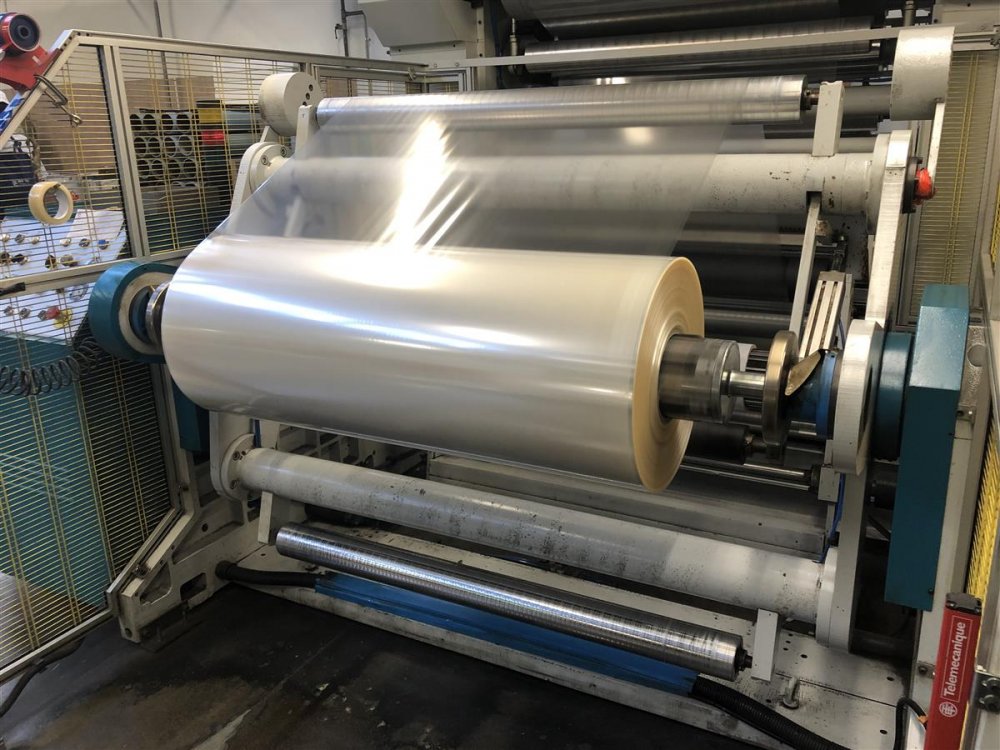

- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret automatic non stop
- Max diameter reel rewinder
- 800

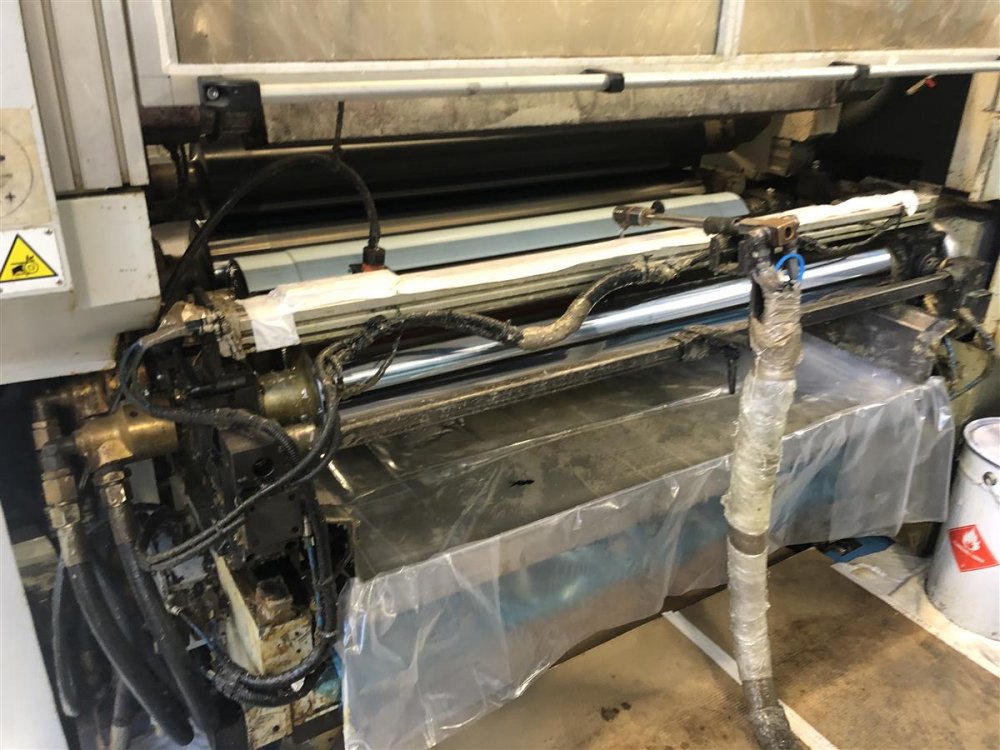

- Coating unit
- Trolley system , one solventless trolley and one gravure trolley
- Drying
- 2 zones , 3 fans , thermo oil heat exchangers
- pumping mixing unit
- Yes VEA ;Matrix year 2012
- Corona treatment
- ues two Corona treaters Ferrarini Benelli , on both unwinders
- Coating rollers
- 40 sleeves
- Note
- **
| Machine Code | LA314 |
| Manufacturer | UTECO |
| Modello | MISTRAL S |
| Year | 2005 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1230 |
| Materials | All flexible packaging film |
| Speed | 300 mpm |
| First unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Turret automatic non stop |
| Max diameter reel rewinder | 800 |
| Coating unit | Trolley system , one solventless trolley and one gravure trolley |
| Drying | 2 zones , 3 fans , thermo oil heat exchangers |
| pumping mixing unit | Yes VEA ;Matrix year 2012 |
| Corona treatment | ues two Corona treaters Ferrarini Benelli , on both unwinders |
| Coating rollers | 40 sleeves |
| Note | ** |
