** SOLD **
Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
Ask more informations
about a similar one
- Machine Code
- LA288
- Manufacturer
- NORDMECCANICA
- Modello
- SIMPLEX COMBI L 1100
- Year
- 2000
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1100
- Speed
- 300m/min
- Max diameter reel unwinder
- 800
- Max diameter reel rewinder
- 800
- Drying
- Oil burner
- pumping mixing unit
- Mixer Dopag 2K processing system Vario Mix 1A PLC LF
- Corona treatment

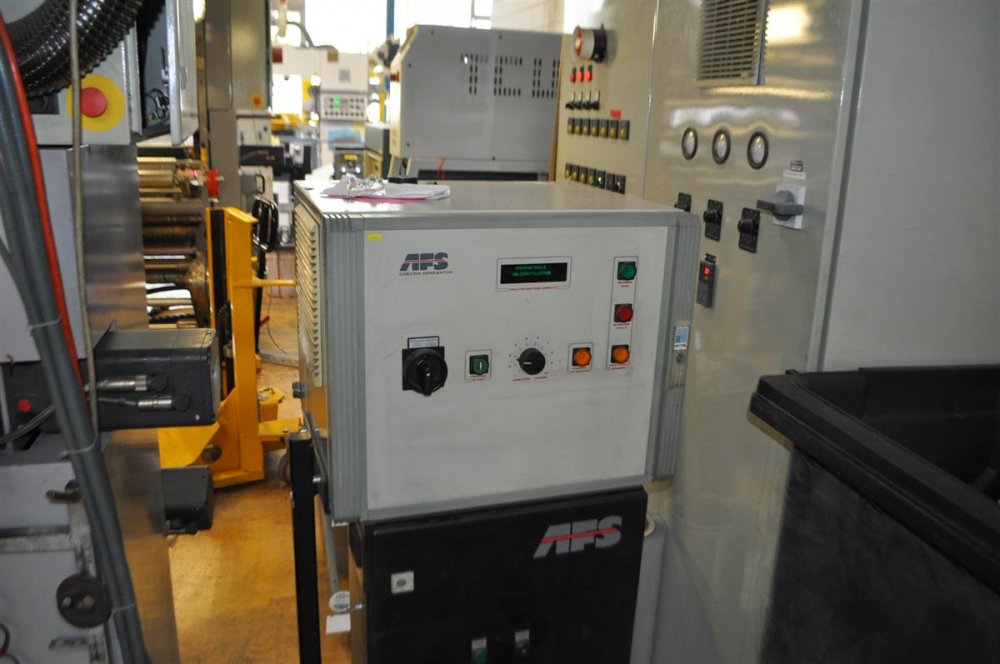

- In-Line Corona Pretreatment AFS Generator G60E (6000W)
- Note
- Film width of the transport roller 1115 mm Max. Laminating width 1100 mm Max. Film width 1130 mm Rollecarrier : single holder with clamping cone Adhesive transport roller system Fixed-axis roller Format Adhesive rollers Winder Core Diameters Core inside diameter 76.0 mm - core outside 90 mm Core inside 152.0 mm - core outside 160.0 mm Cooling trough water Performance cooling unit 2'000 liters / h Max. Pressure cooling unit 5 bar Cooling capacity 8 kW Air pressure 7.0 bar Number of trolleys: 1 for Solventless and 1 for Solvent Number of glue pumps: 1 piece Number of anilox Solvent: 4 pieces
Machine Code | LA288 |
Manufacturer | NORDMECCANICA |
Modello | SIMPLEX COMBI L 1100 |
Year | 2000 |
Application | Duplex lamination |
Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
Working width (mm) | 1100 |
Speed | 300m/min |
Max diameter reel unwinder | 800 |
Max diameter reel rewinder | 800 |
Drying | Oil burner |
pumping mixing unit | Mixer Dopag 2K processing system Vario Mix 1A PLC LF |
Corona treatment | In-Line Corona Pretreatment AFS Generator G60E (6000W) |
Note | Film width of the transport roller 1115 mm Max. Laminating width 1100 mm Max. Film width 1130 mm Rollecarrier : single holder with clamping cone Adhesive transport roller system Fixed-axis roller Format Adhesive rollers Winder Core Diameters Core inside diameter 76.0 mm - core outside 90 mm Core inside 152.0 mm - core outside 160.0 mm Cooling trough water Performance cooling unit 2'000 liters / h Max. Pressure cooling unit 5 bar Cooling capacity 8 kW Air pressure 7.0 bar Number of trolleys: 1 for Solventless and 1 for Solvent Number of glue pumps: 1 piece Number of anilox Solvent: 4 pieces |
