- Codice Macchina
- LA354
- Manufacturer
- SCHIAVI
- Modello
- CONCORDE
- Year
- 1994
- Applicazione
- Coating
- Larghezza lavoro (mm)
- 1220
- Tipo svolgitore primario
- Turret automatic
- Diametro massimo bobina svolgitore
- 1200
- Rewinder type
- Turret automatic
- Diametro massimo bobina avvolgitore
- 1200

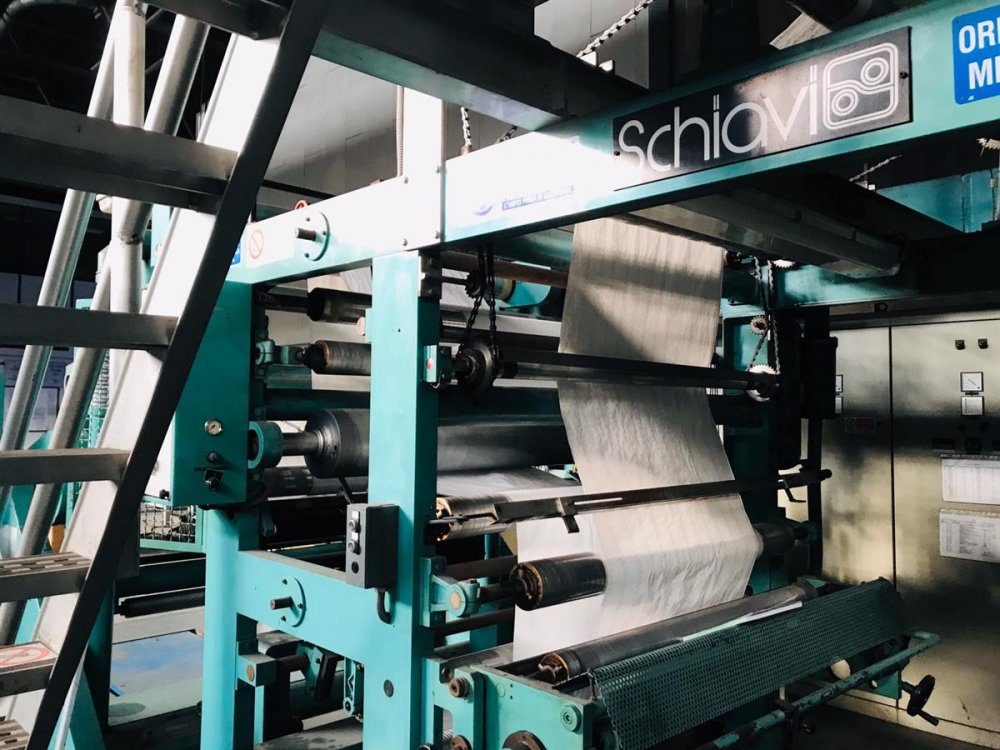

- Unità di spalmatura
- Gravure solvent based
- Seconda unità di spalmatura
- Gravure solvent based

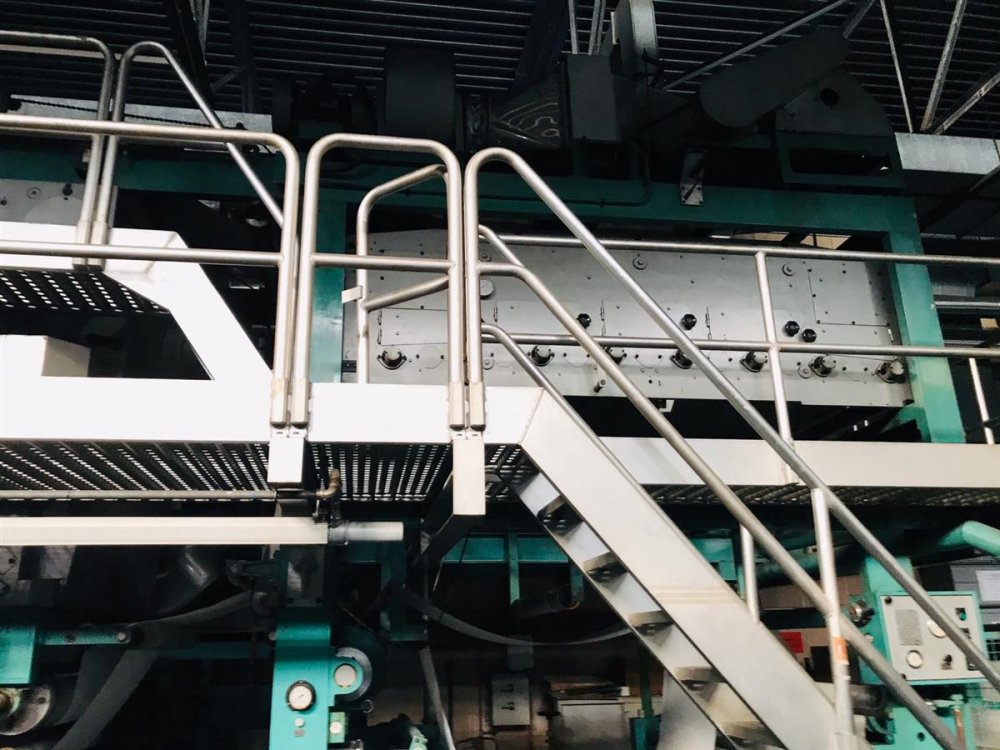

- Essiccazione
- One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners

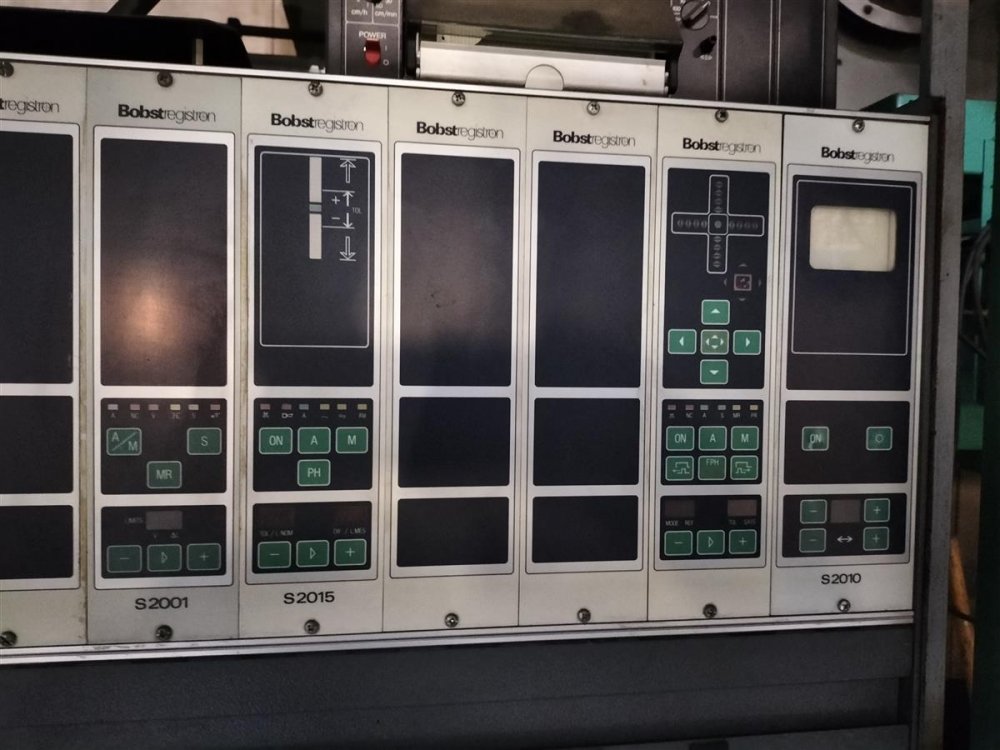

- Controllo di registro
- Yes Bobst Registron before second coating unit
- Ulteriori informazioni
- 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders
| Codice Macchina | LA354 |
| Manufacturer | SCHIAVI |
| Modello | CONCORDE |
| Year | 1994 |
| Applicazione | Coating |
| Larghezza lavoro (mm) | 1220 |
| Tipo svolgitore primario | Turret automatic |
| Diametro massimo bobina svolgitore | 1200 |
| Rewinder type | Turret automatic |
| Diametro massimo bobina avvolgitore | 1200 |
| Unità di spalmatura | Gravure solvent based |
| Seconda unità di spalmatura | Gravure solvent based |
| Essiccazione | One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners |
| Controllo di registro | Yes Bobst Registron before second coating unit |
| Ulteriori informazioni | 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders |
