Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO92
- Manufacturer
- BRUCKNER
- Year
- 1998
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- Max speed 280m/min, max output 2000kg/h depending on materials, as example On 20 my has been running at 1800kg/hat 255m/min
- Width (mm)
- 6600
- Extruder 1 Description
- A - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
- Extruder 2 Description
- B- Main: CASCADE EXTRUDER , melt extruder diam 200mm + metering extruder diam 250mm, 4 components dosing system, output 2000kg/h, DC motor
- Extruder 3 Description
- C - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
- Head description
- Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts
- Die width
- 1025
- Thickness controll system
- Automatic thickness control system. Gauge bet rays
- Chill roll unit
- Chill roll in water bath. Gloss surface finish.
- MDO description
- - 12 x pre-heating rollers (6 chrome plated surface, 6 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts

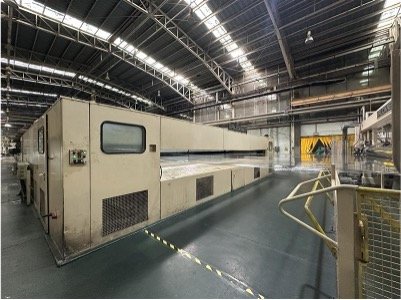

- TDO description
- - Pre heating section 15m length - Stretching section 6m length - Annealing +heat set section 18m length Heating via thermal oil
- Corona treatment
- 2 x MERO treaters
- Pull roll unit
- Thickness gauge, 2 x corona treatments, edge trim, In lince grinder make Hosokawa Alpine
- Rewinder width
- 6600mm net

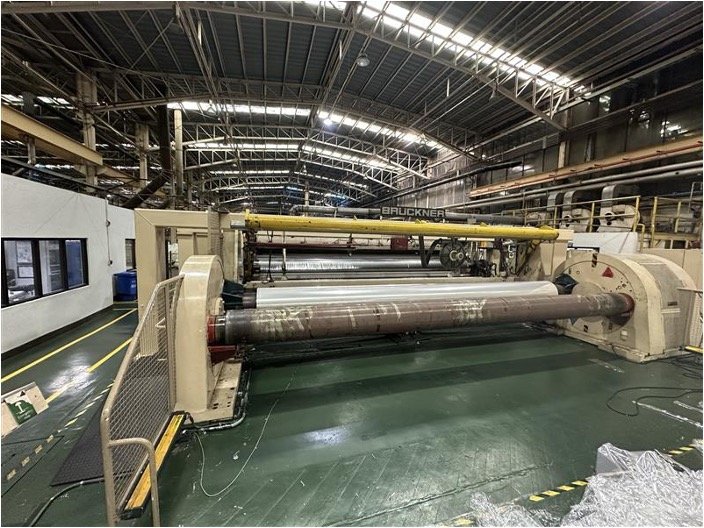

- Rewinder description
- Turret type
- Slitter
- Atlas slitter rewinder, Atlas slitter, Driven unwinder, Rewinder with independent winding stations center driven, 11 x couple of arms/winding stations. driven position of winding stations. Max diam rewinder 1000mm
- Note
- Including also: - Water chiller -Thermal oil heater - Erema recycling machine for start ups and web breaks Main PLC Siemens S7
| Machine Code | BO92 |
| Manufacturer | BRUCKNER |
| Year | 1998 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | Max speed 280m/min, max output 2000kg/h depending on materials, as example On 20 my has been running at 1800kg/hat 255m/min |
| Width (mm) | 6600 |
| Extruder 1 Description | A - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor |
| Extruder 2 Description | B- Main: CASCADE EXTRUDER , melt extruder diam 200mm + metering extruder diam 250mm, 4 components dosing system, output 2000kg/h, DC motor |
| Extruder 3 Description | C - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor |
| Head description | Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts |
| Die width | 1025 |
| Thickness controll system | Automatic thickness control system. Gauge bet rays |
| Chill roll unit | Chill roll in water bath. Gloss surface finish. |
| MDO description | - 12 x pre-heating rollers (6 chrome plated surface, 6 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts |
| TDO description | - Pre heating section 15m length - Stretching section 6m length - Annealing +heat set section 18m length Heating via thermal oil |
| Corona treatment | 2 x MERO treaters |
| Pull roll unit | Thickness gauge, 2 x corona treatments, edge trim, In lince grinder make Hosokawa Alpine |
| Rewinder width | 6600mm net |
| Rewinder description | Turret type |
| Slitter | Atlas slitter rewinder, Atlas slitter, Driven unwinder, Rewinder with independent winding stations center driven, 11 x couple of arms/winding stations. driven position of winding stations. Max diam rewinder 1000mm |
| Note | Including also: - Water chiller -Thermal oil heater - Erema recycling machine for start ups and web breaks Main PLC Siemens S7 |
