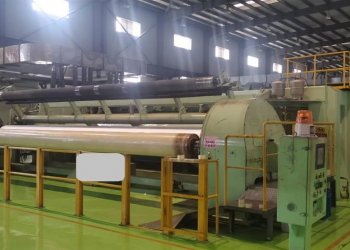

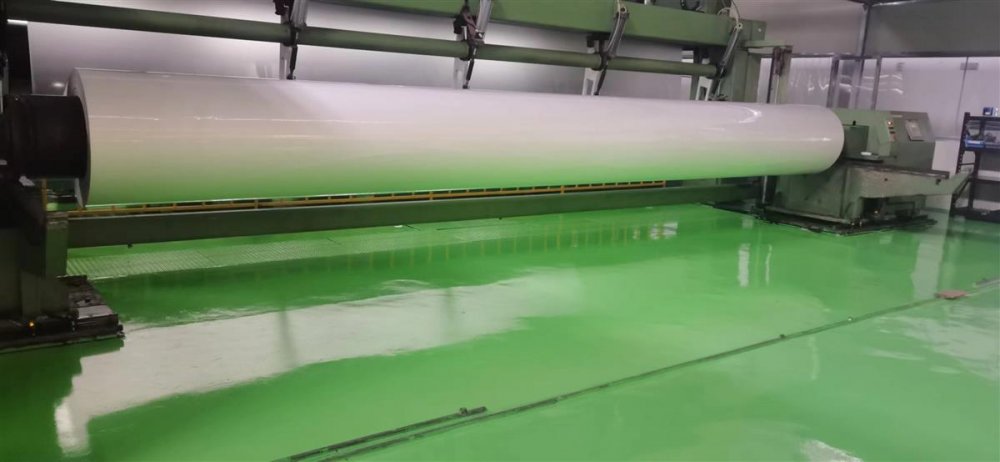

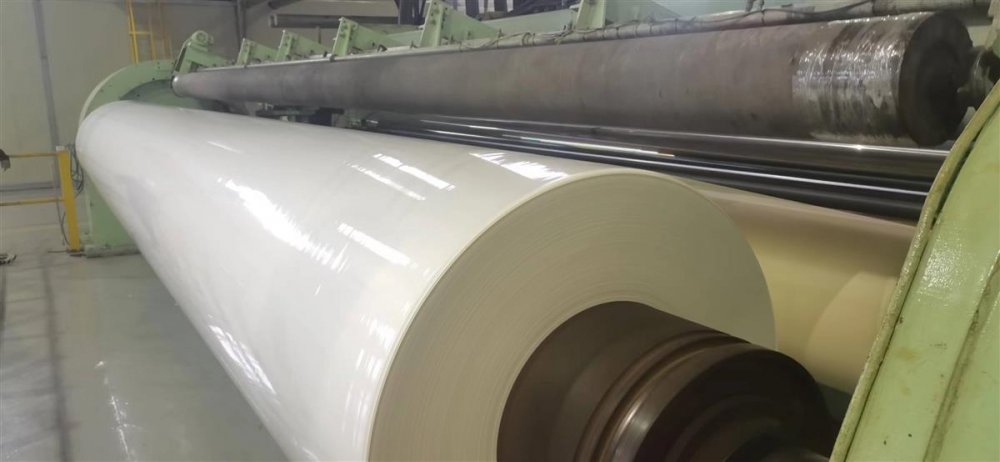

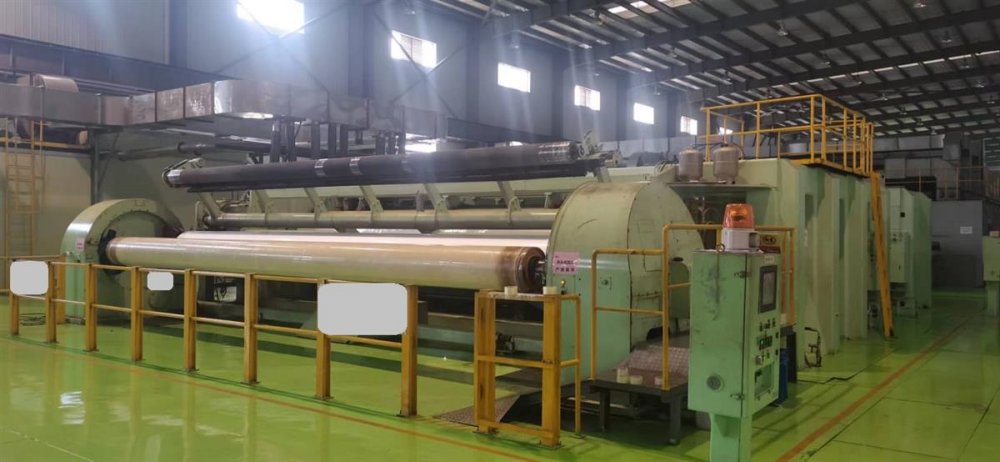

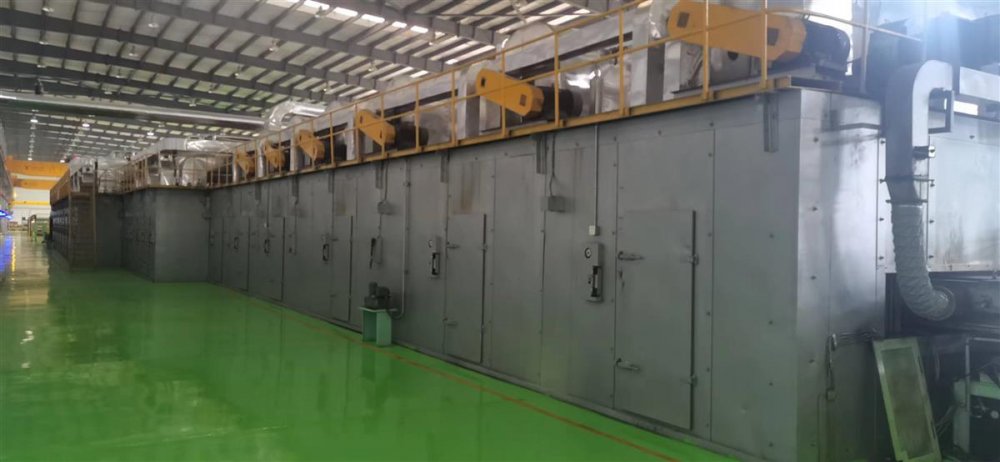

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO75
- Manufacturer
- MITSUBISHI
- Year
- 2003
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- on 15my BOPP 340m/min, on 28my BOPP tape film 320 m/min
- Width (mm)
- 8300
- Rewinder description
- Turret type
- Slitter
- Goebel Monslit. 10x couples of winding arms. Driven position of knives and arms.
| Machine Code | BO75 |
| Manufacturer | MITSUBISHI |
| Year | 2003 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | on 15my BOPP 340m/min, on 28my BOPP tape film 320 m/min |
| Width (mm) | 8300 |
| Rewinder description | Turret type |
| Slitter | Goebel Monslit. 10x couples of winding arms. Driven position of knives and arms. |
BRUCKNER - DORNIER
-
Machine Code: BO76
-
Year: 1994
-
Width (mm): 8300
DMT TDO unit for PVC shrink labels
-
Machine Code: BO68
-
Year: 2004
-
Width (mm): 2500
