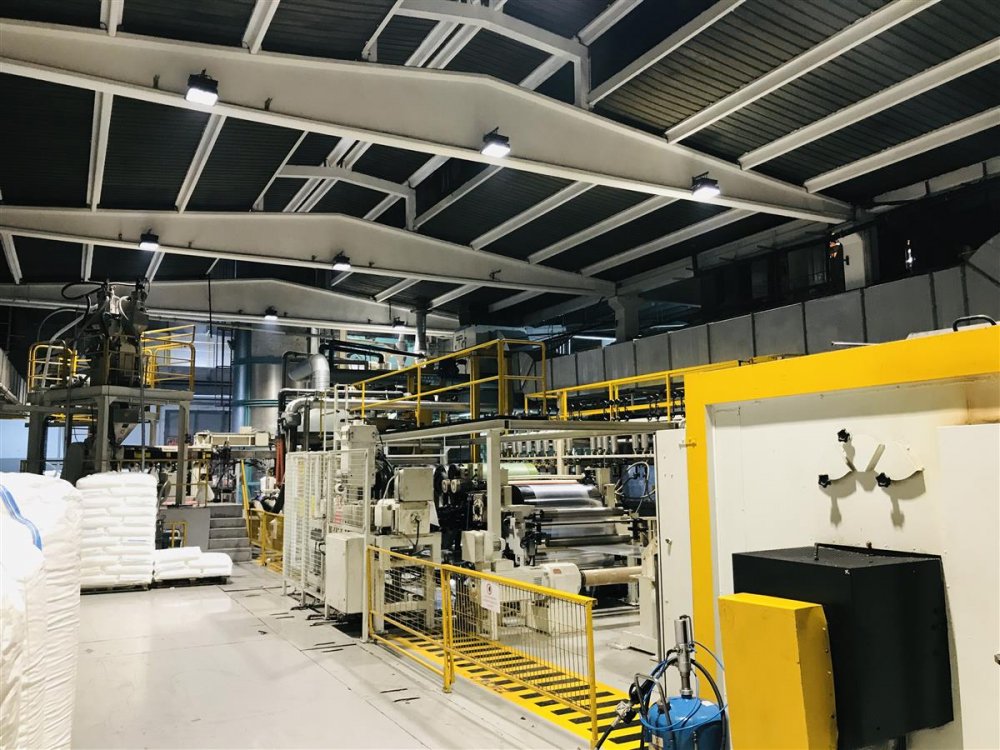

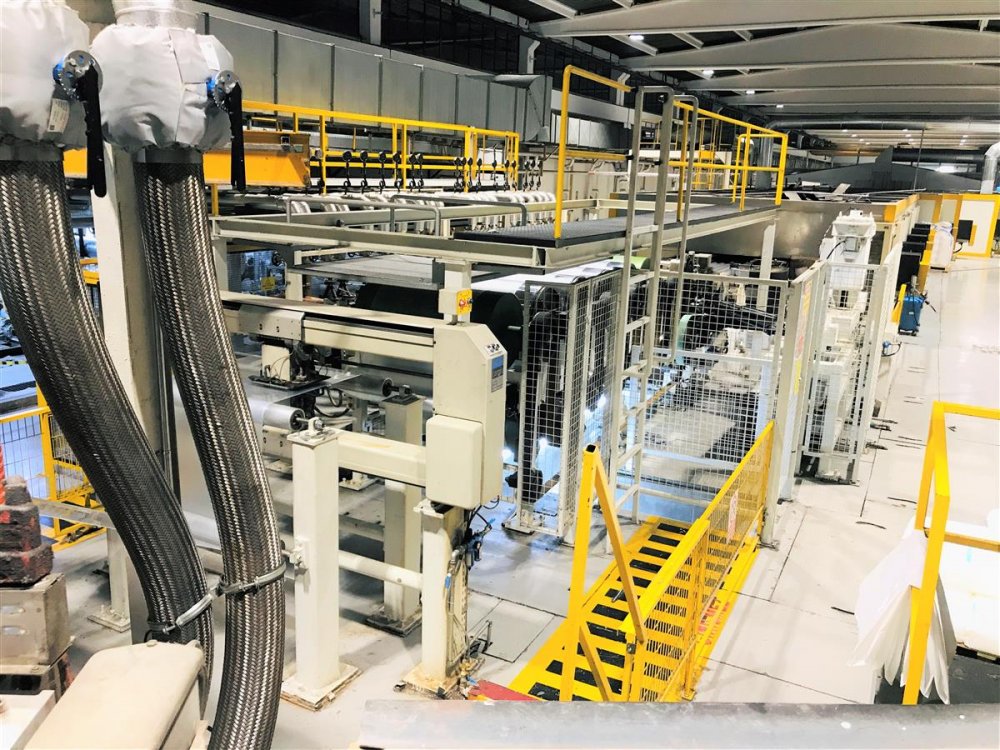

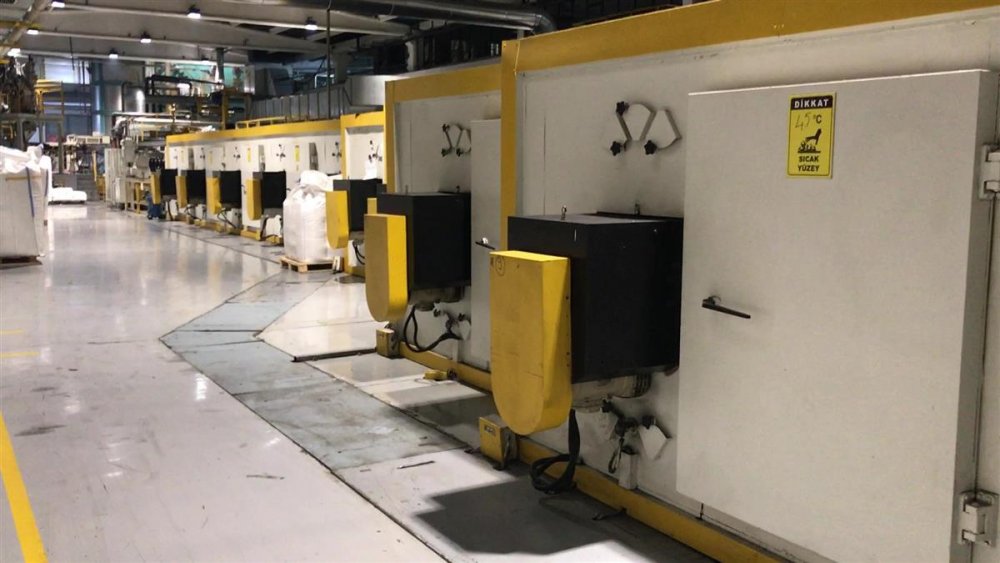

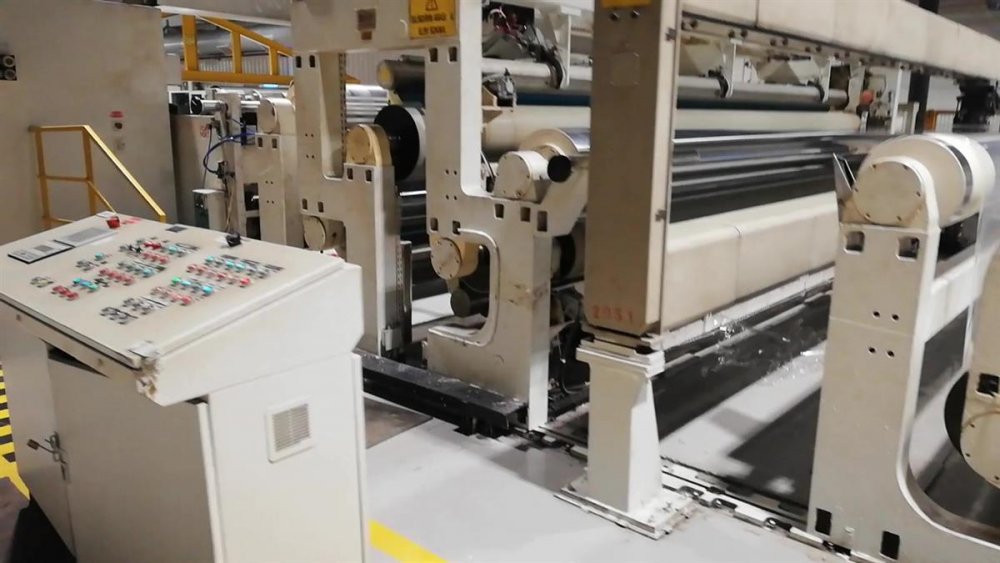

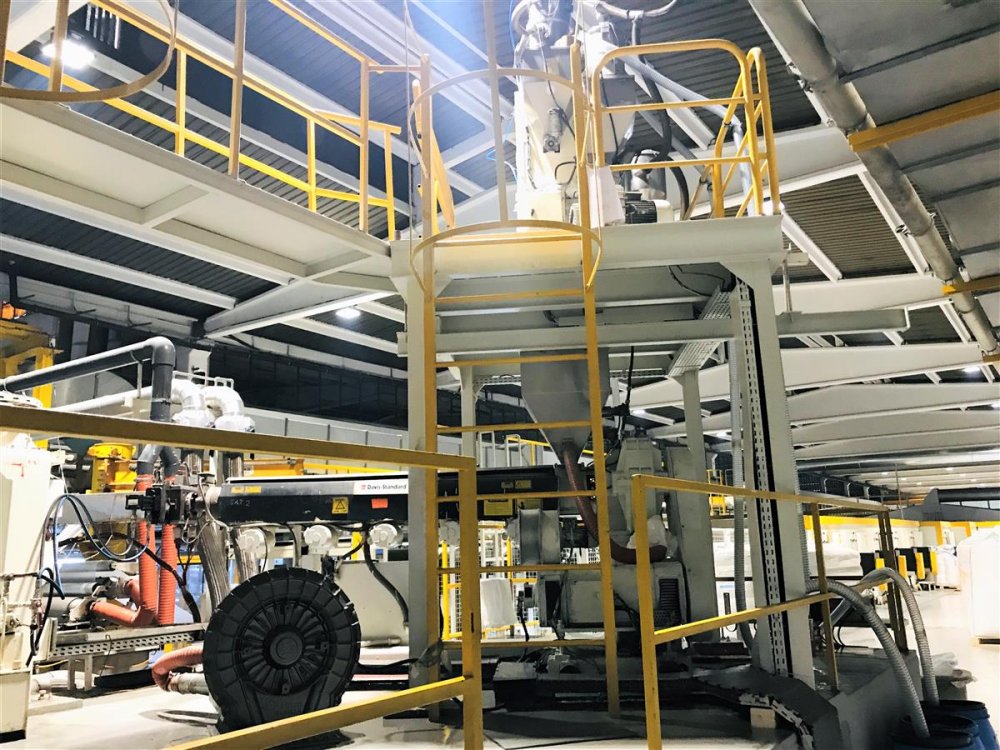

3 layers DMT BOPP BOPP / BOPET tenderframe plant

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.

Ask more informations
Machine Code
BO67
Manufacturer
DMT
Modello
BOPP
Year
1997
Number of layers
3
Film structure
ABA, ABB, BBB, ABCD
Output
12.000 tons/year, 1400 Kg/h
Width (mm)
6500

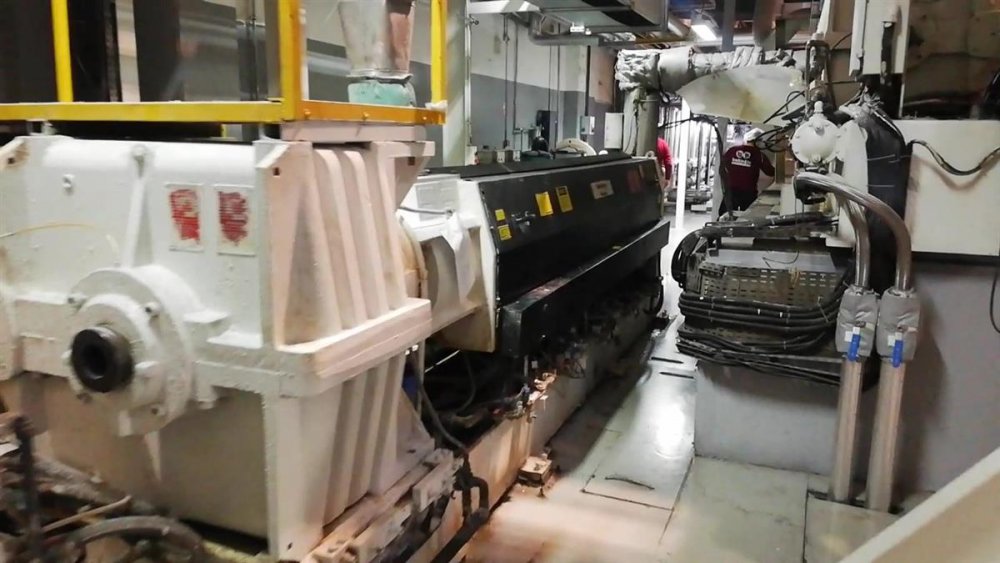

Extruder 1 Description
310mm screw diameter with 5 comp grav.system
Extruder 2 Description
Satellyte 175mm diam screw, with 3 comp gravimetric system
Extruder 3 Description
Satelliyte 200mm diam. screw, with 3 comp gravimetric system
Die width
920mm film
Thickness controll system
Beta rays
Chill roll unit
Diameter 1800mm Width: 1200mm 150mm chrome plated
Corona treatment
Yes

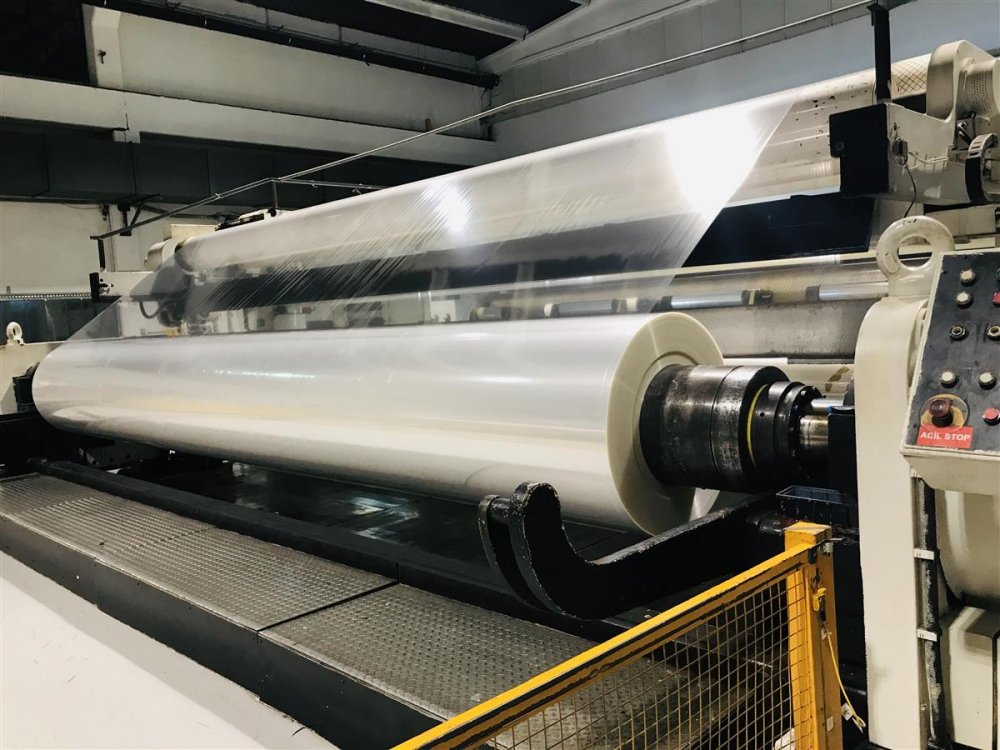

Rewinder width
6500
Slitter
ATLAS
Note
Primary slitter Atlas included Thickness range: 12-50 my Air knife Chilling and oil heating stations are excluded from supply.
Machine Code BO67
Manufacturer DMT
Modello BOPP
Year 1997
Number of layers 3
Film structure ABA, ABB, BBB, ABCD
Output 12.000 tons/year, 1400 Kg/h
Width (mm) 6500
Extruder 1 Description 310mm screw diameter with 5 comp grav.system
Extruder 2 Description Satellyte 175mm diam screw, with 3 comp gravimetric system
Extruder 3 Description Satelliyte 200mm diam. screw, with 3 comp gravimetric system
Die width 920mm film
Thickness controll system Beta rays
Chill roll unit Diameter 1800mm Width: 1200mm 150mm chrome plated
Corona treatment Yes
Rewinder width 6500
Slitter ATLAS
Note Primary slitter Atlas included Thickness range: 12-50 my Air knife Chilling and oil heating stations are excluded from supply.
