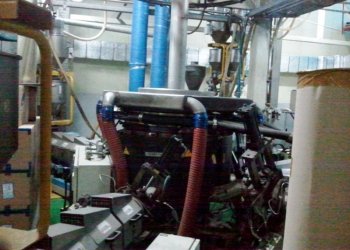

5 layers BANDERA Blown film extrusion line

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Machine Code EX494
Manufacturer BANDERA
Year 2001
Number of layers 5
Material Barrier film with PA, EVOH, lamination film,adhesive resins,
Film Width (mm) 1600
Output (Kg/h) 300 Kg/h
Extruder 1 Layer ref: A
Screw diam 75mm
Description L/D 30 . 4 thermoregulationzones. 90 KW AC motor. Gravimetric dosing units
Extruder 2 Layer ref: B
Screw diam 50mm
Description L/D30, 4 themoregulation zones. 37 KW AC motor.Gravimetric dosing units
Extruder 3 Layer ref: C
Screw diam 65mm
Description L/D 30, 4 thermoregulation zones , 75 kw AC motor.Gravimetric dosing units
Extruder 4 Layer ref: D
Screw diam 50mm
Description L/D30, 4 themoregulation zones. 37 KW AC motor.Gravimetric dosing units
Extruder 5 Layer ref: E
Screw diam 75mm
Description L/D 30 . 4 thermoregulation zones. 90 KW AC motor. Gravimetric dosing units
Head description EXPH 500 CO5 die head. Dies range 450-550mm. Cooling system driving system
Die diam (mm) 500mm
Thickness controll system Yes, KRK
Bubble cage Yes
Take off unit Rotating take off unit . 360° oscillation by AC motor
Corona treatment Yes
Web guide Yes
Rewinder max reel diameter 1200mm
Rewinder description Dancing roller.2 banana rolls. 4 cutter with double blade. 6 expansion mandrels for paper cores 76mm. Crane for mandrel. 2 -motor scrap reel device.
Additional information Thickness 20-150my. Application : functional film for food pack(vacuum, vacuum thermoforming) . Speed 80m/min. Tower frame 10,5M. Total line height 13,2M. Edge trim reclaiming unit EXACT EVOLUTION.
