3 layers MACCHI blown film machine
In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
| Machine Code | EX676 |
| Manufacturer | MACCHI |
| Year | 2006 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, LLDPE, MDPE (in blends HDPE) |
| Film Width (mm) | 1350 |
| Output (Kg/h) | 300 Kg/h |

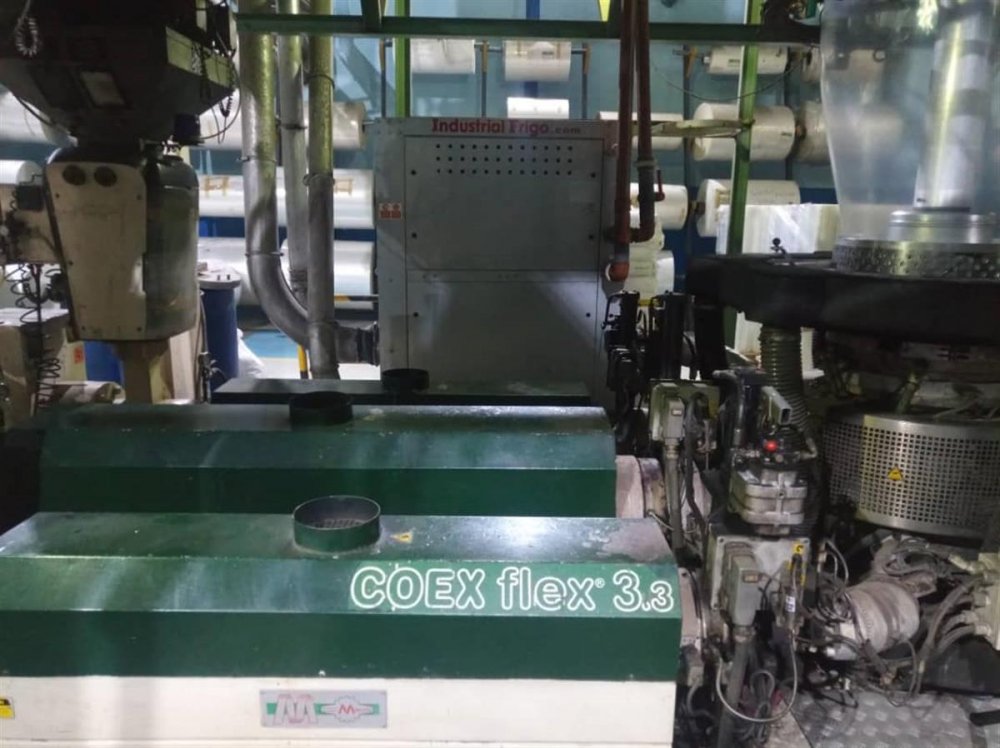

| Extruder 1 Layer ref: | A |
| Screw diam | 65 |

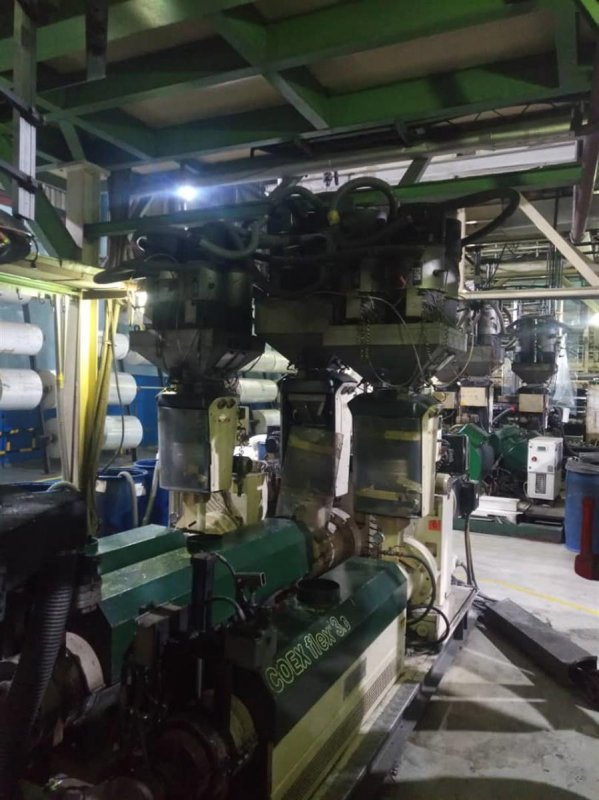

| Description | AC motor, L/D30, DOTECO Gravimetric dosing system, hydraulic screen changer |
| Extruder 2 Layer ref: | B |
| Screw diam | 80 |
| Description | AC motor, L/D30, DOTECO Gravimetric dosing system, hydraulic screen changer |
| Extruder 3 Layer ref: | C |
| Screw diam | 65 |
| Description | AC motor, L/D30, DOTECO Gravimetric dosing system, hydraulic screen changer |

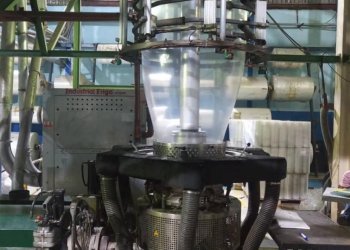

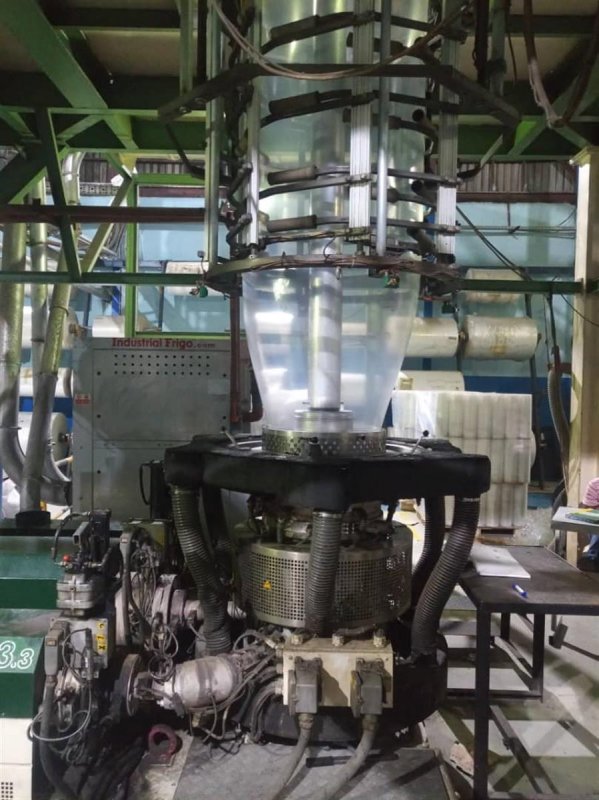

| Head description | Air ring Dual lip ASR3, with IBC |
| Die diam (mm) | 300 2.4mm gap |

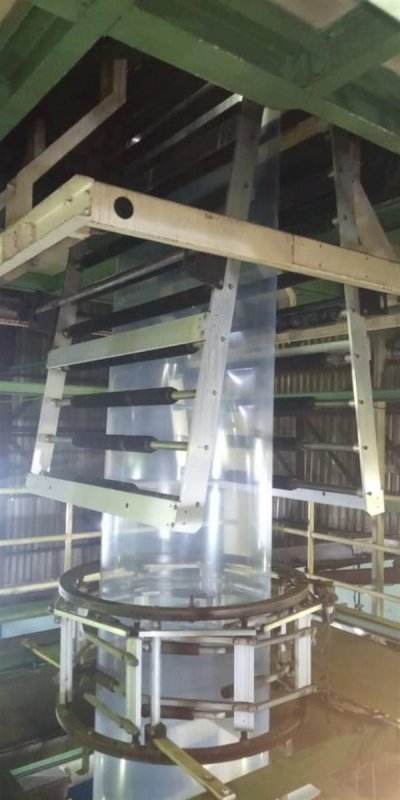

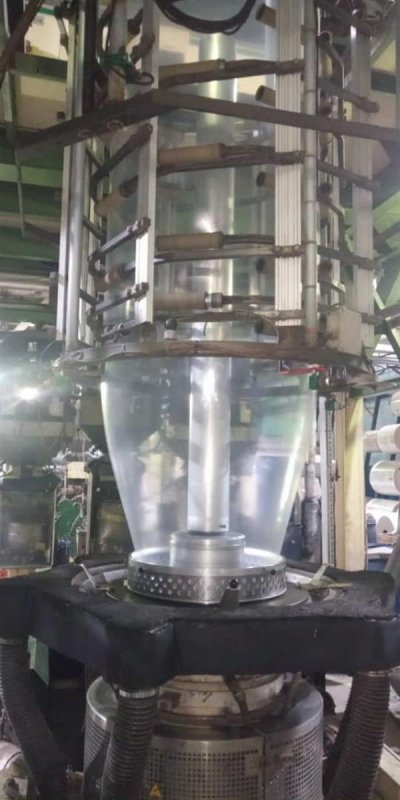

| Bubble cage | Motorized, non Marking model 1450-8-5 |
| Panel for gussets | Yes |
| Take off unit | Rotating |
| Corona treatment | AFS make, Type: SEGMENTED Width:1500 MM 3KW |
| Web guide | E+L |
| Rewinder max reel diameter | 1000 |

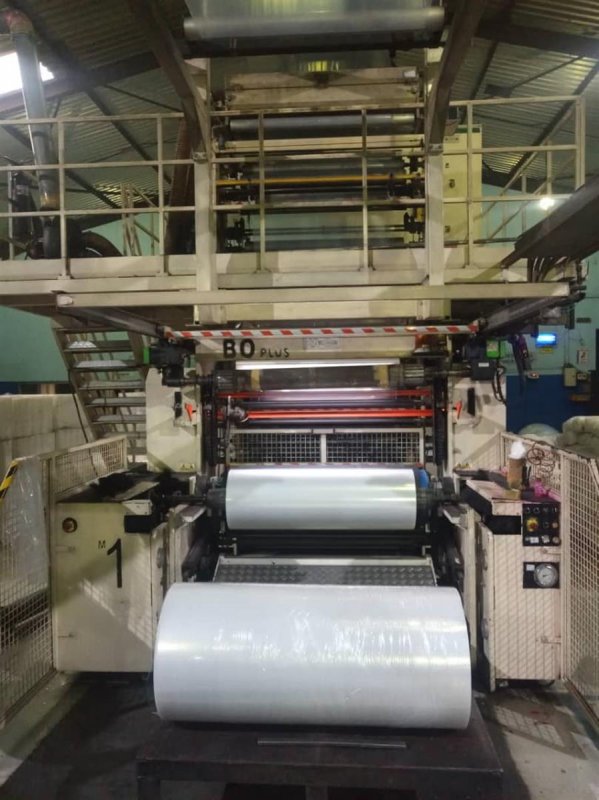

| Rewinder description | Type: BO-PLUS Axial. Contact of gap winding |

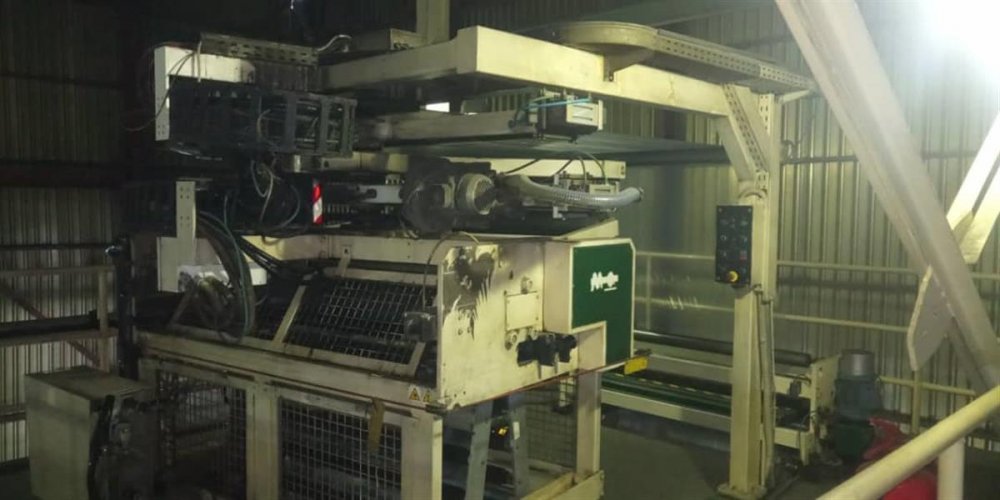

| Additional information | Equipment included: RECOTRIM(PALLETIZER) IBC / OBC new Frigo make chiller bought in year 2017. 3” new air expandable shafts – 5 pcs Haul off has S wrap cooling. |
