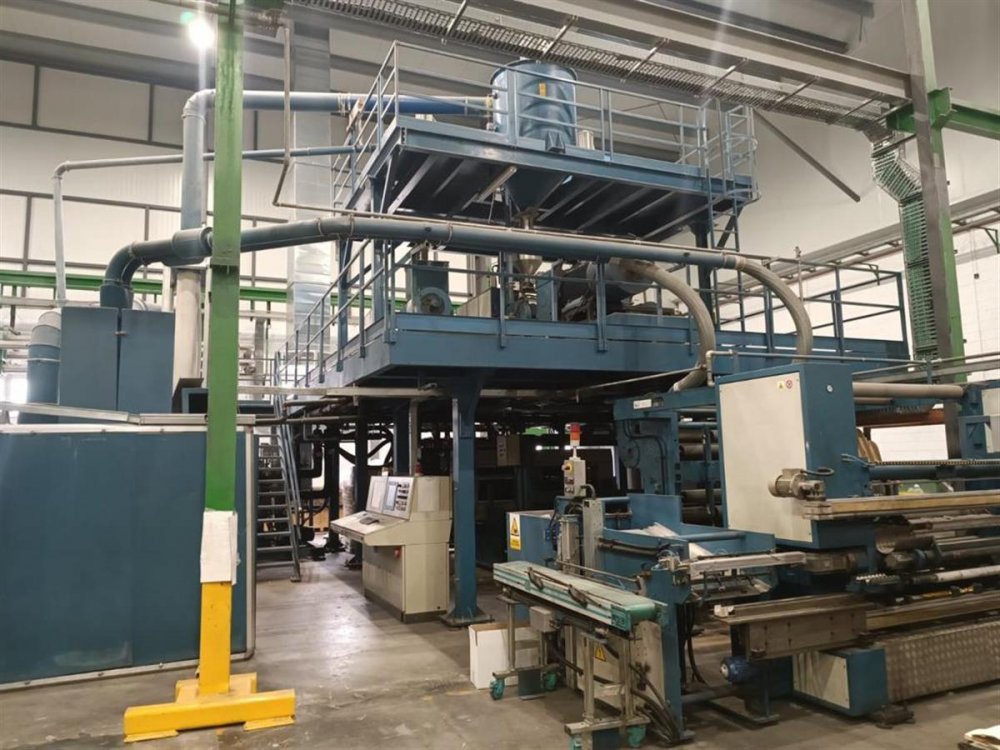

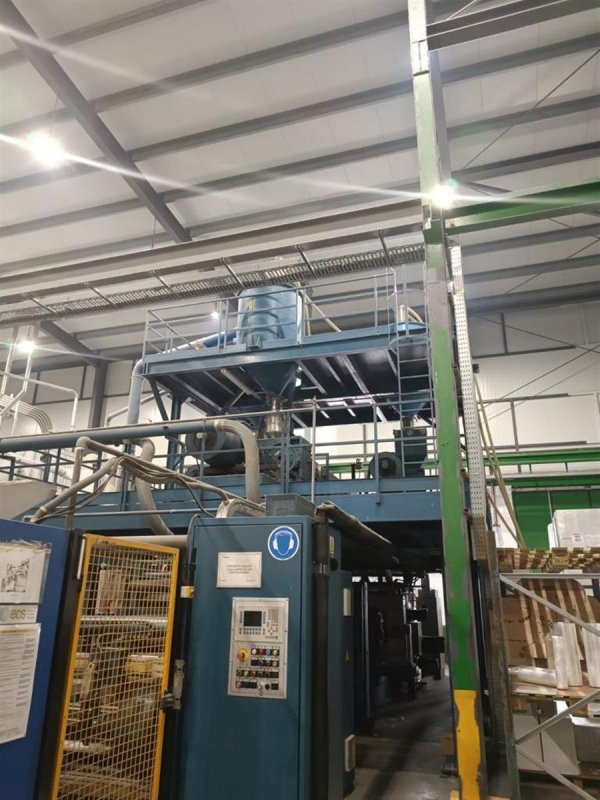

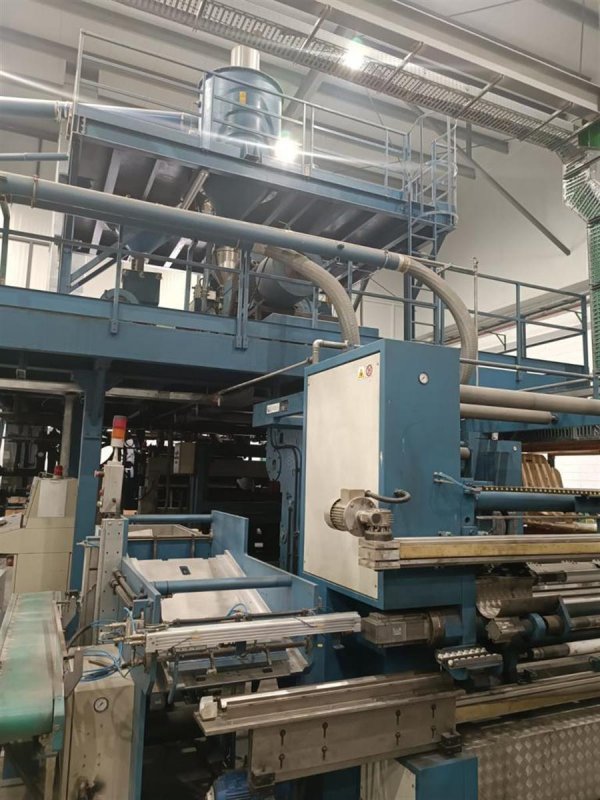

3 layers ADTECH PROVERA HR 1000/3 Cast film extruder

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA206
Manufacturer ADTECH PROVERA
Model HR 1000/3
Year 2005
Number of layers 3
Film structure ABC
Material STRETCH FILM LLDPE
Film width (mm) 1000
Speed (m/min) 600
Output (Kg/h) 550
Extruder 1 Layer ref: A
Screw diam 80mm
Description L/D 30 AC motor
Extruder 2 Layer ref: B
Screw diam 120mm
Description L/D 30 AC motor
Extruder 3 Layer ref: C
Screw diam 80mm
Description L/D 30 AC motor
Head description Make Carraro, Dual chamber vacuum box
Chill roll unit First chill roller 1000mm diam
Thickness controll system Thickness gauge X rays
Web guide Oscillating device
Rewinder max reel diameter (mm) 150
Rewinder description For machine reels. 4 shafts fast change
Additional information in line edge reclaim system
