** SOLD **
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA155
- Manufacturer
- SML
- Year
- 2015
- Number of layers
- 5
- Film structure
- ABCBD
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- 600
- Output (Kg/h)
- 1200
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 60
- Description 1
- L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 90
- Description 2
- L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90
- Description 3
- L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 60
- Description 4
- L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Head description
- 5 ply feedblock,Automatic die, Bivac vacuum box 2 chamber vacuum box, electrostatic edge pinning with 2 charging electrodes each with 3 fingers max 30 KV , pneumatic edge cooling
- Die width (mm)
- 2550
- Chill roll unit
- Chill roll unit model 1000/400; diam first chill roll 1000mm; diam second chill roll 400mm; contact lenght first chill roll 240 deg, Nip roller on second chill, antistatic bar, chill rollers drived by independent servodrives; reel width 2700mm
- Thickness controll system
- Automatic, Die with flex lip automatic control through theral expansion bolts, distance between bolts 25,4mm, Thickness gauge Electronic
- Web guide
- Oscillating frame OF2700
- Rewinder description
- For machine reels and jumbo reels, Turret automatic winder type W4000/Stretch/3"/6up/650, automatic reels extraction and cores loading, ultra light driven CFP contact roller, TC technology: package to enable core with thin wall thickness(3"cores 3mm and 350 grams)
- Note
- Stretch film thicknesses from 8 my up. Complete recycling plant Make starlinger for inline recycling of edges and offline recyling of startups. Output 150-450Kg/h, bimetall barrel and nitrurated screw; water ring system for cuuling and transport; drying centrifuge, reel feeder Winder for jumbo, machine reels
| Machine Code | CA155 |
| Manufacturer | SML |
| Year | 2015 |
| Number of layers | 5 |
| Film structure | ABCBD |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Speed (m/min) | 600 |
| Output (Kg/h) | 1200 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 60 |
| Description 1 | L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 90 |
| Description 2 | L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90 |
| Description 3 | L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 60 |
| Description 4 | L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Head description | 5 ply feedblock,Automatic die, Bivac vacuum box 2 chamber vacuum box, electrostatic edge pinning with 2 charging electrodes each with 3 fingers max 30 KV , pneumatic edge cooling |
| Die width (mm) | 2550 |
| Chill roll unit | Chill roll unit model 1000/400; diam first chill roll 1000mm; diam second chill roll 400mm; contact lenght first chill roll 240 deg, Nip roller on second chill, antistatic bar, chill rollers drived by independent servodrives; reel width 2700mm |
| Thickness controll system | Automatic, Die with flex lip automatic control through theral expansion bolts, distance between bolts 25,4mm, Thickness gauge Electronic |
| Web guide | Oscillating frame OF2700 |
| Rewinder description | For machine reels and jumbo reels, Turret automatic winder type W4000/Stretch/3"/6up/650, automatic reels extraction and cores loading, ultra light driven CFP contact roller, TC technology: package to enable core with thin wall thickness(3"cores 3mm and 350 grams) |
| Note | Stretch film thicknesses from 8 my up. Complete recycling plant Make starlinger for inline recycling of edges and offline recyling of startups. Output 150-450Kg/h, bimetall barrel and nitrurated screw; water ring system for cuuling and transport; drying centrifuge, reel feeder Winder for jumbo, machine reels |
REIFENHAUSER
-
Machine Code: CA234
-
Year: 1998
-
Film width (mm): 3000
COLINES AllRollEx
-
Machine Code: CA202
-
Year: 2016
-
Film width (mm): 1500
REIFENHAUSER
-
Machine Code: CA248
-
Year: 1991
-
Film width (mm): 1550

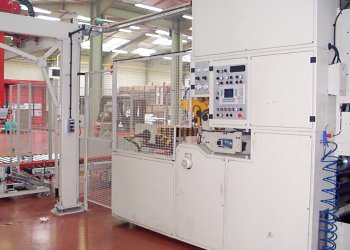

TECHNO COATING ENGINEERING
-
