In Flexo modular presses the printing units are put in line and are all built with separate frames.
Ask more informations
- Machine Code
- FM161
- Manufacturer
- BHS
- Modello
- F-IT- 1000-9F
- Year
- 1996
- Number of colors
- 9
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

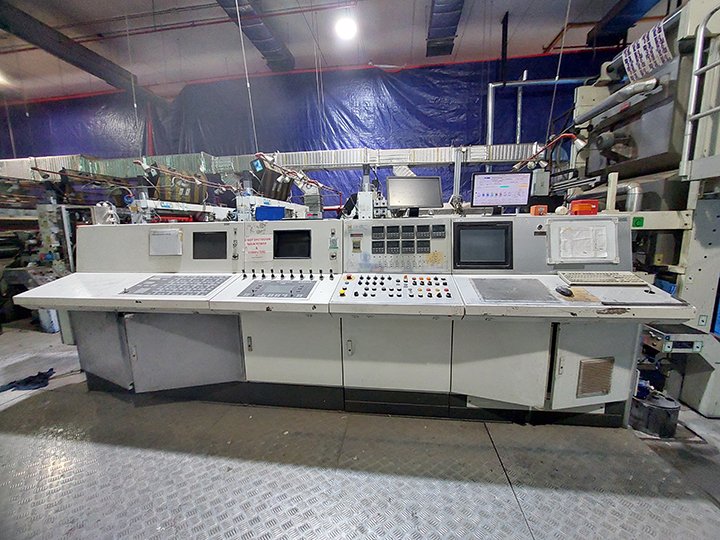

- Computer supervision
- Yes
- Web width (mm)
- 930
- Print width (mm)
- 900
- Drying
- Hot air , each unit 1 to 8 equipped with 1 drier length 1mt, and 1 blowing fan 2800 cu.mt/h last unit 9 for silicon coating equipped with drier 2 mt. lenght and blowing fan 5.600 cu.mt/h , Thermo oil heat exchangers
- Unwinder type

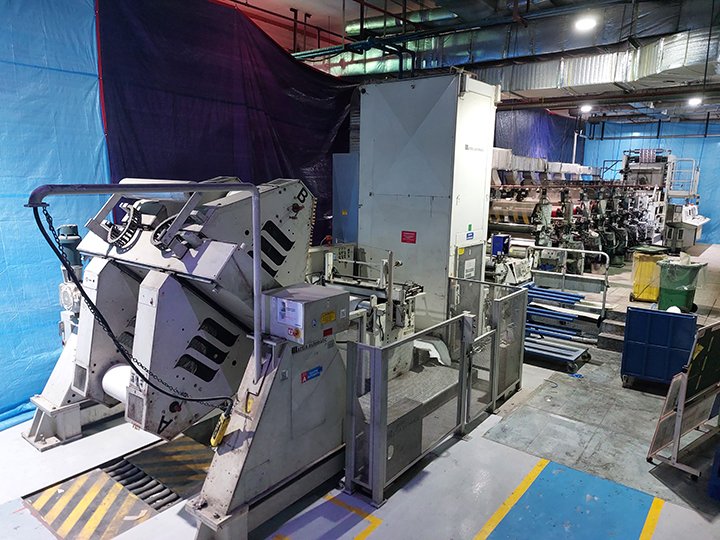

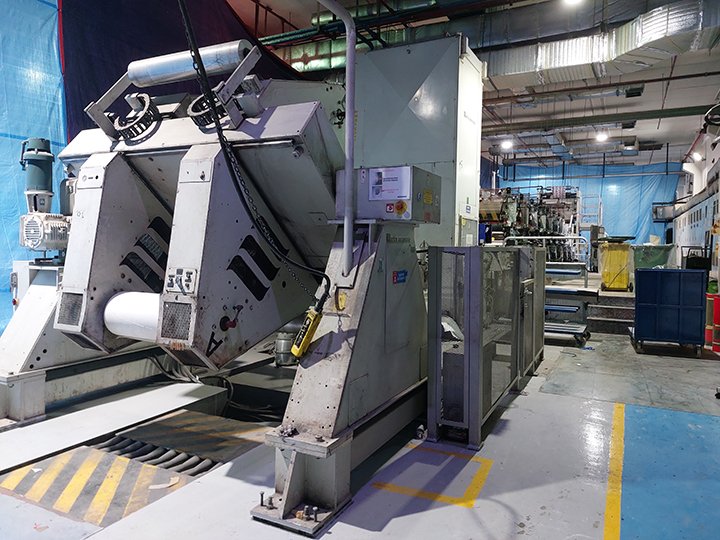

- Martin Automatic Inc, RH Turret Unwinder 40" WW , 72" RD (with Butt Splicer & Festoon, 40" WW)
- Videocamera
- Yes, ELTROMAT, type Web Video 2001
- Washing system
- Yes, TRESU
- Chamber doctor blades
- Yes, TRESU
- Anilox
- 24 pcs
- Print Sleeves
- 28 pcs
- Note
- Automatic register control Eltromat type DGC 650 Web cleaner - KELVA Web break control at infeed and after each print unit Motorized register automatic print pre register system
| Machine Code | FM161 |
| Manufacturer | BHS |
| Modello | F-IT- 1000-9F |
| Year | 1996 |
| Number of colors | 9 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 930 |
| Print width (mm) | 900 |
| Drying | Hot air , each unit 1 to 8 equipped with 1 drier length 1mt, and 1 blowing fan 2800 cu.mt/h last unit 9 for silicon coating equipped with drier 2 mt. lenght and blowing fan 5.600 cu.mt/h , Thermo oil heat exchangers |
| Unwinder type | Martin Automatic Inc, RH Turret Unwinder 40" WW , 72" RD (with Butt Splicer & Festoon, 40" WW) |
| Videocamera | Yes, ELTROMAT, type Web Video 2001 |
| Washing system | Yes, TRESU |
| Chamber doctor blades | Yes, TRESU |
| Anilox | 24 pcs |
| Print Sleeves | 28 pcs |
| Note | Automatic register control Eltromat type DGC 650 Web cleaner - KELVA Web break control at infeed and after each print unit Motorized register automatic print pre register system |
