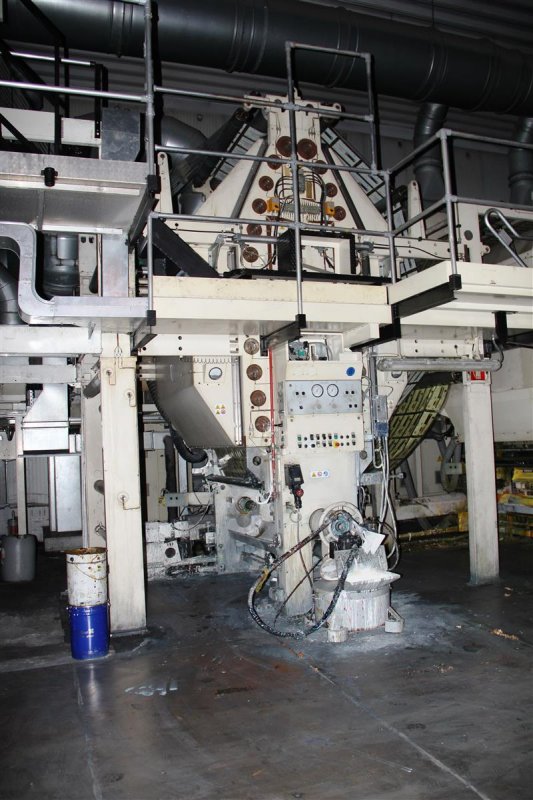

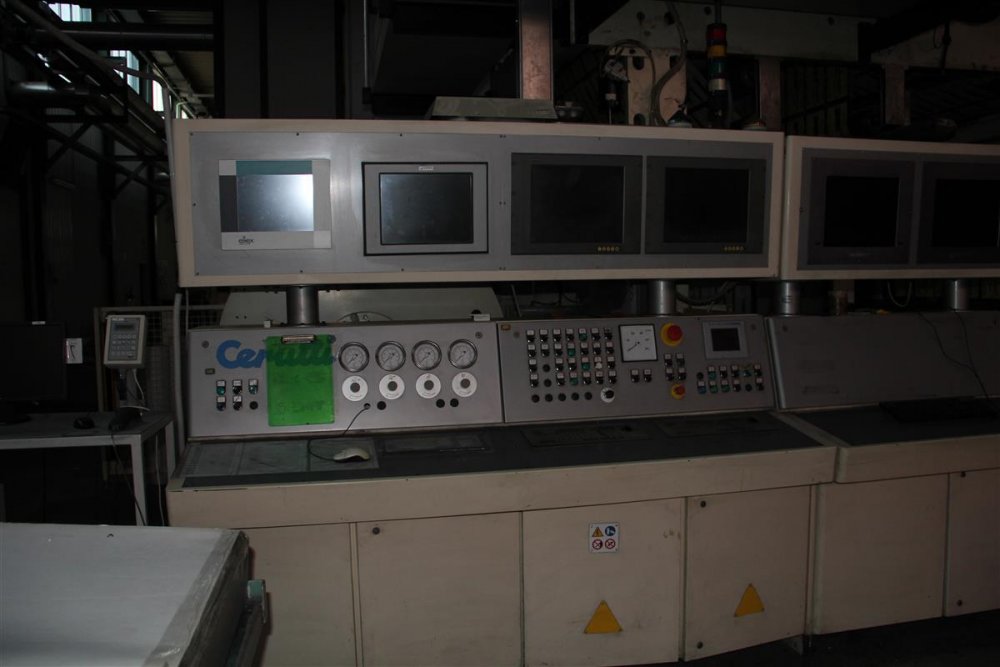

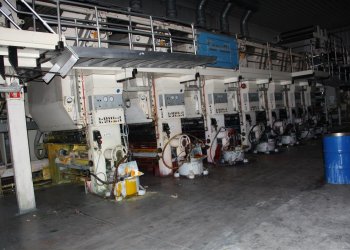

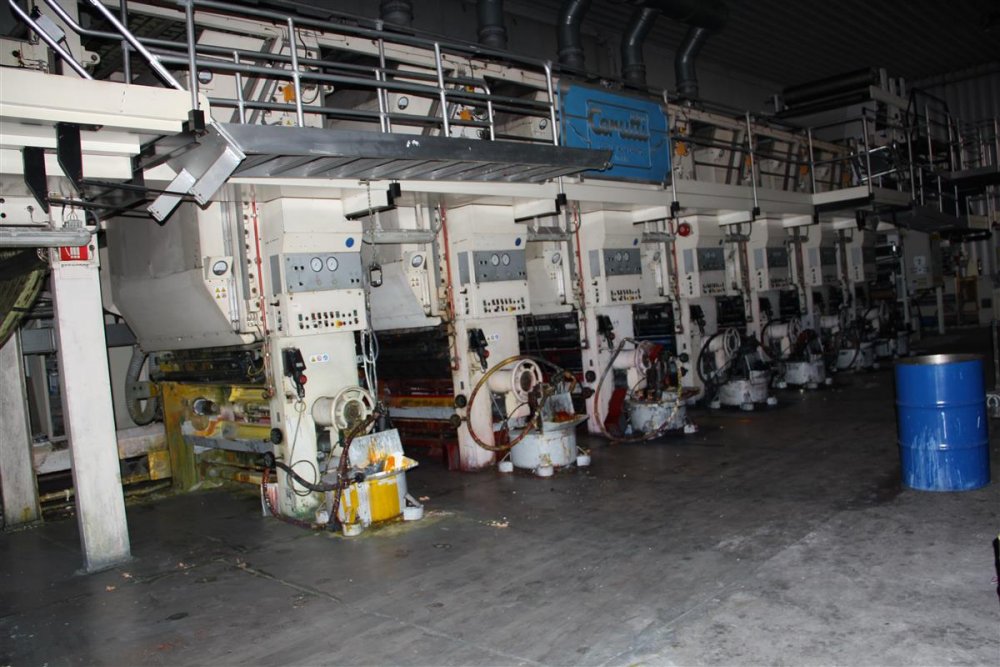

CERUTTI R931 Rotogravure press 10 colors ** SOLD ** Ask more informations about a similar one

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO144
Manufacturer CERUTTI
Model R931
Year 2006
Number of colors 10
Drive Cardan
Trolley system Yes
Web width (mm) 1470
Print width (mm) 1420
Print repeat range (mm) 400-900 mm
Drying specifications 7 units (2-8 Single drying Hood 2,5mt - 1 blowing fan for each unit); 2 units(1 & 9 - with double hood 2x3mt and 2 blowing fans) ; 1 unit (10 - 2 extended hoods 2x3,6 mt with 2 blowing fans)
Drying heat surce Thermo Oil

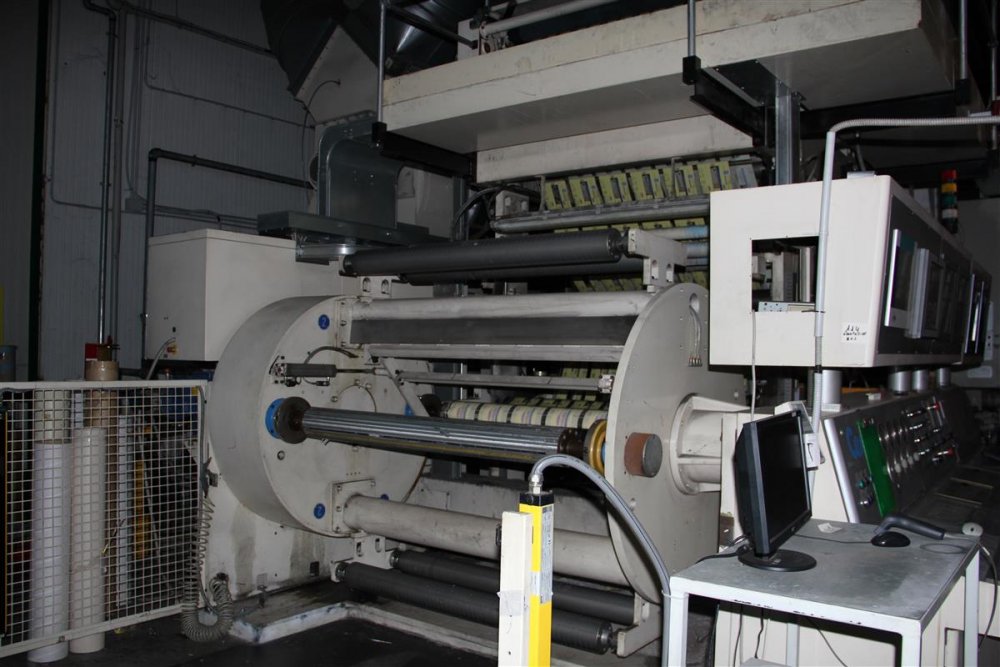

Unwinder type Automatic Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Automatic Turret
Max reel diameter rewinder (mm) 1000
Videocamera Yes
Register control Yes
Vyscosity control Gamma VIS G25
Corona treatment Yes, Double Side Mero
Additional information Preconditioning Hood

** SOLD **
