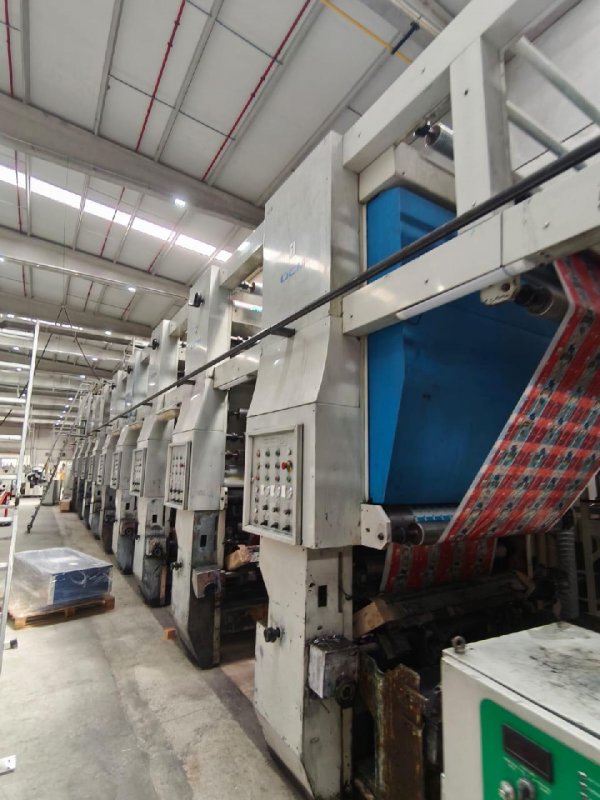

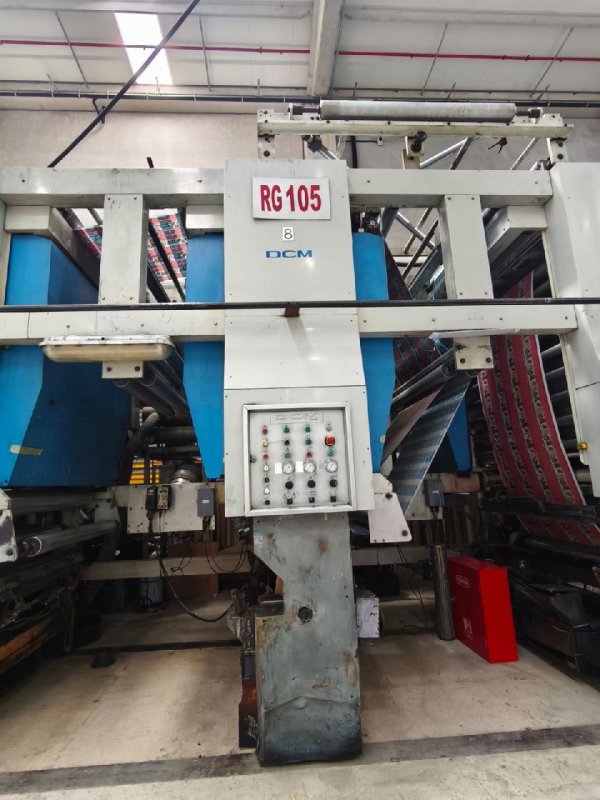

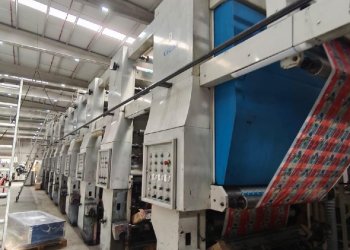

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO275
- Manufacturer
- DCM
- Modello
- Brio
- Year
- 2005
- Number of colors
- 9
- Print possibilities
- 9+0 , 8+1
- Drive
- Cardan
- Web width (mm)
- 1300
- Print width (mm)
- 1200
- Print repeat range (mm)
- min. 400mm, max. 1000mm
- Drying heat surce
- 1 blowing fan ach unit, 1 general exhaust fan , heating by thermo oil heat exchangers , one heater each unit . Included thermo oil boiler Maxon 1100 kW
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Videocamera
- BST camera systems movable
- Register controll
- Eltromat
- Corona treatment
- Sherman GX 40R 4 Kw
- Print cylinders
- 350 shaft cylinders
- Note
- Turning bar
| Machine Code | RO275 |
| Manufacturer | DCM |
| Modello | Brio |
| Year | 2005 |
| Number of colors | 9 |
| Print possibilities | 9+0 , 8+1 |
| Drive | Cardan |
| Web width (mm) | 1300 |
| Print width (mm) | 1200 |
| Print repeat range (mm) | min. 400mm, max. 1000mm |
| Drying heat surce | 1 blowing fan ach unit, 1 general exhaust fan , heating by thermo oil heat exchangers , one heater each unit . Included thermo oil boiler Maxon 1100 kW |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | BST camera systems movable |
| Register controll | Eltromat |
| Corona treatment | Sherman GX 40R 4 Kw |
| Print cylinders | 350 shaft cylinders |
| Note | Turning bar |
