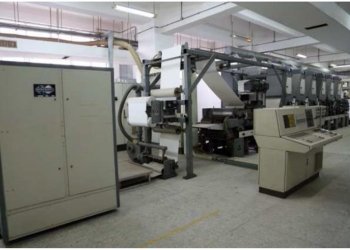

6 colors KOMORI CHAMBON 650NL Gravure printing machine

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO140
Manufacturer KOMORI CHAMBON
Model 650NL
Year 1996
Number of colors 6
Web width (mm) 650
Print width (mm) 650
Print repeat range (mm) 310-620
Rewinder type AUTOMATIC FLYING BUTT SPLICER
Additional information Machine for cigarette packets Web flow (operator’s view): right to left Max. mechanical speed:180 m/min. Max. production speed: 150 m/min. or 400 revolutions/mn (*) (*) The quality of the substrate; its grammage, its thickness and the shape of blank determine maximum production speed. Substrate :200 to 500 gsm, Board Register accuracy (*) :print to print +/- 0.10 mm Cut to print +/- 0.20 mm (*) All these register specification accuracies are given for 95% of cartons. Electrical specifications:380 V +/- 10%, 3 phases and neutral, 50 Hz +/- 2% Utilities requirements: power installed 290 KVA Compressed air 100 Nm/3-6 bars Chilled water 156 m3Hh – 3/6 bars – 12° to 15° C ROTARY DIE CUTTER Minimum repeat: 500 mm Maximum repeat:1000 mm (by change opf tooling set) Max. web width:650 mm Shingle delivery:Carton length :95 to 620 mm Carton width:140 to 650 mm Number of cartons across 1 to 4* (*) In standard machine configuration rotary die cutter is equipped for 2 cartons across. ONE AUTOMATIC FLYING BUTT SPLICER Min. web width 325 mm Max. reel diameter 1350 mm Manual lateral adjustment +/-30 mm Two spindle turnover reel stand. Web unwinding: printed surface out Automatic splicing without production speed reduction Euipped with 2 pneumatic spindles (12” diameter) ONE WEB CLEANER Including static neutralizing device Two heads for both web sides Dust collector ONE LATERAL WEB GUIDE Web guiding by web center line Correction range +/- 15 mm Accuracy +/- 0.10 mm

Others in the same category:

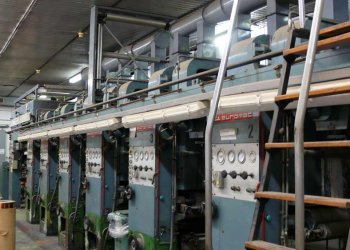

8184 - EUROMAC MIGAM-9X

EUROMAC MIGAM-9X

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 1000

Year: 1980

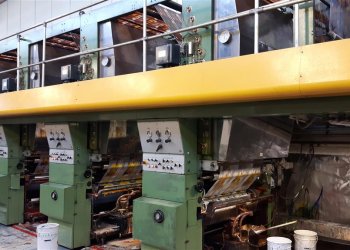

156146 - UTECO PROGRAMM 120
