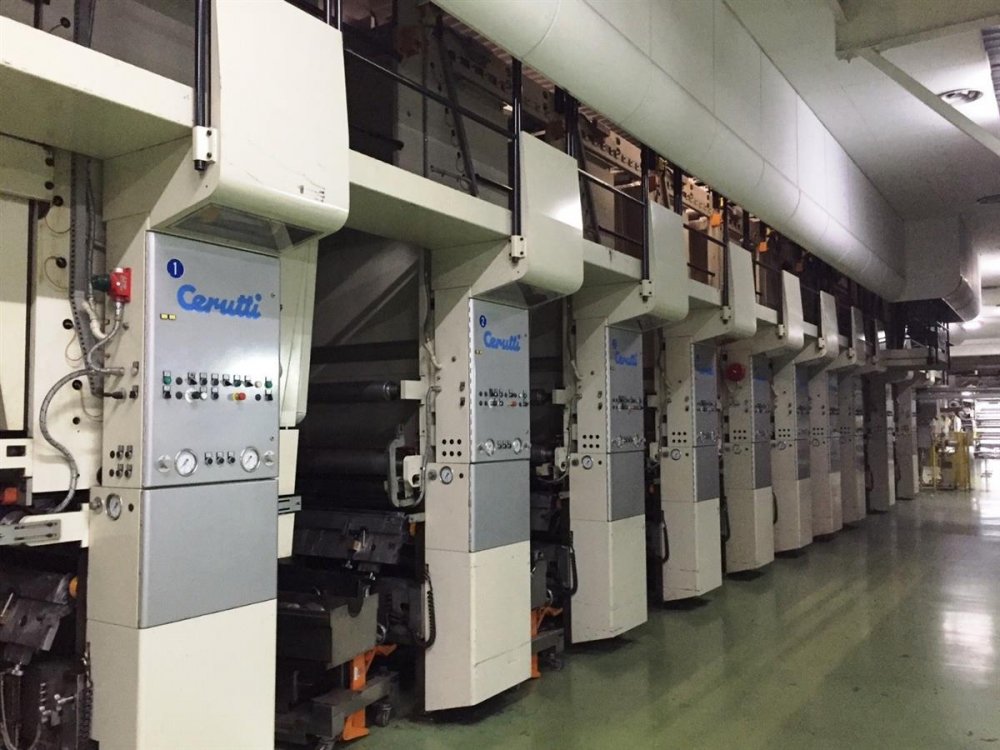

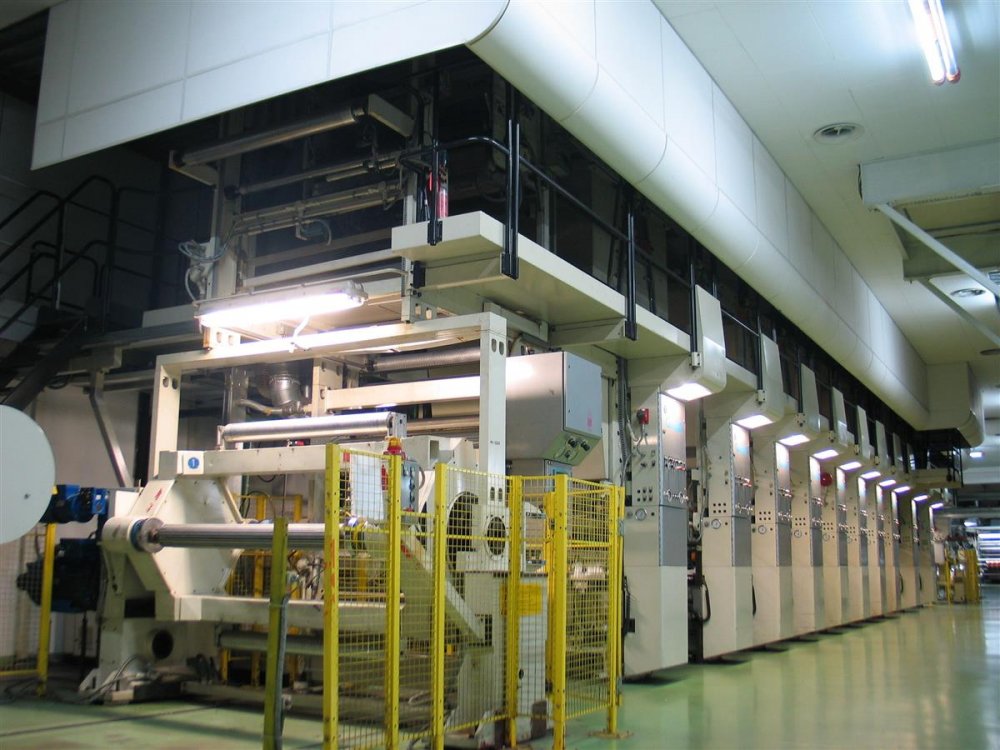

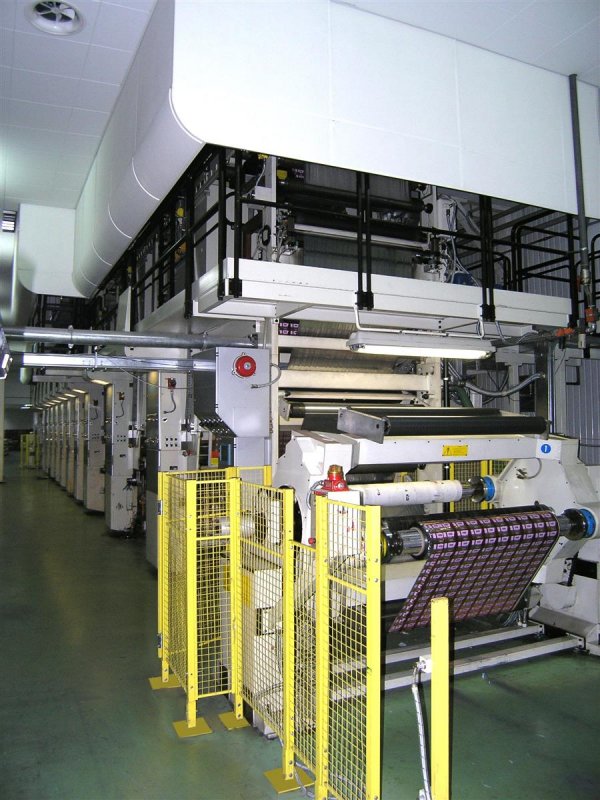

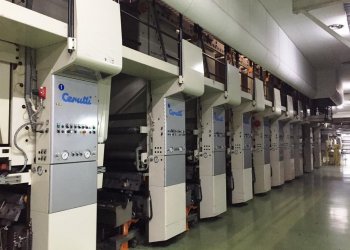

CERUTTI R 960 Rotogravure press 10 colors
Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Machine Code | RO149 |
Manufacturer | CERUTTI |
Model | R 960 |
Year | 2001 |
Number of colors | 10 |
Print possibilities | 10 colors; 3 printing groups with double hood , first group in reverse |
Drive | Electronic shaft |
Trolley system | Yes |
Web width (mm) | 1300 |
Print width (mm) | 1250 |
Print repeat range (mm) | 450-950 mm |
Drying specifications | Unit 9 and 10 with double hoods 5.7 M Air vol 10.000 m3/h,others with single hoods 2.7m air vol 7700m3/h |
Drying heat surce | Thermal oil |
Unwinder type | Flying splice turret |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Flying splice turret |
Max reel diameter rewinder (mm) | 1000 |
Videocamera | AVT 2 side |
Register control | Eltromat |
Vyscosity control | 10 viscometers GAMA; 20 ink pumps |
Corona treatment | Mero |
Print cylinders | Printing cilynders sleeves.Pressure rollers sleeves |
Additional information | Gearless rotogravure press 10 colors in register or 9 colors + cold seal in register Speed:350mpm Ink Solvent base Applied Substrates: Paper 50-100 g / m2 BOPP 18-40 microns PET 12-20 mm OPA 12-20 microns PP 12-50 microns CE mark; 20 shaft ; 20 printing trolleys; |
