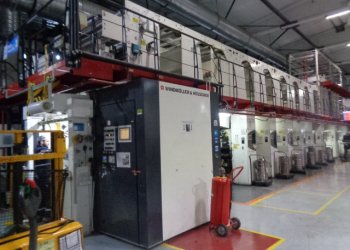

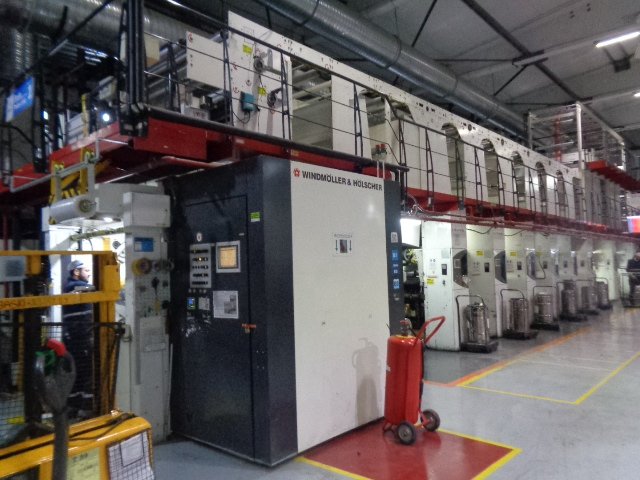

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO276
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Heliostar GL
- Year
- 2006
- Number of colors
- 8
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1220
- Print width (mm)
- 1200
- Drying specifications
- Thermal oil. Units 1-6 single hood. Units 7 and 8 double extended
- Drying heat surce
- Thermal oil
- Unwinder type
- Tutter
- Max reel diameter unwinder (mm)
- 1300
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1300
- Videocamera
- BST IPG with 100% inspection camera + Matricial camera. Entire web inspection is of year 2021
- Register controll
- BST-Eltromat Registar 20. year 2021
- Vyscosity control
- Automatic from Game year 2015
- Corona treatment
- AFS 2 sided
- Note
- LEL, make: Operational PLC: B&R Electro static assistance Eltex ES53 Web cleaning Kelva Turning bar
| Machine Code | RO276 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Heliostar GL |
| Year | 2006 |
| Number of colors | 8 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1220 |
| Print width (mm) | 1200 |
| Drying specifications | Thermal oil. Units 1-6 single hood. Units 7 and 8 double extended |
| Drying heat surce | Thermal oil |
| Unwinder type | Tutter |
| Max reel diameter unwinder (mm) | 1300 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1300 |
| Videocamera | BST IPG with 100% inspection camera + Matricial camera. Entire web inspection is of year 2021 |
| Register controll | BST-Eltromat Registar 20. year 2021 |
| Vyscosity control | Automatic from Game year 2015 |
| Corona treatment | AFS 2 sided |
| Note | LEL, make: Operational PLC: B&R Electro static assistance Eltex ES53 Web cleaning Kelva Turning bar |
