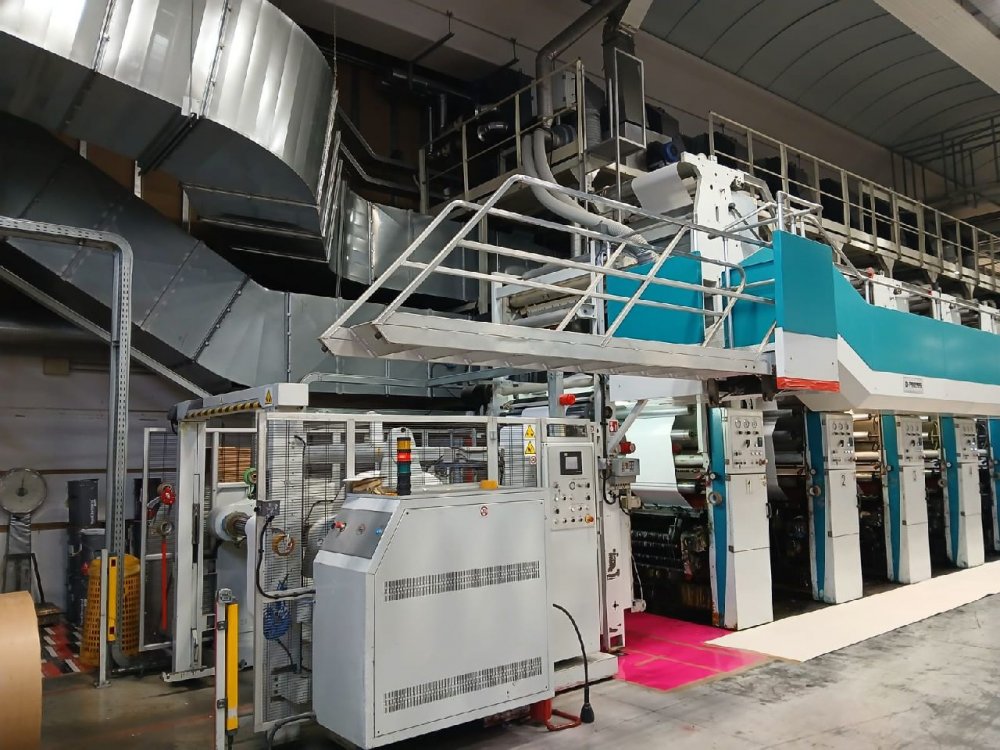

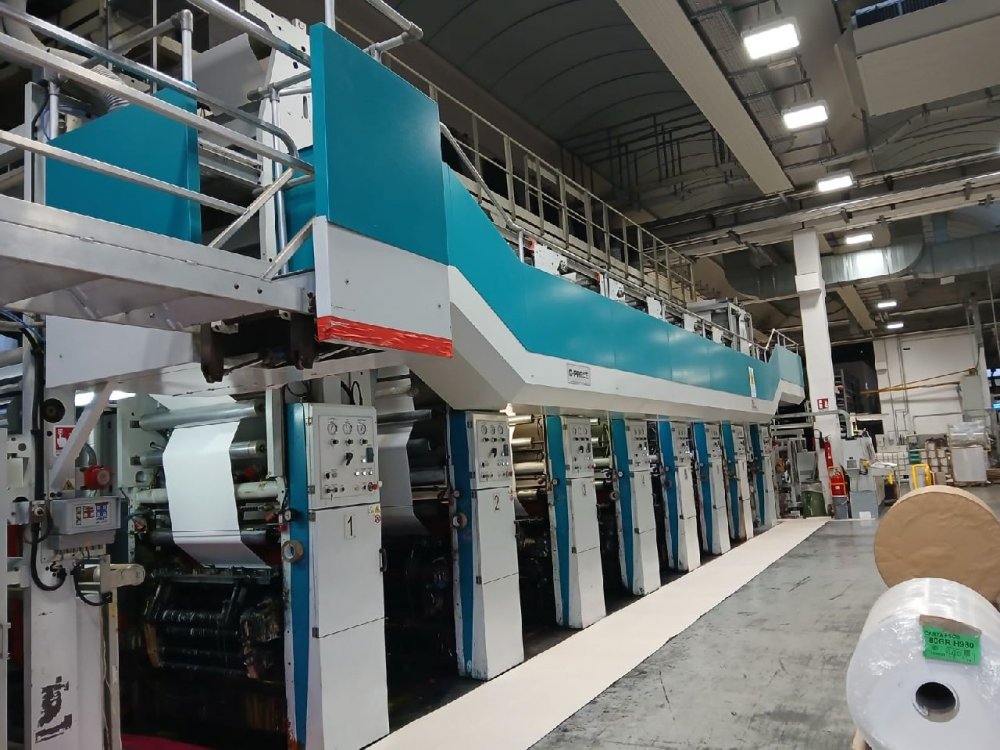

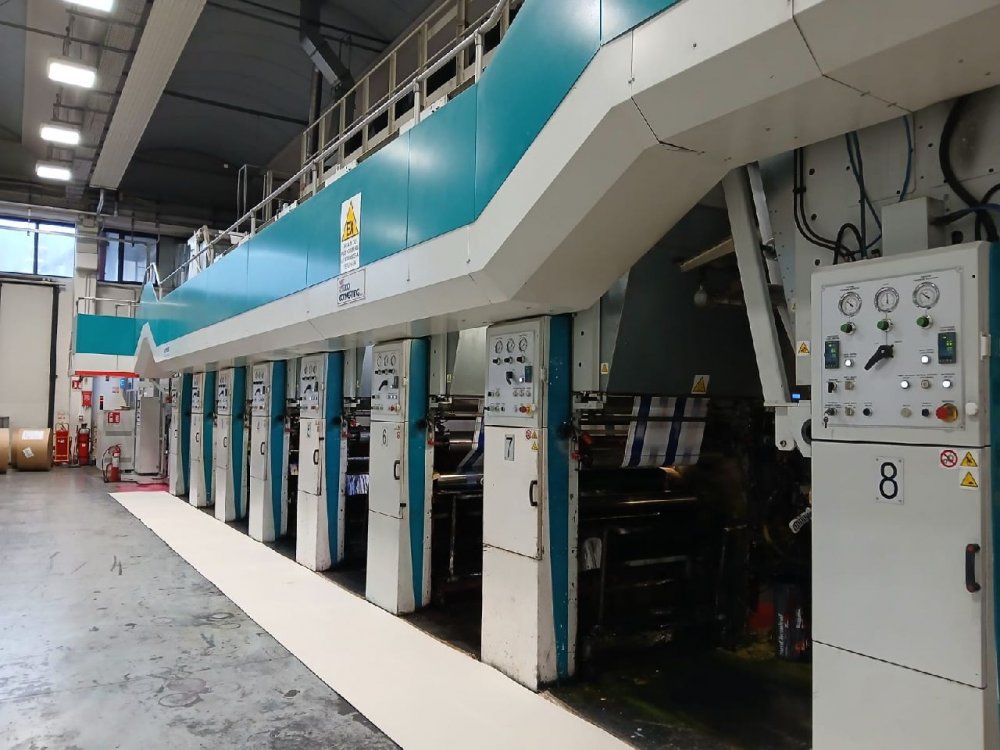

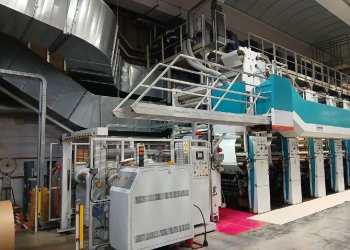

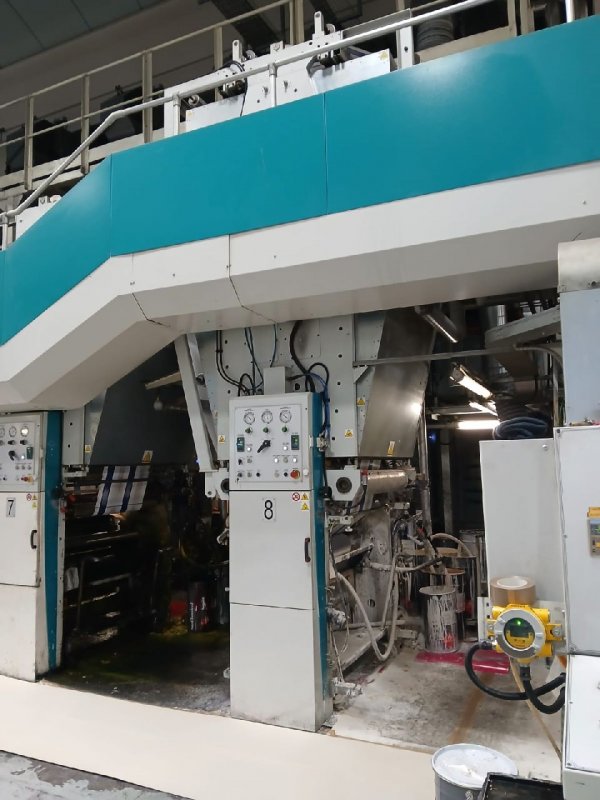

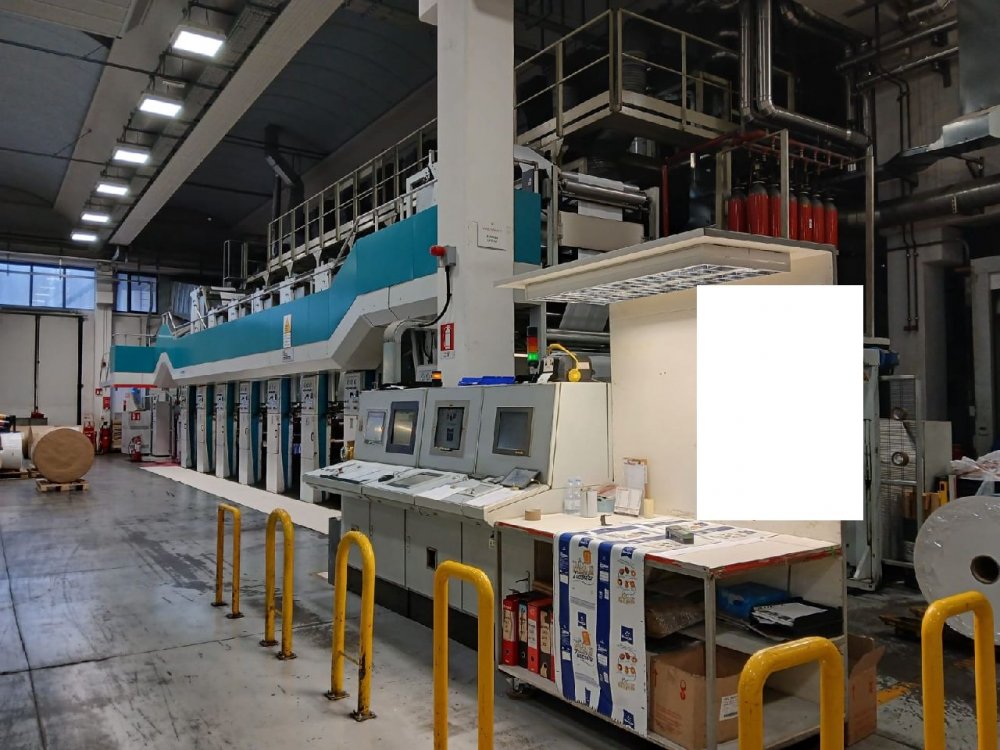

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO264
- Manufacturer
- UTECO
- Modello
- Q- S PRESS 8
- Year
- 2007
- Number of colors
- 8
- Print possibilities
- 8+0
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1030
- Print width (mm)
- 1015
- Print repeat range (mm)
- 440 -1000
- Drying specifications
- unit 1- 1 blowing fan single drying hood 2,8 mt length , units 2 to 7 , each unit one blowing fan , single hood 2 mt length , Unit 8 ,Double hood 2x 2,8 mt 2 blowing fans .
- Drying heat surce
- Thermo oil heat exchangers

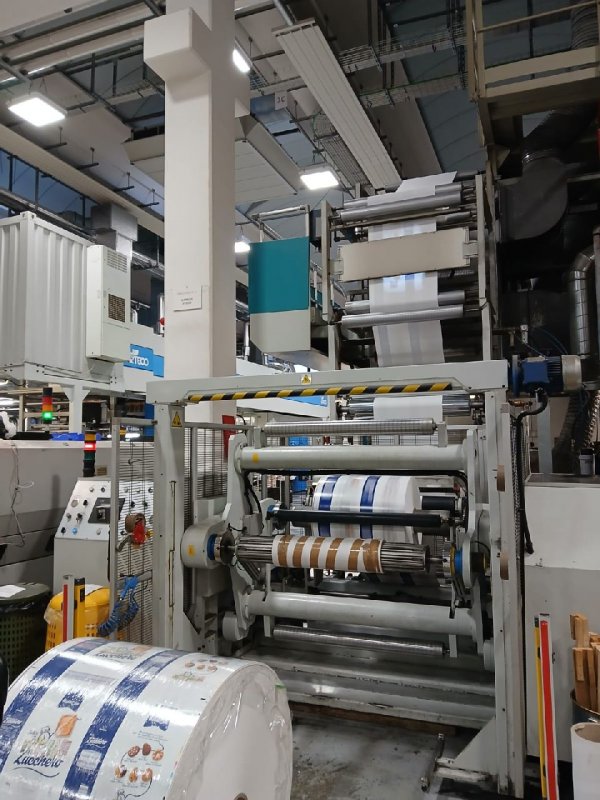

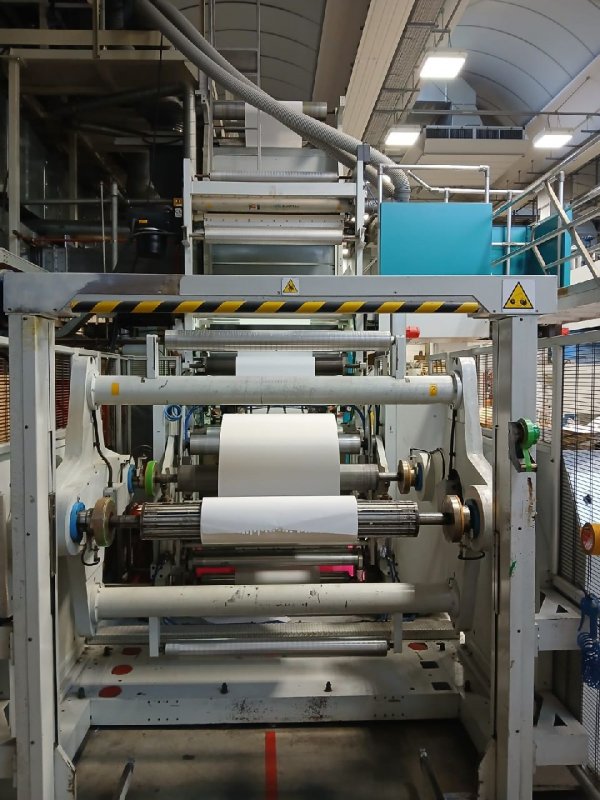

- Unwinder type
- Turret Automatic non stop 1000 mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Yes BST
- Register controll
- YES gRAFYKONTROL
- Vyscosity control
- Yes automatic by Gama
- Print cylinders
- Tot 780 Gravure Sleeves Complete : N. 63 x460 mm repeat , 9 x 465mm , 38 x 470 mm , 21 x 475mm , 89 x 480 mm, 37 x 490mm, 52 x 500mm, 8 x 509mm, 66 x 510mm, 9 x 515mm, 110 x 520mm, 18 x 528mm, 10 x 530mm, 100 x 540mm, 51 x 545mm, 10 x 550mm, 24 x 560mm, 8 x 577mm, 26 x 600mm, 13 x 620mm, 8 x 640mm, 10 x 750mm · N°450 Sleeves Rotoincisa N°40 Carriers for Rotoincisa sleeves N°180 steel mandrels
- Note
- Press for short runs and fast change over Printing mandrels with Rotogravure quick sleeve change Possibility to us thin sleeves with Carriers or sleeve cylinders with quick change over Electrostatic assistance on station 1 to 7 by ACE
| Machine Code | RO264 |
| Manufacturer | UTECO |
| Modello | Q- S PRESS 8 |
| Year | 2007 |
| Number of colors | 8 |
| Print possibilities | 8+0 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1030 |
| Print width (mm) | 1015 |
| Print repeat range (mm) | 440 -1000 |
| Drying specifications | unit 1- 1 blowing fan single drying hood 2,8 mt length , units 2 to 7 , each unit one blowing fan , single hood 2 mt length , Unit 8 ,Double hood 2x 2,8 mt 2 blowing fans . |
| Drying heat surce | Thermo oil heat exchangers |
| Unwinder type | Turret Automatic non stop 1000 mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Yes BST |
| Register controll | YES gRAFYKONTROL |
| Vyscosity control | Yes automatic by Gama |
| Print cylinders | Tot 780 Gravure Sleeves Complete : N. 63 x460 mm repeat , 9 x 465mm , 38 x 470 mm , 21 x 475mm , 89 x 480 mm, 37 x 490mm, 52 x 500mm, 8 x 509mm, 66 x 510mm, 9 x 515mm, 110 x 520mm, 18 x 528mm, 10 x 530mm, 100 x 540mm, 51 x 545mm, 10 x 550mm, 24 x 560mm, 8 x 577mm, 26 x 600mm, 13 x 620mm, 8 x 640mm, 10 x 750mm · N°450 Sleeves Rotoincisa N°40 Carriers for Rotoincisa sleeves N°180 steel mandrels |
| Note | Press for short runs and fast change over Printing mandrels with Rotogravure quick sleeve change Possibility to us thin sleeves with Carriers or sleeve cylinders with quick change over Electrostatic assistance on station 1 to 7 by ACE |
SCHIAVI PATRIOT
-
Machine Code: RO147
-
Year: 1995
-
Web width (mm): 1430
ROTOMEC RS4003
-
Machine Code: RO239
-
Year: 2008
-
Web width (mm): 1100
BHS Model T-800
-
Machine Code: RO263
-
Year: 1990
-
Web width (mm): 820

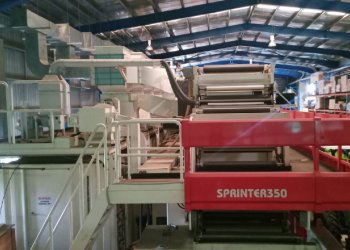

S.A.M. Sprinter 350
-
