** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL570

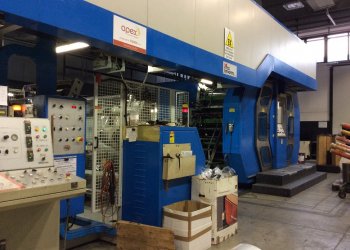

- Manufacturer
- UTECO
- Modello
- EMERALD 825 -- 8+1
- Year
- 2001
- Number of colors
- 9
- Print possibilityes
- 8+0, 8+1 front, 8+1 back
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 280
- Max print repeat (mm)
- 780
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zone,4 fans, tunnel 4mt , thermo oil heaters
- Videocamera
- BST Pro Scan
- Web guides
- yes, in and out
- Washing system
- no
- Inking system
- closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
- Print Sleeves
- 15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm
- Note
- Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo
Machine Code | FL570 |
Manufacturer | UTECO |
Modello | EMERALD 825 -- 8+1 |
Year | 2001 |
Number of colors | 9 |
Print possibilityes | 8+0, 8+1 front, 8+1 back |
Gearless | No |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1050 |
Print width (mm) | 1000 |
Min print repeat (mm) | 280 |
Max print repeat (mm) | 780 |
Unwinder type | Turret Automatic |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret Automatic |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zone,4 fans, tunnel 4mt , thermo oil heaters |
Videocamera | BST Pro Scan |
Web guides | yes, in and out |
Washing system | no |
Inking system | closed chamber doctor blades |
Anilox | 15 ceramic anilox sleeves |
Print Sleeves | 15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm |
Note | Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo |
