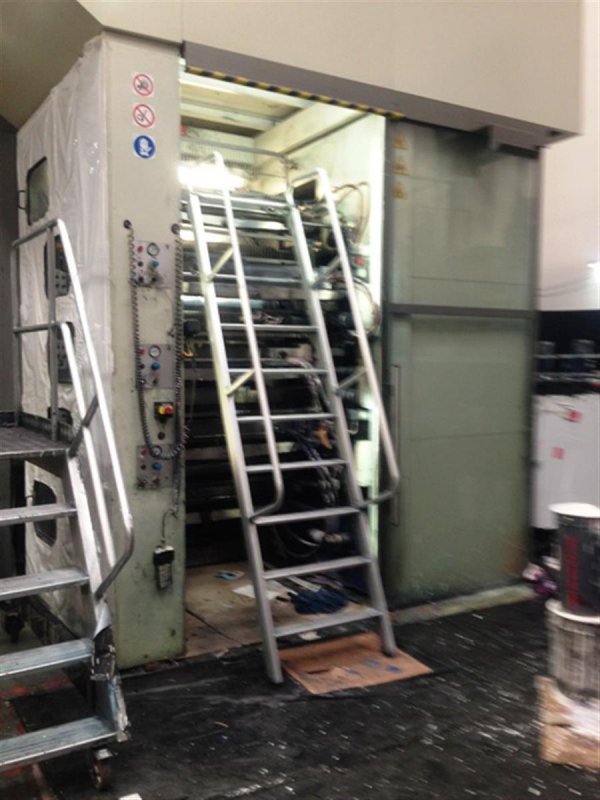

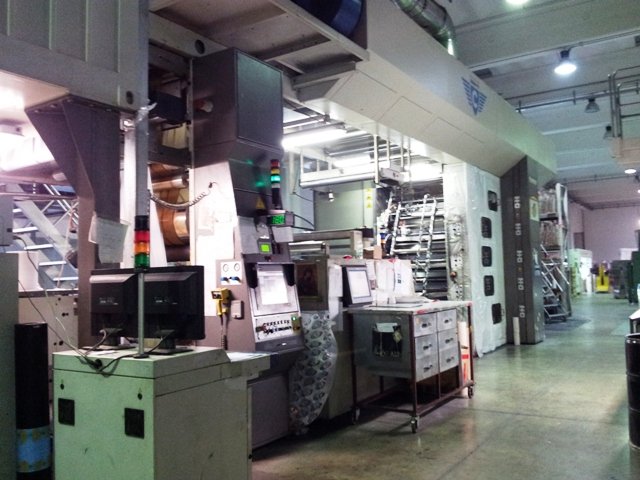

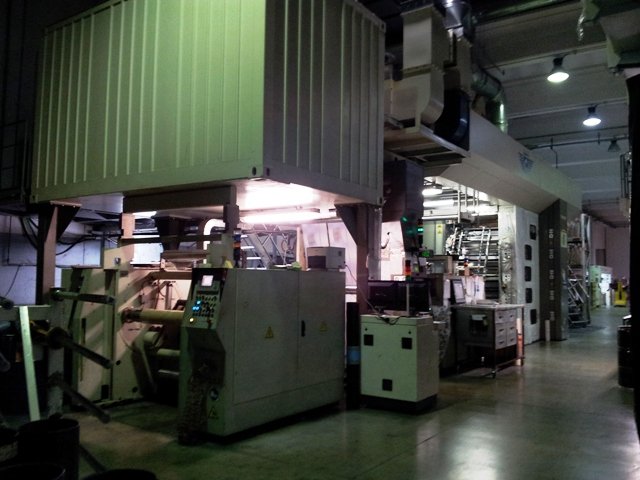

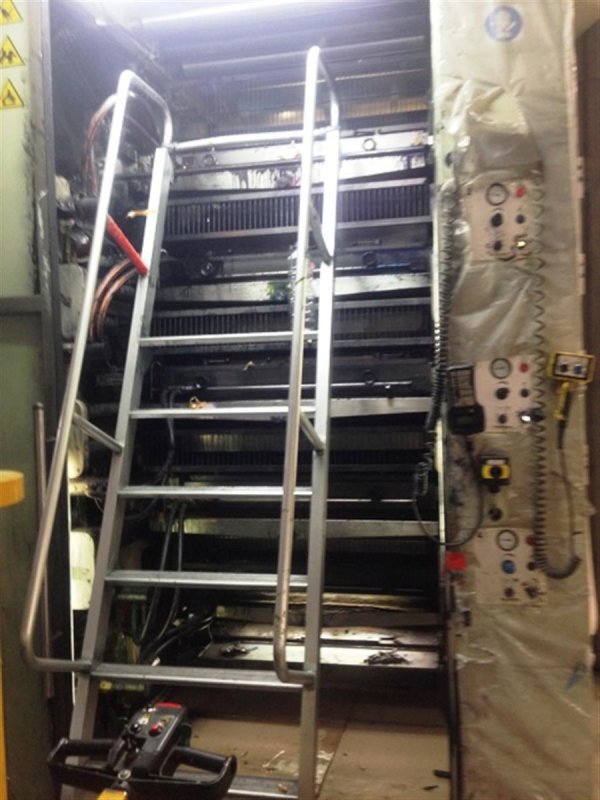

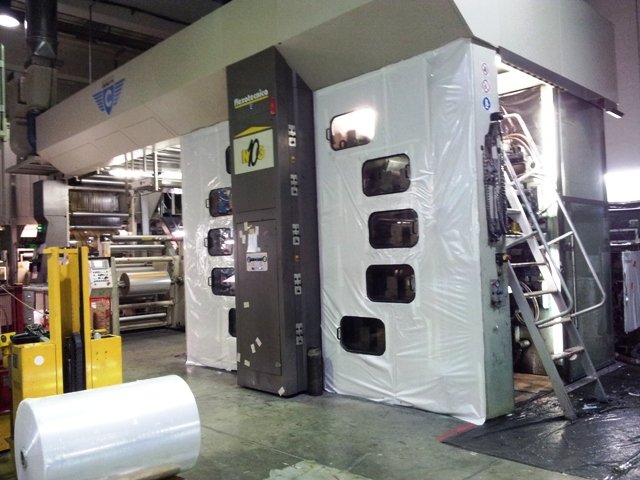

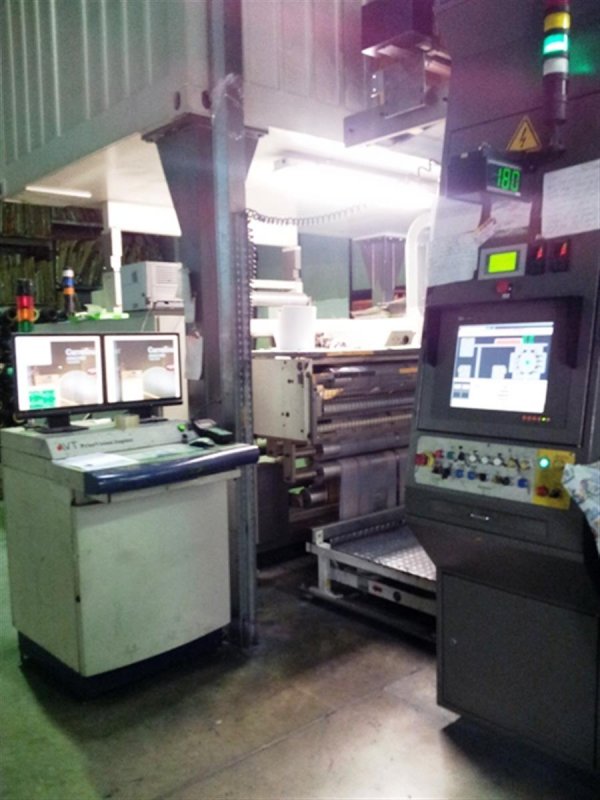

FLEXOTECNICA 10NG flexographic printing machine 10 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL632
Manufacturer
FLEXOTECNICA
Model
10NG
Year
2009
Number of colors
10
Print possibilityes
10+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1260
Print width (mm)
1200
Min print repeat (mm)
330
Max print repeat (mm)
900
Unwinder type
turret automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
1000
Drying
2 drying zones , 4 fans , 2 Gas burners
Videocamera
AVT Jupiter Dual Mode with register and defects control
Web guides
Fife before and after the printing unit

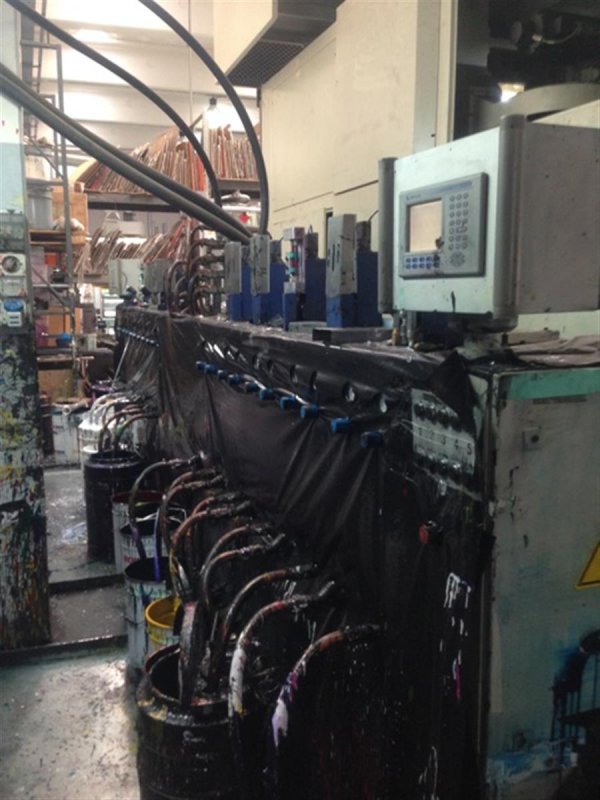

Vyscosity control
Gama
Washing system
Spedy Clean (cycle 4 min)
Inking system
closed chamber doctor blades
Anilox
Ceramic laser engraved Praxair 1x160linesV14, 1x160xV13, 1x169xV10, 1x250xV7,5, 1x280xV7, 2x 320xV6,5, 2x420xV5, 1x460xV5
Print Sleeves
Totally 30: 10x330mm, 10x630mm and 10x at choice
Additional information
Thickness plates 1.14mm ; Material : Film ; Ldpe; PP; PET, Nylon; Paper; metallized films
Machine Code FL632
Manufacturer FLEXOTECNICA
Model 10NG
Year 2009
Number of colors 10
Print possibilityes 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1260
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 900
Unwinder type turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000
Drying 2 drying zones , 4 fans , 2 Gas burners
Videocamera AVT Jupiter Dual Mode with register and defects control
Web guides Fife before and after the printing unit
Vyscosity control Gama
Washing system Spedy Clean (cycle 4 min)
Inking system closed chamber doctor blades
Anilox Ceramic laser engraved Praxair 1x160linesV14, 1x160xV13, 1x169xV10, 1x250xV7,5, 1x280xV7, 2x 320xV6,5, 2x420xV5, 1x460xV5
Print Sleeves Totally 30: 10x330mm, 10x630mm and 10x at choice
Additional information Thickness plates 1.14mm ; Material : Film ; Ldpe; PP; PET, Nylon; Paper; metallized films
KBA FLEXOTECNICA EVO 10
WINDMÖLLER & HÖLSCHER ASTRAFLEX
SCHIAVI PADANE
FISCHER & KRECKE 34DF/8 CNC
UTECO TOPAZ 608

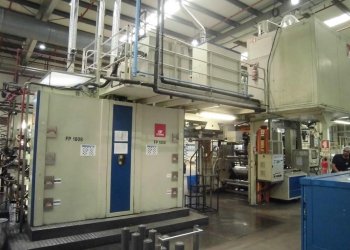

COMEXI FP 1808 CNC
