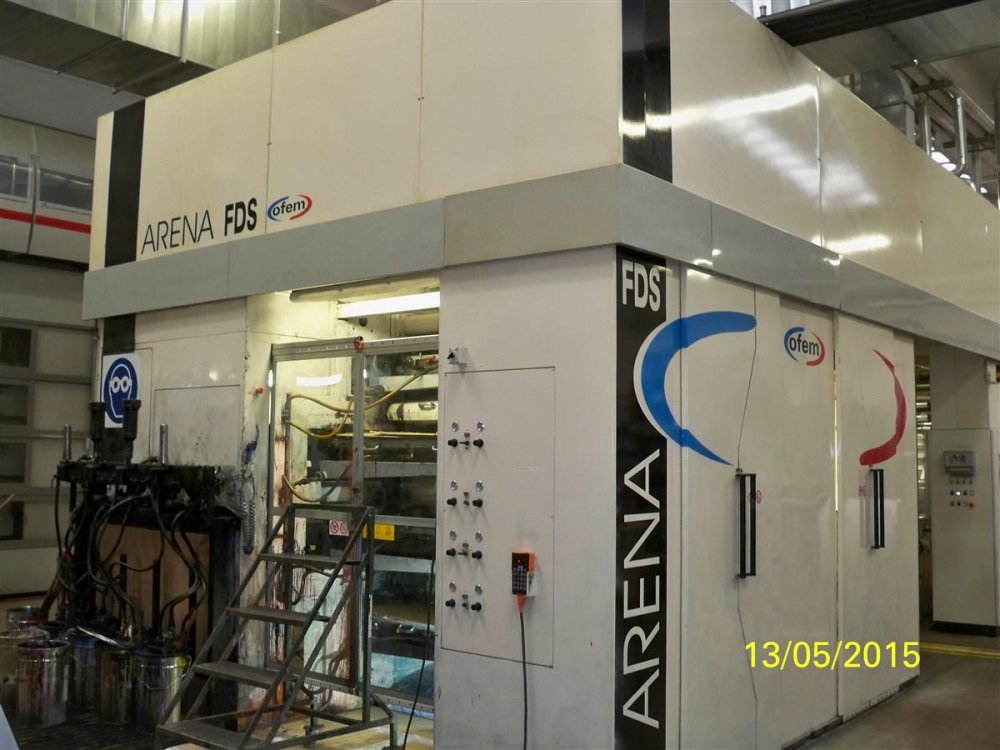

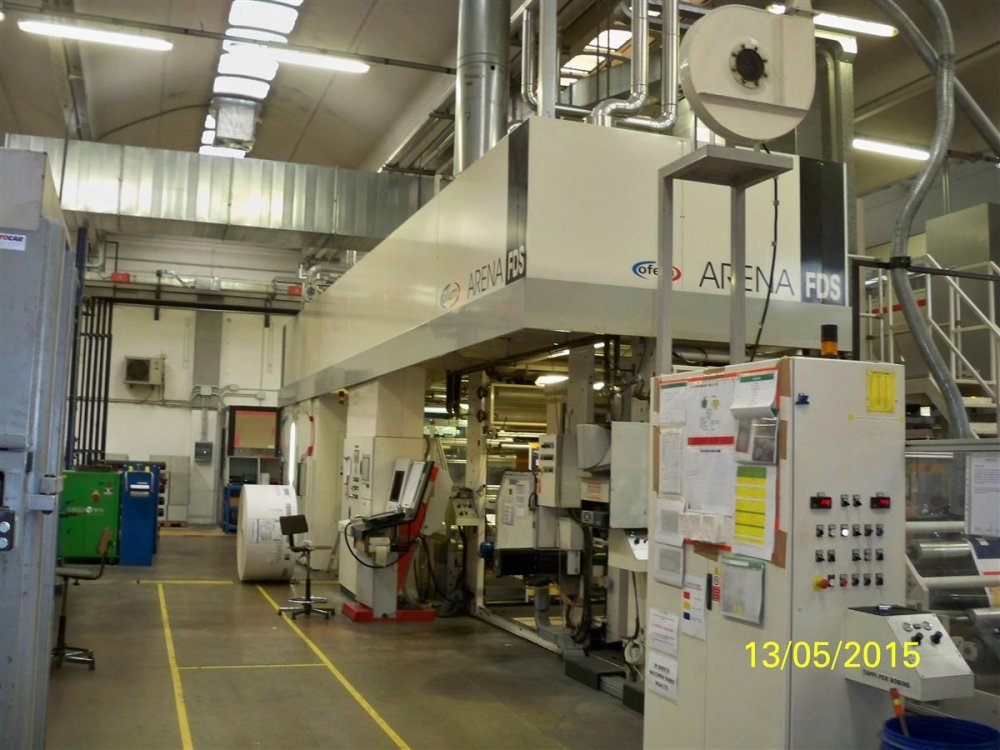

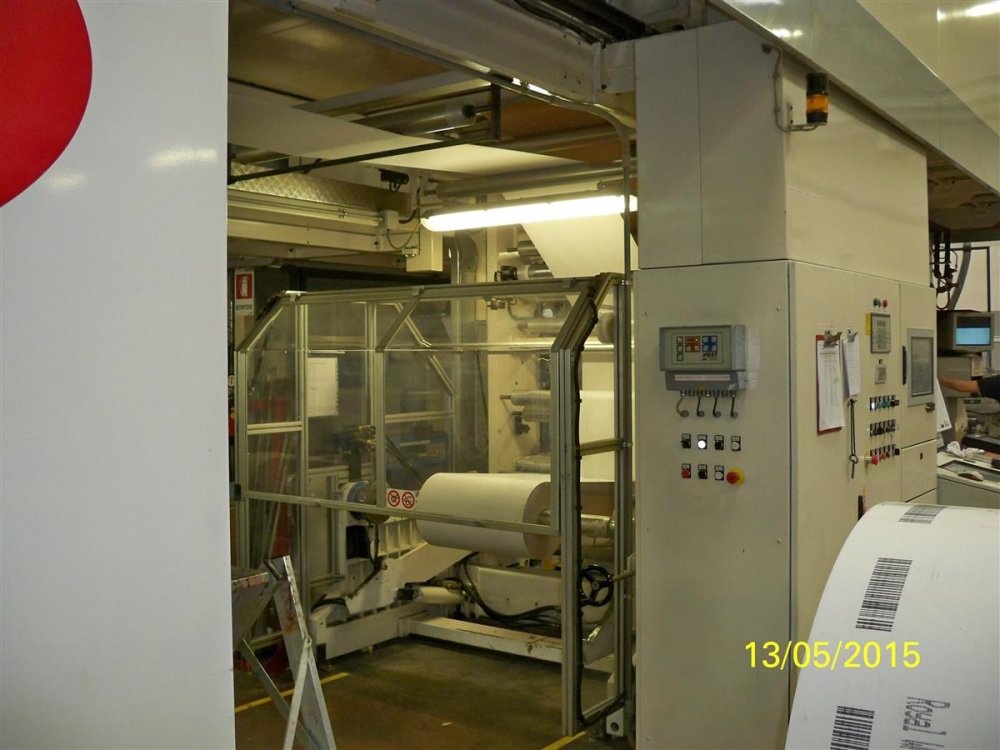

OFEM ARENA GL 808-120 Flexo central drum printing press 9 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL624
Manufacturer: OFEM
Model: ARENA GL 808-120
Year: 2002
Number of colors: 9
Print possibilityes: 8 + 1 downstream for coating UV and water based varnishes on the same side of the web and in register with the spots printed on the CI section.
Gearless: Yes
Fast sleeve change: Yes

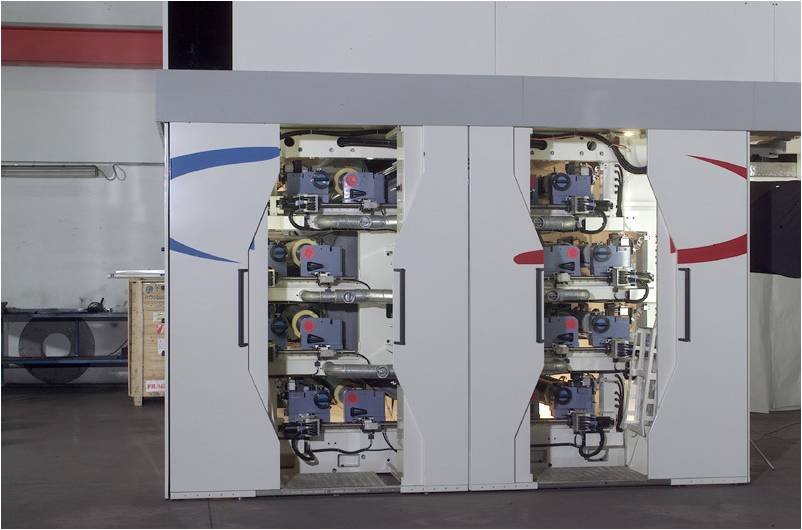

4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1250
Print width (mm): 1200
Min print repeat (mm): 350
Max print repeat (mm): 800
Unwinder type: Single axis
Max reel diameter unwinder (mm): 1300

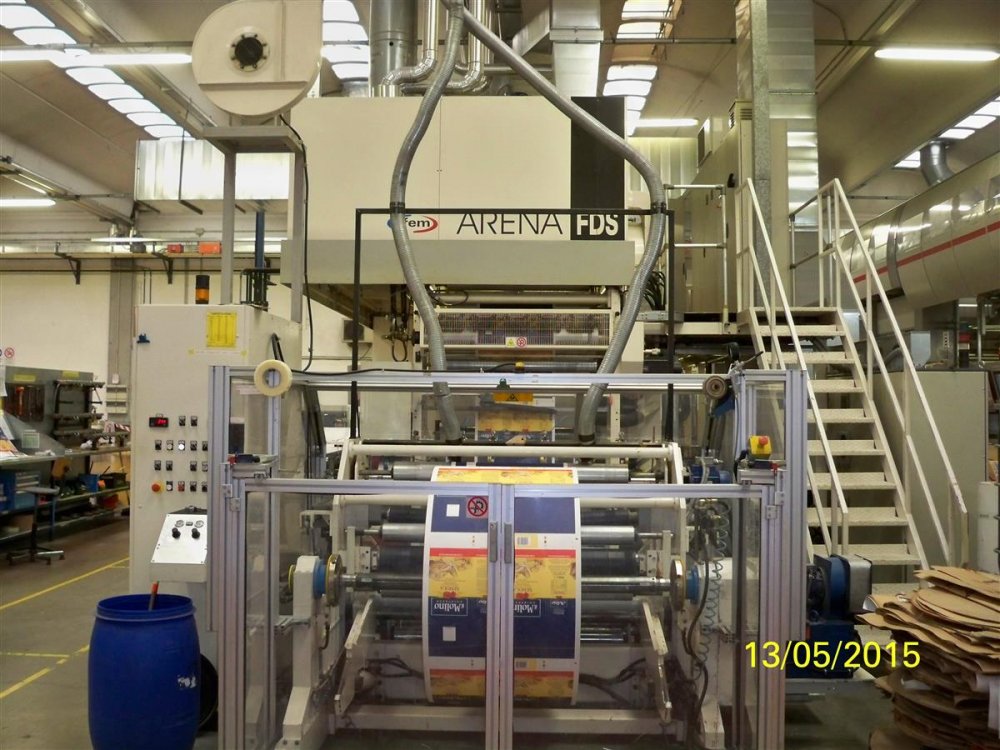

Rewinder type: Single axis
Max reel diameter rewinder (mm): 1300
Drying: Hot air drying system. Thermic oil Heating source.

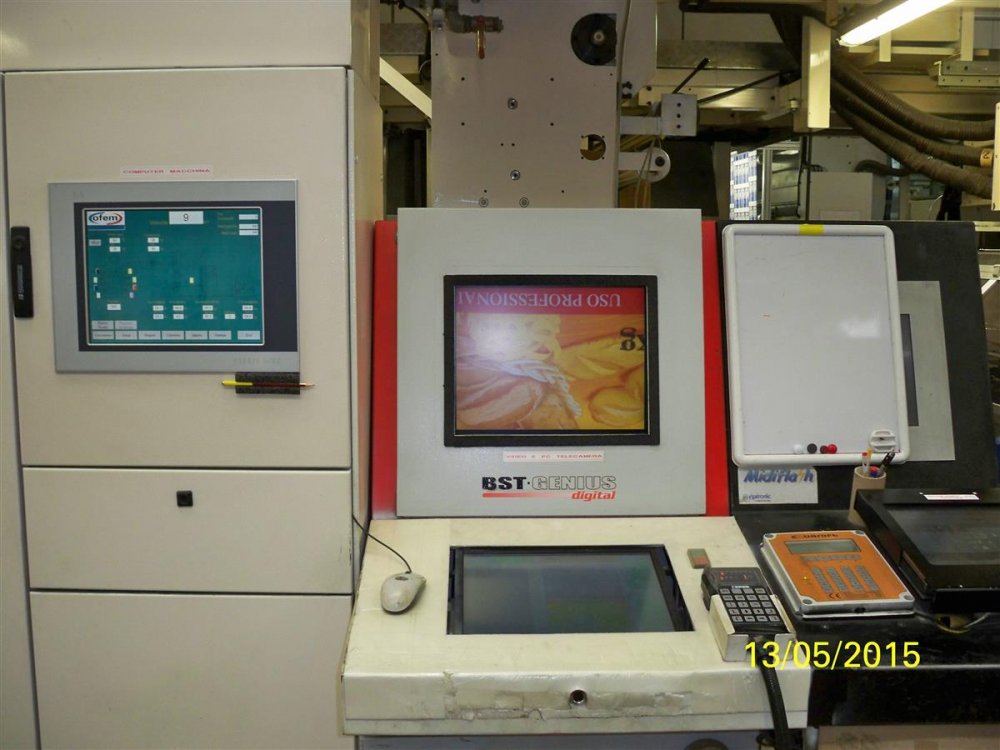

Videocamera: video inspection system BST-Genius.Quick registering system at machine start up.
Web guides: 1 before printing and 1 before rewinding
Inking system: Enclosed doctor blade chambers with ceramic anilox rollers .8 ink pumps.
Anilox: Anilox sleeves ceramic coated and laser engraved as following: 1 anilox engraved to HPF-W3-140 lines/cm., volume 11 g/m2; 2 anilox HPF1-120 lines/cm., vol.10,0 g/m2; 1 anilox HPF4-220 lines/cm., vol. 5,5 g/m2; 1 X 70 lines/cm., vol. 20,0 g/m2; 3 X 80 lines/cm., vol.16,0 g/m2 ; 1x 100 lines/cm., vol.16,5 g/m2; 2 X 100 lines/cm., vol.16,0 g/m2; 1 X 110 lines/cm., volume 13,0 g/m2; 2 X 120 lines/cm., vol.13,0 g/m2; 1 X 140 lines/cm., vol.11,0 g/m2; 1X 160 lines/cm., vol.9,0 g/m2; 5 X 180 lines/cm., vol.7,8 g/m2; 5 X 255 lines/cm., vol.5,0 g/m2 ; 2 X 300 lines/cm., vol. 4,2 g/m2.
Additional information: Paper Registers motorized remote controlled Decks’ positioning system automatic with 4 motors per deck and job repeatability program Plate roller mandrels: 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 1 plate roller air mandrels diameter 89,243 mm. for the print section.9 print sleeves to choose among those on stock (only 9 as the rest will be kept by seller). 1 downstream printing unit (this unit is a geared type) for coating water based and UV varnish in register with the Central impression section (UV lamps offered apart).
