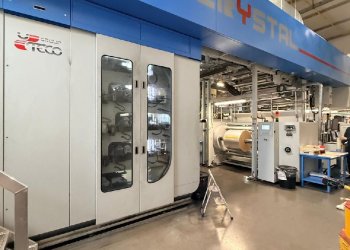

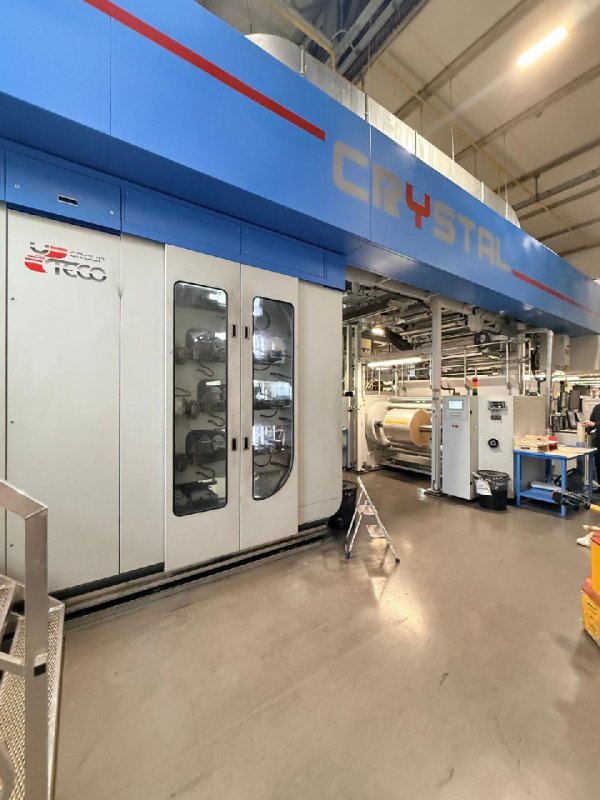

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1217
- Manufacturer
- UTECO
- Modello
- Crystal 108
- Year
- 2019
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- Turret automatic, with roll loading system 2 shafts 76mm and 2 shafts 152mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic, with roll unloading system 2 shafts 76mm and 2 shafts 152mm
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones, 4 fans, final tunnel 6 meters, 2 gas burners. Automatic air recirculation LEL control system by NIRA
- Videocamera
- Grafikontrol 100% inspection complete with Defect control and "Click & Drag" register control System
- Corona treatment
- Ferrarini & Benelli
- Web guides
- BST in and out
- Vyscosity control
- Gama G26
- Washing system
- Yes, automatic
- Inking system
- Closed Chamber doctor blades
- Anilox
- 12 anilox sleeves
- Print Sleeves
- 160 sleeves
- Print cylinders
- 2 set of carriers
- Note
- max. mechanical speed- 500m/min "Touch & Go" System "Tune & Go" System "kiss & Go" System
| Machine Code | FL1217 |
| Manufacturer | UTECO |
| Modello | Crystal 108 |
| Year | 2019 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret automatic, with roll loading system 2 shafts 76mm and 2 shafts 152mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic, with roll unloading system 2 shafts 76mm and 2 shafts 152mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones, 4 fans, final tunnel 6 meters, 2 gas burners. Automatic air recirculation LEL control system by NIRA |
| Videocamera | Grafikontrol 100% inspection complete with Defect control and "Click & Drag" register control System |
| Corona treatment | Ferrarini & Benelli |
| Web guides | BST in and out |
| Vyscosity control | Gama G26 |
| Washing system | Yes, automatic |
| Inking system | Closed Chamber doctor blades |
| Anilox | 12 anilox sleeves |
| Print Sleeves | 160 sleeves |
| Print cylinders | 2 set of carriers |
| Note | max. mechanical speed- 500m/min "Touch & Go" System "Tune & Go" System "kiss & Go" System |
