Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1213
- Manufacturer
- UTECO
- Modello
- ONYX - XS
- Year
- 2017
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 820
- Min print repeat (mm)
- 260
- Max print repeat (mm)
- 650

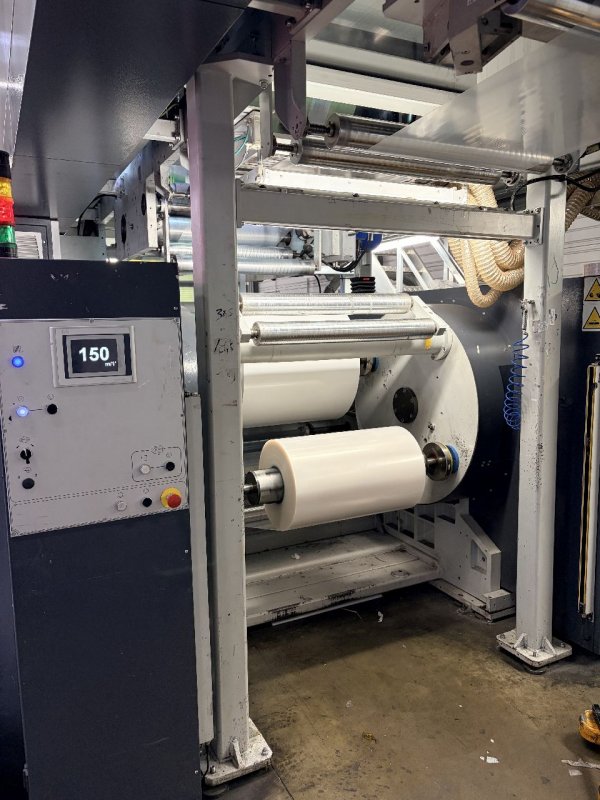

- Unwinder type
- Automatic Turret - 3" shafts
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic Turret - 3" shafts - Razor blade slitter
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , 2 Gas burner , final tunnel 3,5 mt lenght, automatic air recirculation system with LEL control by MSA
- Videocamera
- Grafykontrol with automatic register (Click & drag) and defekt control
- Web guides
- yes in and out

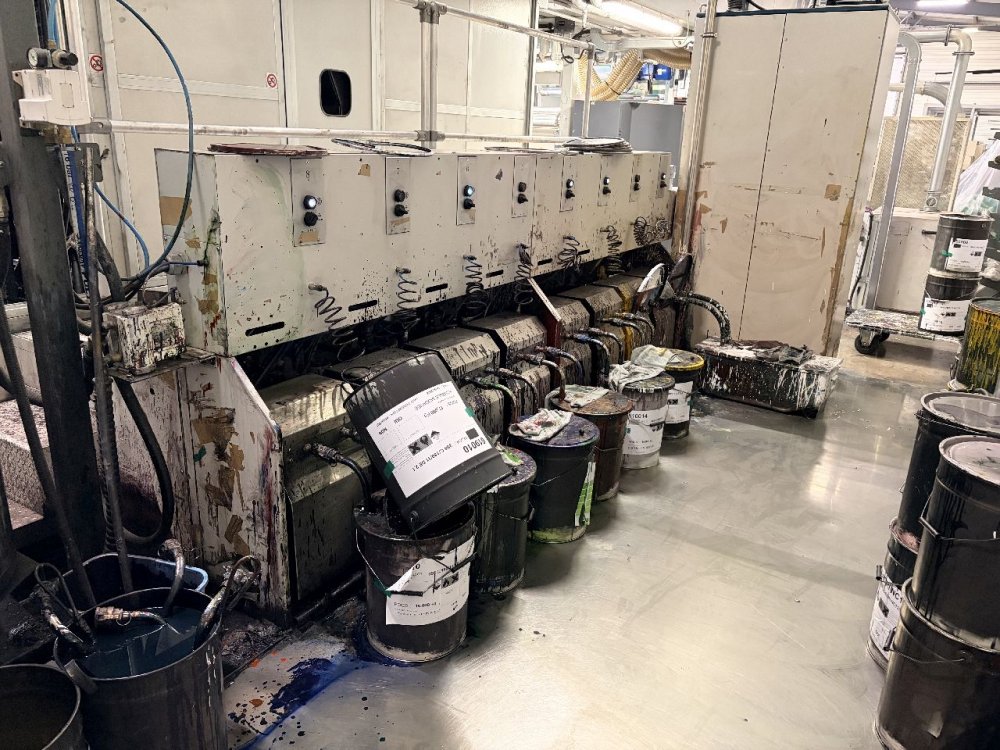

- Vyscosity control
- Yes
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades
- Anilox
- 18 ceramic anilox sleeves as follows : 4 x 480 Lines/m - vol 3,5 ; 4 x 420 L/cm-vol.4,5 ; 2x 340 L/cm-vol.5,5 ; 1x 300 L7cm- vol.4,5 ; 1x 280 L/cm.vol.8 ; 1x 240 L/cm-vol.10 ; 2x 200 L/cm-vol.9,5 ; 1x 180 L/cm- vol.9 ; 2x 160 L/cm- vol.12 ; 1x 140 L/cm- vol 14
- Print Sleeves
- 216 print sleeves as follows : 8 sleeves for each following repeat : 270 mm , 280 , 290 , 300 , 310 , 320 , 330 , 350 , 360 , 370 , 380 , 390 , 400 , 420 , 440 , 460 , 470 , 480 , 500 , 520 , 530 , 540 ,560 , 580 , 600 , 610 , 620 .
- Note
- Web cleaner ACE (HC20) Driven infeed calender 200 mm diam Automatic print setting system with "Kiss &Go" and "Tune & Go" Pre register "G" (guearless) Motorized length register Motorized lateral register (+/- 5 mm)
| Machine Code | FL1213 |
| Manufacturer | UTECO |
| Modello | ONYX - XS |
| Year | 2017 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 850 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 260 |
| Max print repeat (mm) | 650 |
| Unwinder type | Automatic Turret - 3" shafts |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic Turret - 3" shafts - Razor blade slitter |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , 2 Gas burner , final tunnel 3,5 mt lenght, automatic air recirculation system with LEL control by MSA |
| Videocamera | Grafykontrol with automatic register (Click & drag) and defekt control |
| Web guides | yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades |
| Anilox | 18 ceramic anilox sleeves as follows : 4 x 480 Lines/m - vol 3,5 ; 4 x 420 L/cm-vol.4,5 ; 2x 340 L/cm-vol.5,5 ; 1x 300 L7cm- vol.4,5 ; 1x 280 L/cm.vol.8 ; 1x 240 L/cm-vol.10 ; 2x 200 L/cm-vol.9,5 ; 1x 180 L/cm- vol.9 ; 2x 160 L/cm- vol.12 ; 1x 140 L/cm- vol 14 |
| Print Sleeves | 216 print sleeves as follows : 8 sleeves for each following repeat : 270 mm , 280 , 290 , 300 , 310 , 320 , 330 , 350 , 360 , 370 , 380 , 390 , 400 , 420 , 440 , 460 , 470 , 480 , 500 , 520 , 530 , 540 ,560 , 580 , 600 , 610 , 620 . |
| Note | Web cleaner ACE (HC20) Driven infeed calender 200 mm diam Automatic print setting system with "Kiss &Go" and "Tune & Go" Pre register "G" (guearless) Motorized length register Motorized lateral register (+/- 5 mm) |
