Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1203
- Manufacturer
- COMEXI
- Modello
- FP 1808 CNC
- Year
- 2000
- Number of colors
- 8
- Overhaul/renovation
- Full Retrofitting and rebuilding in 2017 with gearless system
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

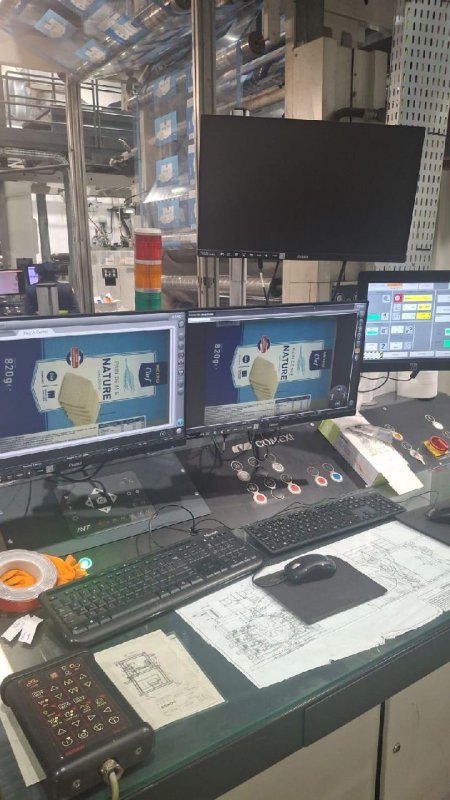

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 680
- Unwinder type
- turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones, 4 fans , final tunnel, electric drying system
- Videocamera
- AVT Jupiter

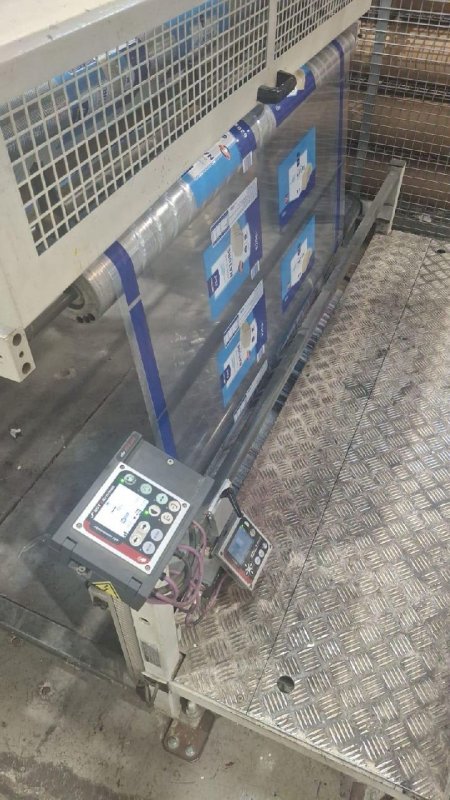

- Web guides
- yes 2, BST
- Vyscosity control
- Yes
- Washing system
- Yes
- Inking system
- closed chamber doctor blades
- Anilox
- 11
- Print Sleeves
- 60
- Note
- With motorized longitudinal register 2 Banana rolls 1 Slitting unit for the web trims
| Machine Code | FL1203 |
| Manufacturer | COMEXI |
| Modello | FP 1808 CNC |
| Year | 2000 |
| Number of colors | 8 |
| Overhaul/renovation | Full Retrofitting and rebuilding in 2017 with gearless system |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 680 |
| Unwinder type | turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones, 4 fans , final tunnel, electric drying system |
| Videocamera | AVT Jupiter |
| Web guides | yes 2, BST |
| Vyscosity control | Yes |
| Washing system | Yes |
| Inking system | closed chamber doctor blades |
| Anilox | 11 |
| Print Sleeves | 60 |
| Note | With motorized longitudinal register 2 Banana rolls 1 Slitting unit for the web trims |
