Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1192
- Manufacturer
- OFEM
- Modello

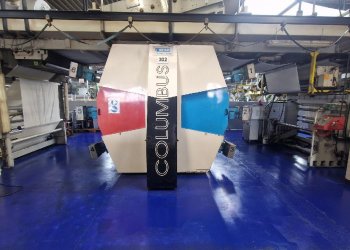

- Columbus 10/812 - 160 Tandem
- Year
- 2001
- Number of colors
- 12
- Print possibilityes
- 6+6, 12+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- No
- Computer supervision
- Yes
- Web width (mm)
- 1720
- Print width (mm)
- 1670
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 900
- Unwinder type
- Single position with roll loading system
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- SAK
- Max reel diameter rewinder (mm)
- 1500
- Drying
- Gas 2x 200.000Kcal Sib burners
- Videocamera
- Yes
- Web guides
- yes in and out
- Inking system
- Ceramic Anilox + Chambered Doctor Blades
- Anilox
- 12 x 140 lines/cm
- Print Sleeves
- 12 x 65cm 12x 70cm
- Note
- Overall Dimensions (H-W-L): mm 4510x4340x16360 Max speed: 300m/min Plate thickness: 3mm including sticky back
| Machine Code | FL1192 |
| Manufacturer | OFEM |
| Modello | Columbus 10/812 - 160 Tandem |
| Year | 2001 |
| Number of colors | 12 |
| Print possibilityes | 6+6, 12+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1720 |
| Print width (mm) | 1670 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 900 |
| Unwinder type | Single position with roll loading system |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | SAK |
| Max reel diameter rewinder (mm) | 1500 |
| Drying | Gas 2x 200.000Kcal Sib burners |
| Videocamera | Yes |
| Web guides | yes in and out |
| Inking system | Ceramic Anilox + Chambered Doctor Blades |
| Anilox | 12 x 140 lines/cm |
| Print Sleeves | 12 x 65cm 12x 70cm |
| Note | Overall Dimensions (H-W-L): mm 4510x4340x16360 Max speed: 300m/min Plate thickness: 3mm including sticky back |
