Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1174
- Manufacturer
- UTECO
- Modello

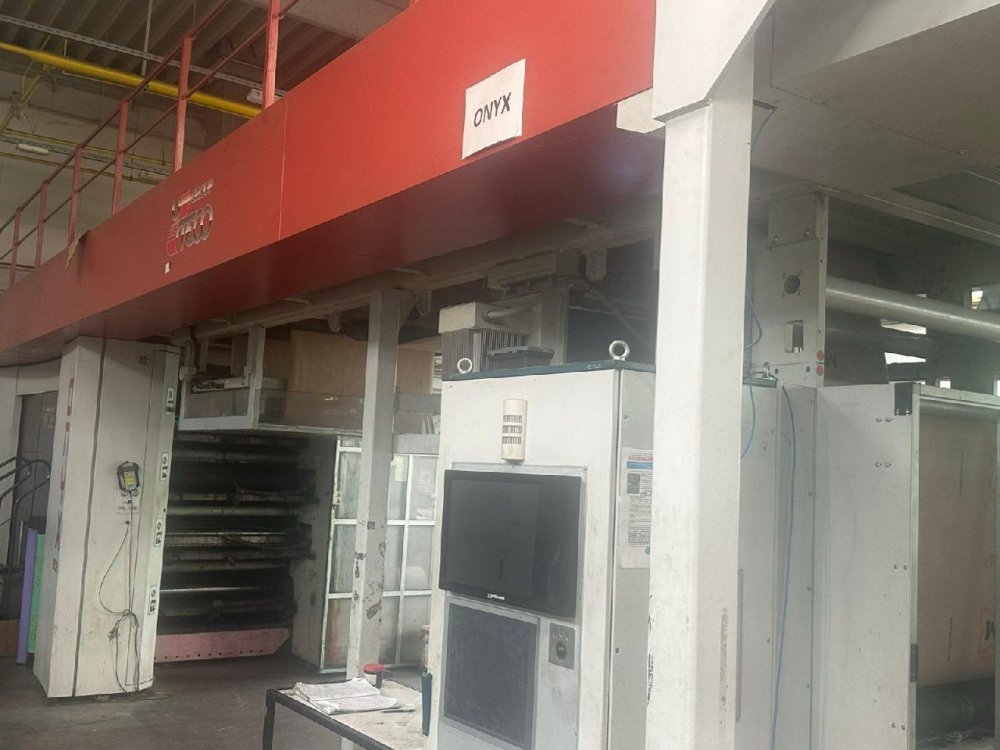

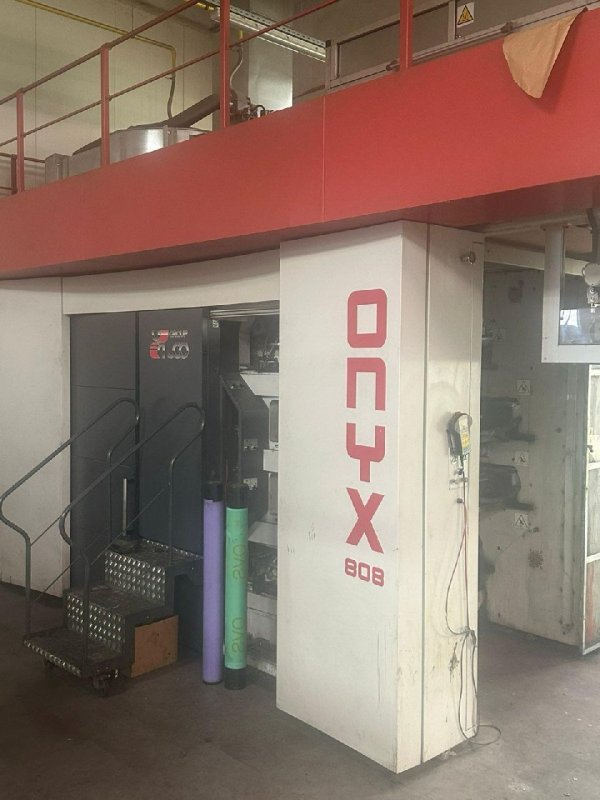

- ONYX 808
- Year
- 2016
- Number of colors
- 8
- Print possibilityes
- 8 + 0
- Overhaul/renovation
- No
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- Single
- Max reel diameter unwinder (mm)
- 1300
- Rewinder type
- Single position with roll unloading system
- Max reel diameter rewinder (mm)
- 1300
- Drying

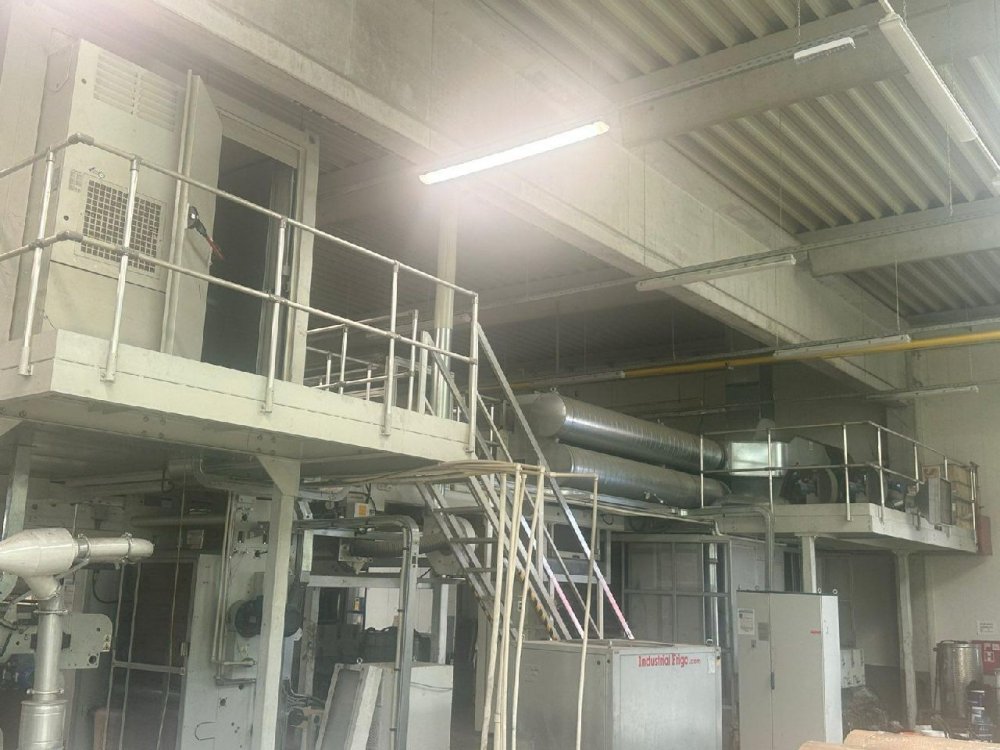

- 2 zones 4 fans- final drying tunnel 4 mt - 2 thermo oil heaters
- Videocamera
- Grafikontrol Matrix
- Web guides
- BST
- Vyscosity control
- No
- Washing system
- YES
- Inking system
- Chamber doctor blades
- Anilox
- 8
- Print Sleeves
- 8
| Machine Code | FL1174 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2016 |
| Number of colors | 8 |
| Print possibilityes | 8 + 0 |
| Overhaul/renovation | No |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Single |
| Max reel diameter unwinder (mm) | 1300 |
| Rewinder type | Single position with roll unloading system |
| Max reel diameter rewinder (mm) | 1300 |
| Drying | 2 zones 4 fans- final drying tunnel 4 mt - 2 thermo oil heaters |
| Videocamera | Grafikontrol Matrix |
| Web guides | BST |
| Vyscosity control | No |
| Washing system | YES |
| Inking system | Chamber doctor blades |
| Anilox | 8 |
| Print Sleeves | 8 |
OFEM Colombus 7/806
-
Machine Code: FL1099
-
Year: 1998
-
Web width (mm): 1270
UTECO ONYX 876 + 1
-
Machine Code: FL1173
-
Year: 2007
-
Web width (mm): 1550

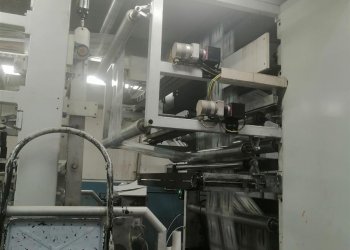

BIELLONI THEOREMA
-
