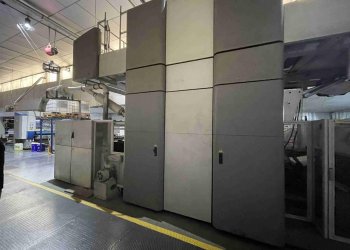

SOMA Flex Midi II 1270 – 8 - flexographic printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL985
Manufacturer
SOMA
Model
Flex Midi II 1270 – 8 -
Year
2010
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
360
Max print repeat (mm)
800
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones , 4 fans , tunnel long 4,2 mt . Electric heaters . Automatic air recirculation system
Videocamera
Yes
Corona treatment
Yes
Web guides
Yes in and out
Vyscosity control
Yes
Washing system
Yes
Inking system
Closed chamber doctor blades
Anilox
16 ceramic anilox sleeve s
Print Sleeves
136
Additional information
Chiller included
Machine Code FL985
Manufacturer SOMA
Model Flex Midi II 1270 – 8 -
Year 2010
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 360
Max print repeat (mm) 800
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , tunnel long 4,2 mt . Electric heaters . Automatic air recirculation system
Videocamera Yes
Corona treatment Yes
Web guides Yes in and out
Vyscosity control Yes
Washing system Yes
Inking system Closed chamber doctor blades
Anilox 16 ceramic anilox sleeve s
Print Sleeves 136
Additional information Chiller included
