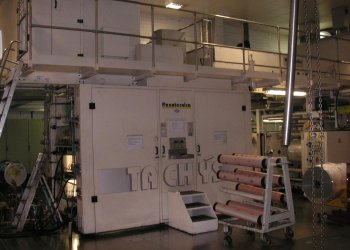

FLEXOTECNICA TACHYS flexographic printing machine 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL968
Manufacturer FLEXOTECNICA
Model TACHYS
Year 2000
Number of colors 8
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 650
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Drying 2 zones, 4 fans, 2 heaters
Videocamera yes
Corona treatment Yes
Inking system Closed chamber doctror blades
Anilox 40
Print Sleeves 700
Additional information Max. speed 250 m/min Printable webs: the classical ones, theoretical values (wider range possible) OPP 12-60 µ PET 12-25µ PA 15-100µ Paper 100 g/m² Laminates until +/- 100 g/m² Coronatreater Webviewer 700 sleeves and the necessary carriers 40 anilox rollers (volume 5 to 18 cm³/m², 340 to 60 lines/cm)
