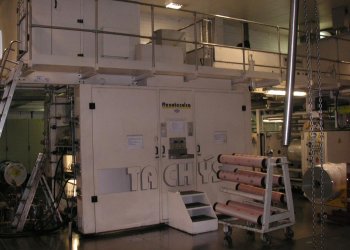

FLEXOTECNICA TACHYS flexographic printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL968
Manufacturer
FLEXOTECNICA
Model
TACHYS
Year
2000
Number of colors
8
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
650
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones, 4 fans, 2 heaters
Videocamera
camera BST Webvideostar year 2014, with defect control
Corona treatment
Yes
Inking system
Closed chamber doctror blades
Anilox
25
Print Sleeves
400
Additional information
Max. speed 250 m/min Coronatreater Webviewer 400 sleeves and the necessary carriers 40 anilox ceramic sleeves (volume 5 to 18 cm³/m², 340 to 60 lines/cm)
Machine Code FL968
Manufacturer FLEXOTECNICA
Model TACHYS
Year 2000
Number of colors 8
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 650
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones, 4 fans, 2 heaters
Videocamera camera BST Webvideostar year 2014, with defect control
Corona treatment Yes
Inking system Closed chamber doctror blades
Anilox 25
Print Sleeves 400
Additional information Max. speed 250 m/min Coronatreater Webviewer 400 sleeves and the necessary carriers 40 anilox ceramic sleeves (volume 5 to 18 cm³/m², 340 to 60 lines/cm)
