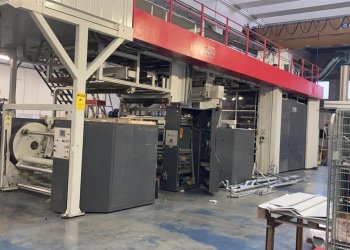

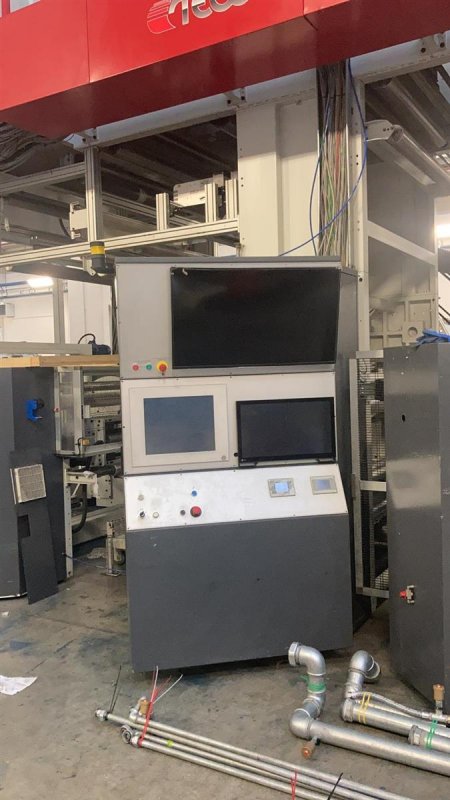

UTECO ONYX 108 flexo printing machine 10 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL926
Manufacturer UTECO
Model ONYX 108
Year 2013
Number of colors 10
Print possibilities 10 +0
Gearless Yes
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 380
Max print repeat (mm) 800

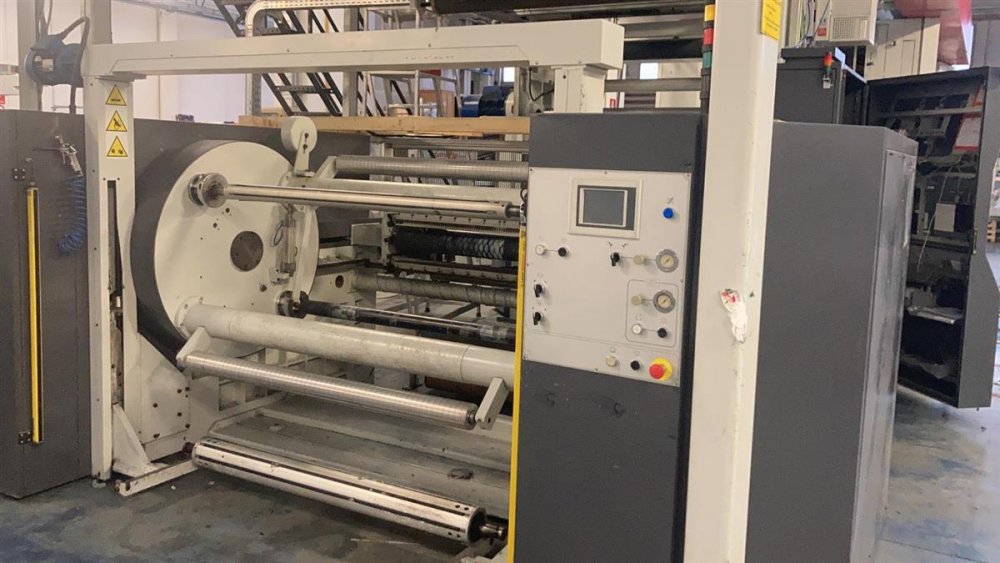

Unwinder type Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm) 1000

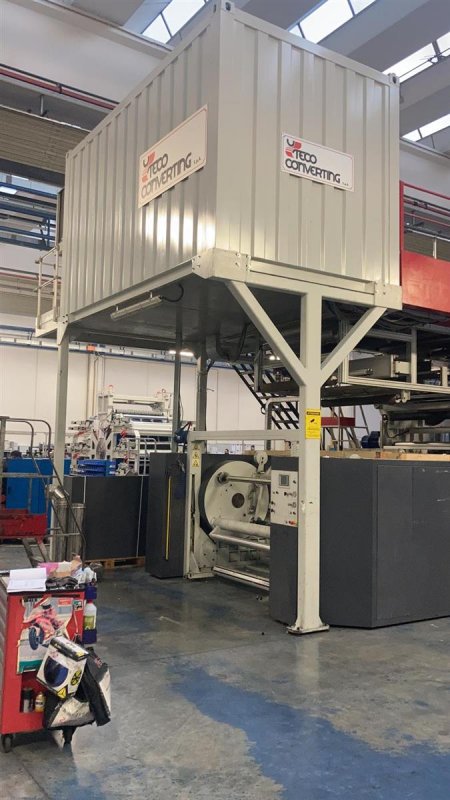

Drying 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocamera yes BST
Corona treatment Option Ferrarini Benelli
Web guides yes in and out

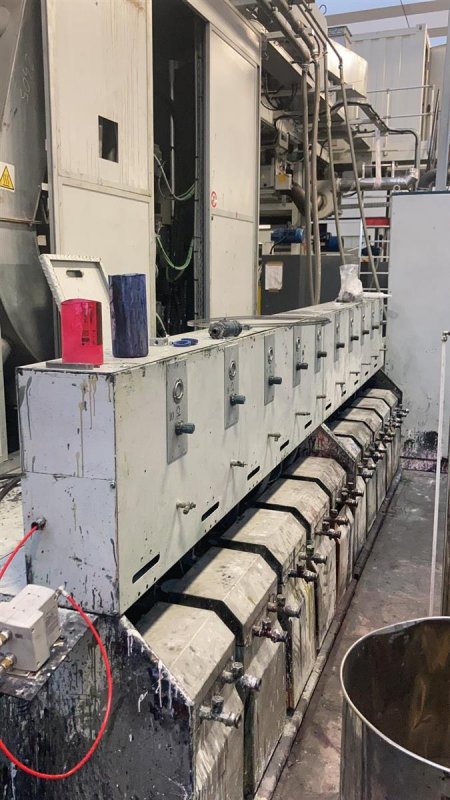

Vyscosity control Yes included GAMA tipo G26-RIV-VIB c
Washing system Yes included
Inking system Closed chamber doctor blades
Anilox 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Print Sleeves total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
