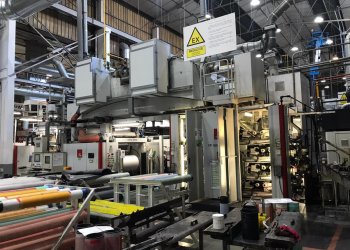

COMEXI FP1808 GL Flexo printer 8 colors SOLD Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code	FL923
Manufacturer	COMEXI
Model	FP1808 GL
Year	2003
Number of colors	8
Print possibilities	8+0
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1070
Print width (mm)	1020
Min print repeat (mm)	350
Max print repeat (mm)	700
Unwinder type	Turret automatic non stop with roll lifting system
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret automatic non stop with roll lifting system
Max reel diameter rewinder (mm)	1000
Drying	2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
Videocamera	Yes ELTROMAT Meshcon
Corona treatment	yes SHERMAN
Web guides	Yes in and out OPG system
Vyscosity control	Yes Inelme SICCT
Washing system	Automatic wash up system
Inking system	Closed chamber doctor blades and ceramic anilox sleeves
Anilox	26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
Print Sleeves	40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
