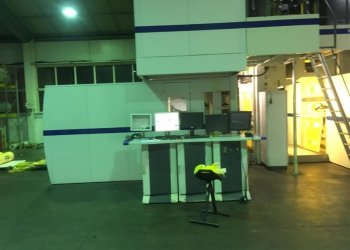

FISCHER & KRECKE 6S/8 flexographic printing machine 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Machine Code: FL917
Manufacturer: FISCHER & KRECKE
Modello: 6S/8
Year: 2007
Number of colors: 8
Print possibilityes: 8+0
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1300
Print width (mm): 1250
Min print repeat (mm): 320
Max print repeat (mm): 800
Unwinder type: Turret
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret
Max reel diameter rewinder (mm): 1000
Drying: 2 zones , 4 fans , final tunnel 5 mt, 2 gas burners
Corona treatment: Yes AFS
Web guides: yes in and out
Vyscosity control: yes automatic
Washing system: yes automatic
Inking system: Closed chamber doctor blades
Anilox: nr. 12 ceramic anilox sleeve s (1x100; 1x80 ; 2x160; 2x225; 4x320)
Print Sleeves: nr. 136 (8x320,340,360,380,400,420,450,480,500,520,550,600, ....)
Print cylinders: 2 sets of carriers
Note: antistatic bar

Machine Code	FL917
Manufacturer	FISCHER & KRECKE
Modello	6S/8
Year	2007
Number of colors	8
Print possibilityes	8+0
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1300
Print width (mm)	1250
Min print repeat (mm)	320
Max print repeat (mm)	800
Unwinder type	Turret
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret
Max reel diameter rewinder (mm)	1000
Drying	2 zones , 4 fans , final tunnel 5 mt, 2 gas burners
Corona treatment	Yes AFS
Web guides	yes in and out
Vyscosity control	yes automatic
Washing system	yes automatic
Inking system	Closed chamber doctor blades
Anilox	nr. 12 ceramic anilox sleeve s (1x100; 1x80 ; 2x160; 2x225; 4x320)
Print Sleeves	nr. 136 (8x320,340,360,380,400,420,450,480,500,520,550,600, ....)
Print cylinders	2 sets of carriers
Note	antistatic bar
