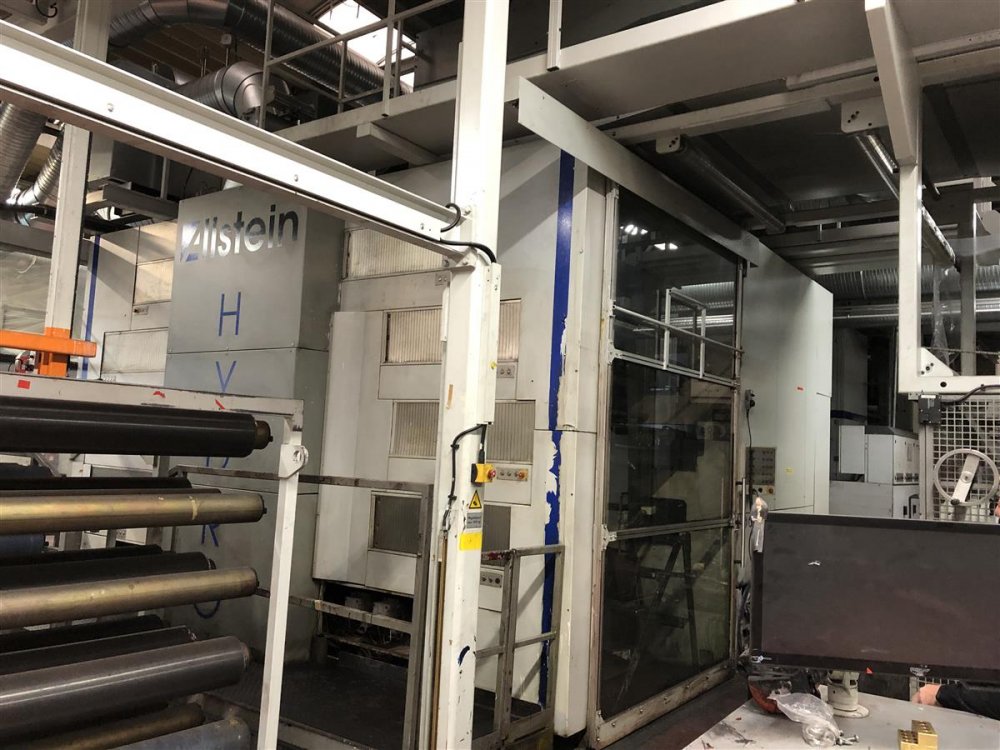

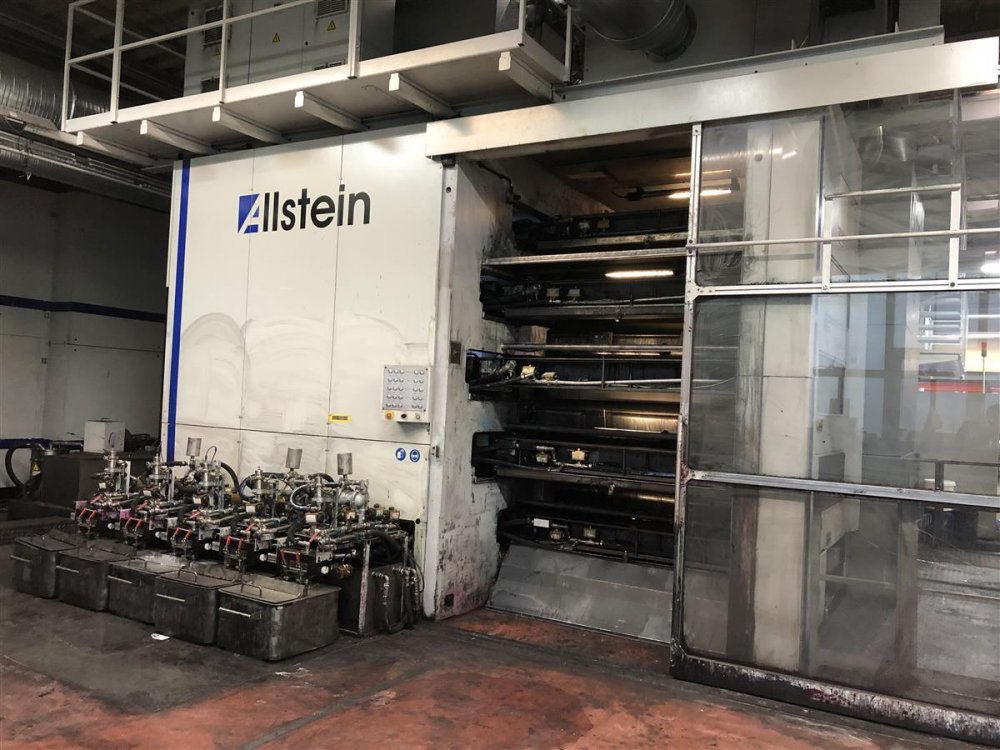

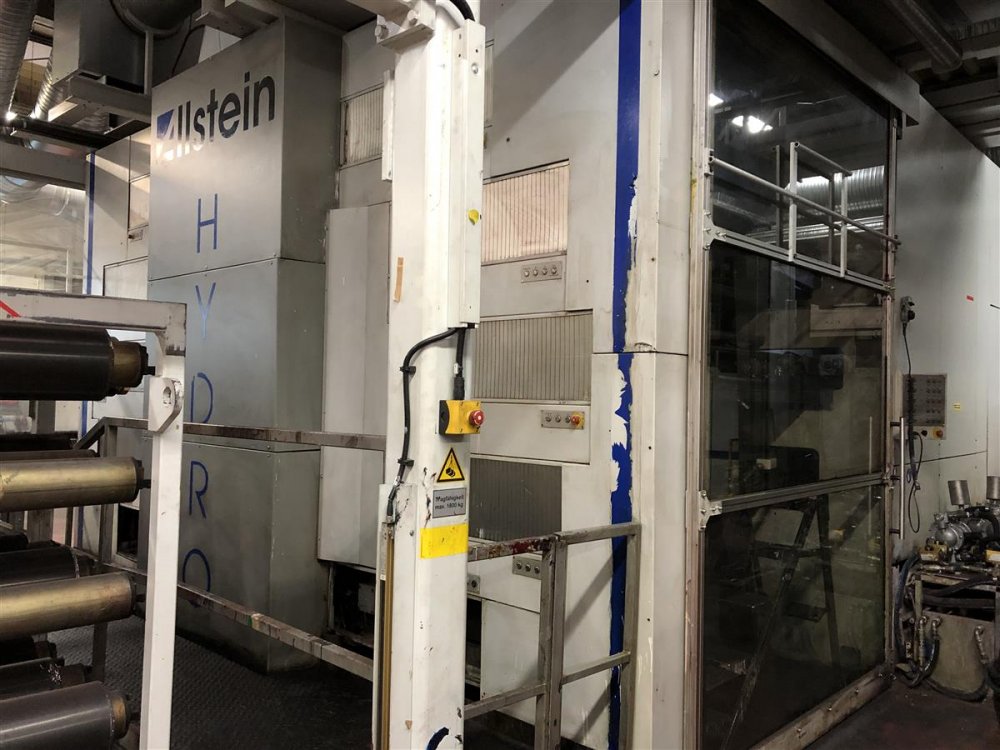

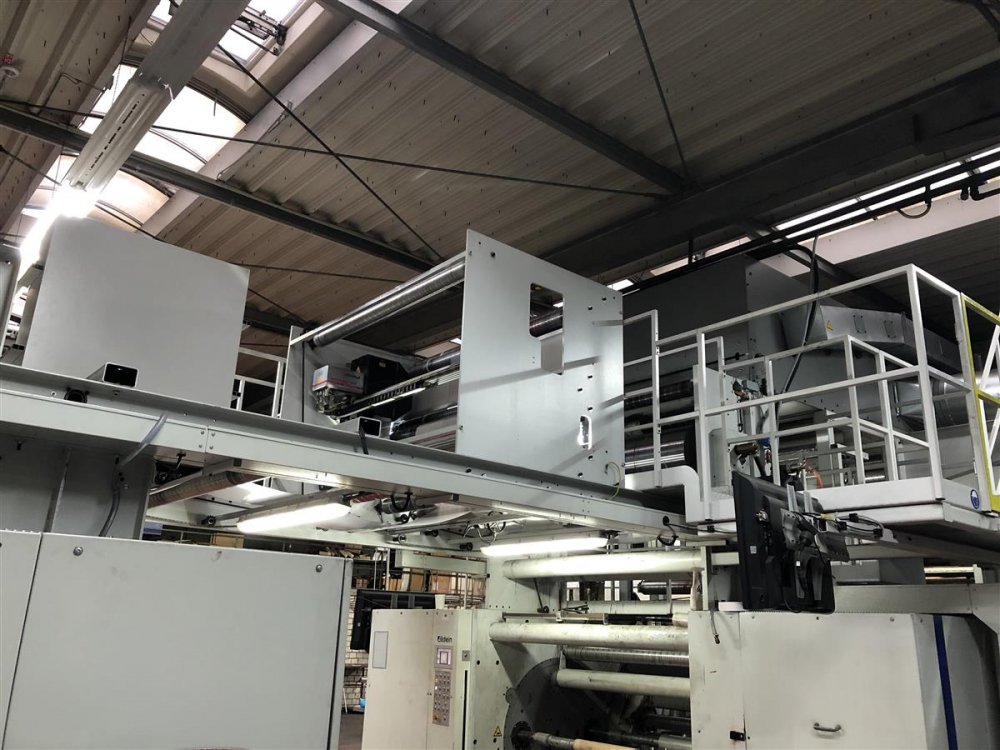

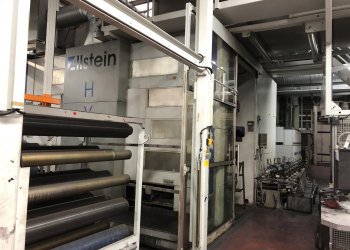

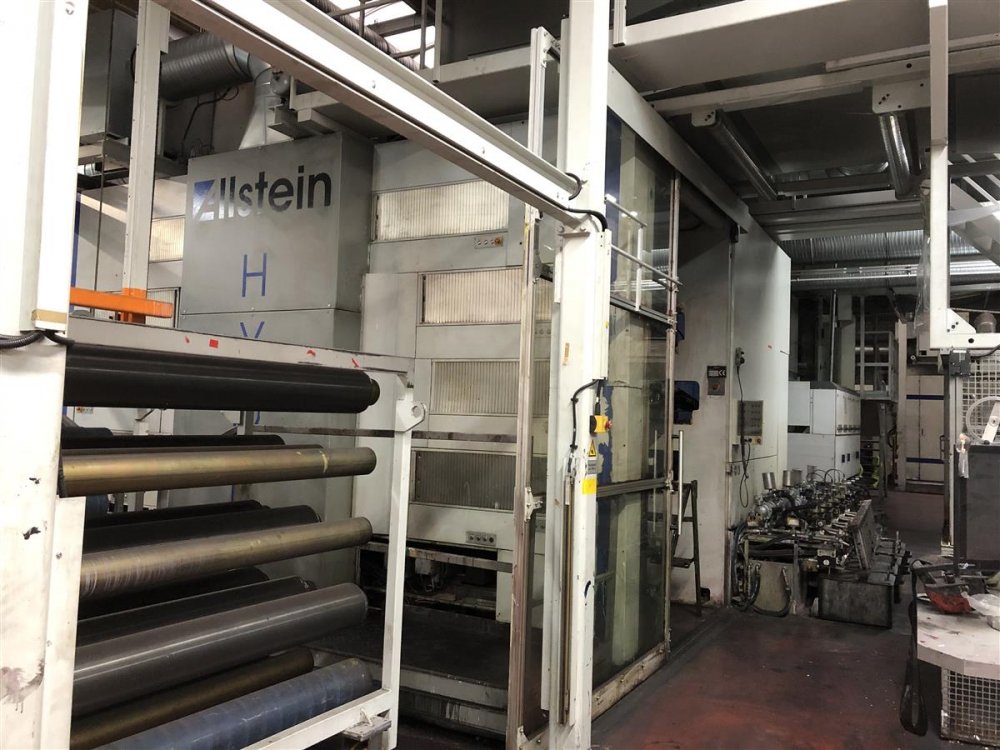

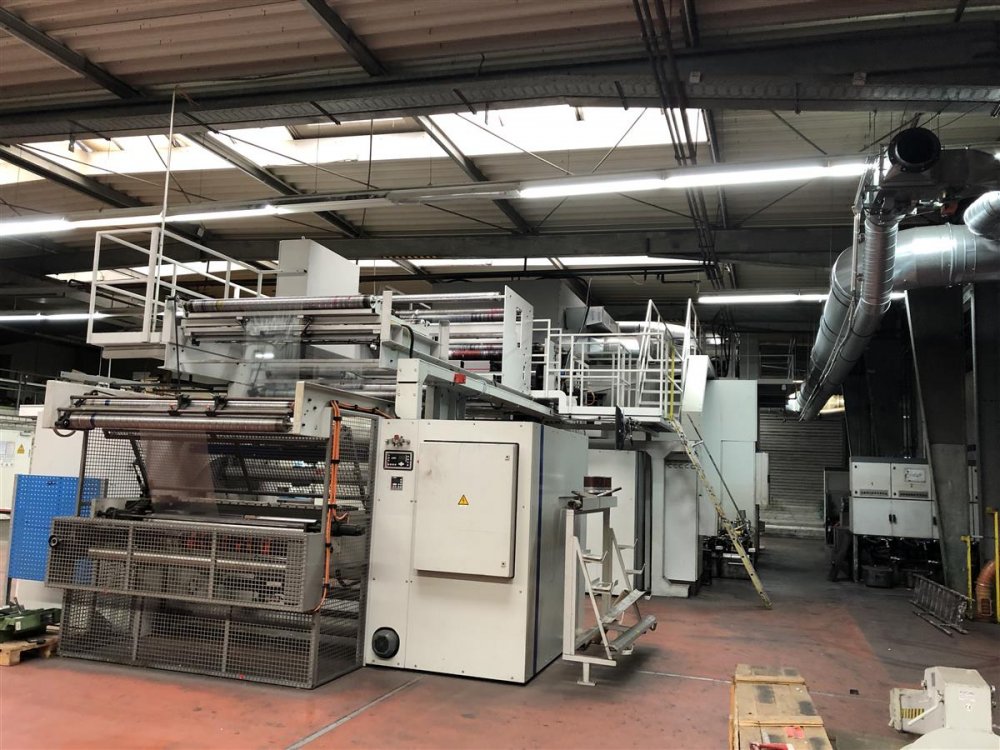

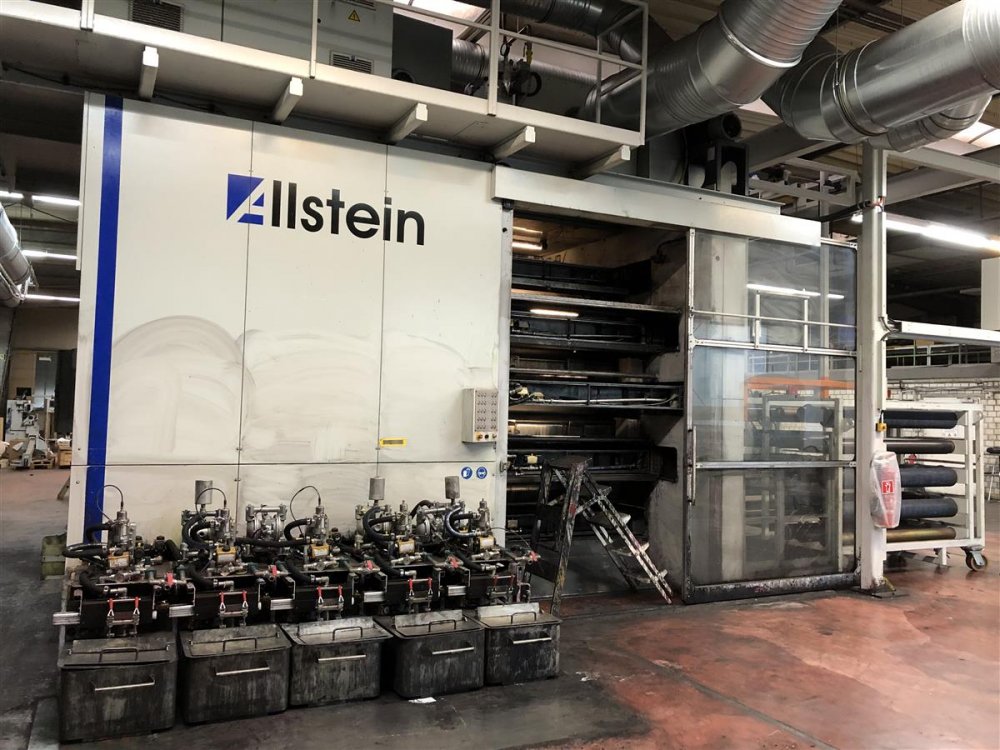

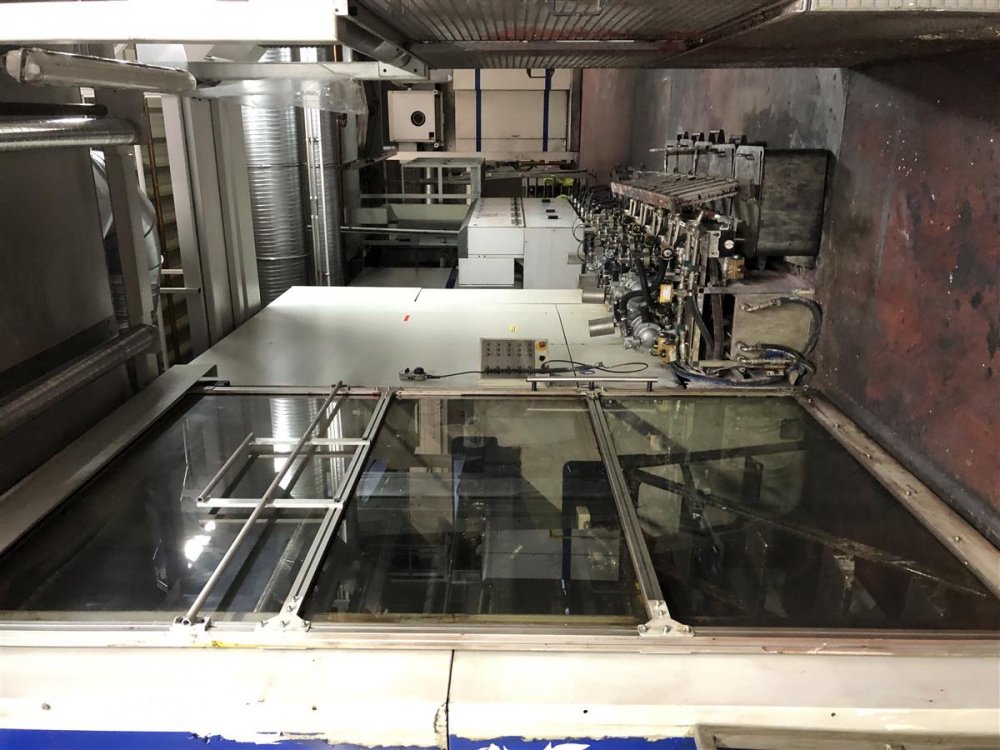

ALLSTEIN Hydro 10 flexo printing machine 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL945
Manufacturer
ALLSTEIN
Model
Hydro 10
Year
2014
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

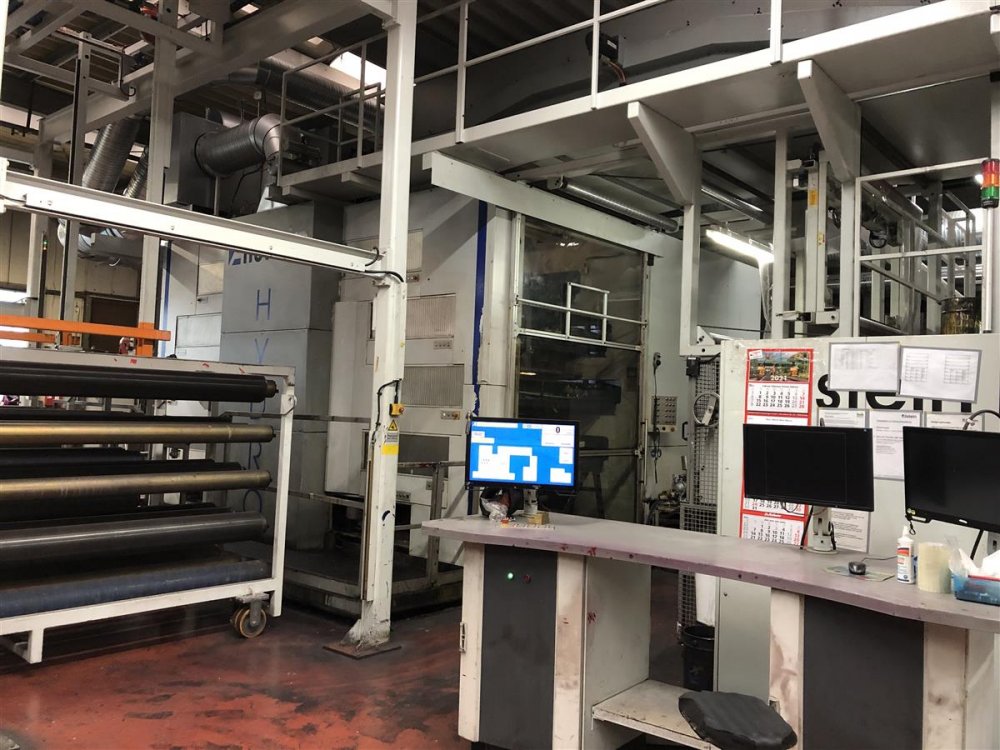

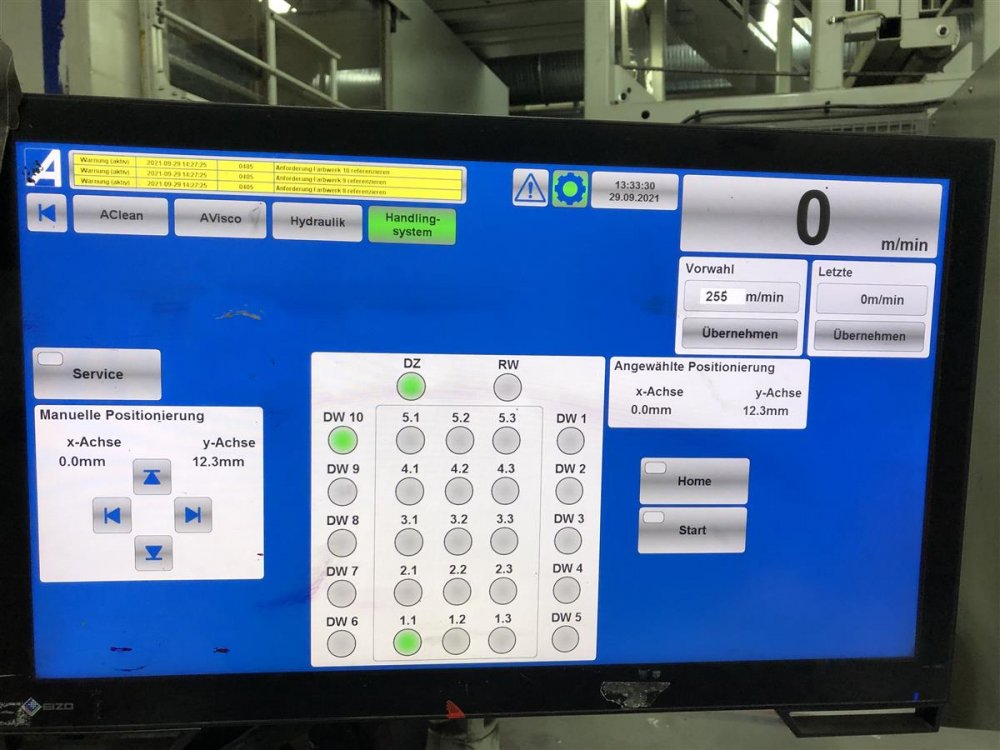

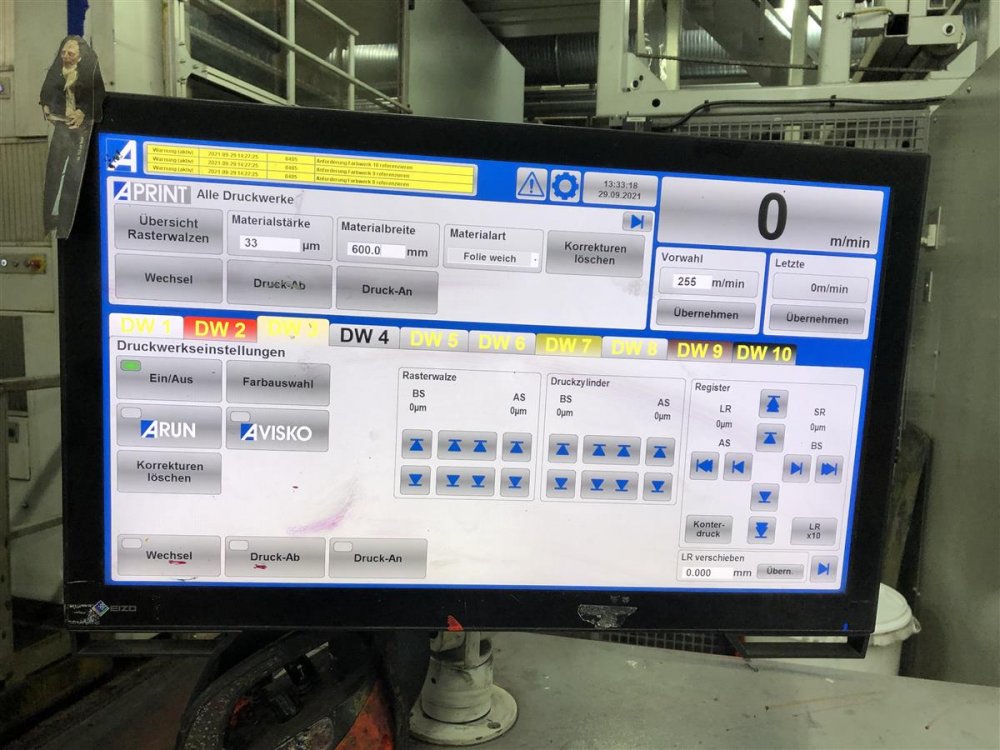

Computer supervision
Yes
Web width (mm)
1850
Print width (mm)
1800
Min print repeat (mm)
440
Max print repeat (mm)
880
Unwinder type
TURRET bi-directional
Max reel diameter unwinder (mm)
1000

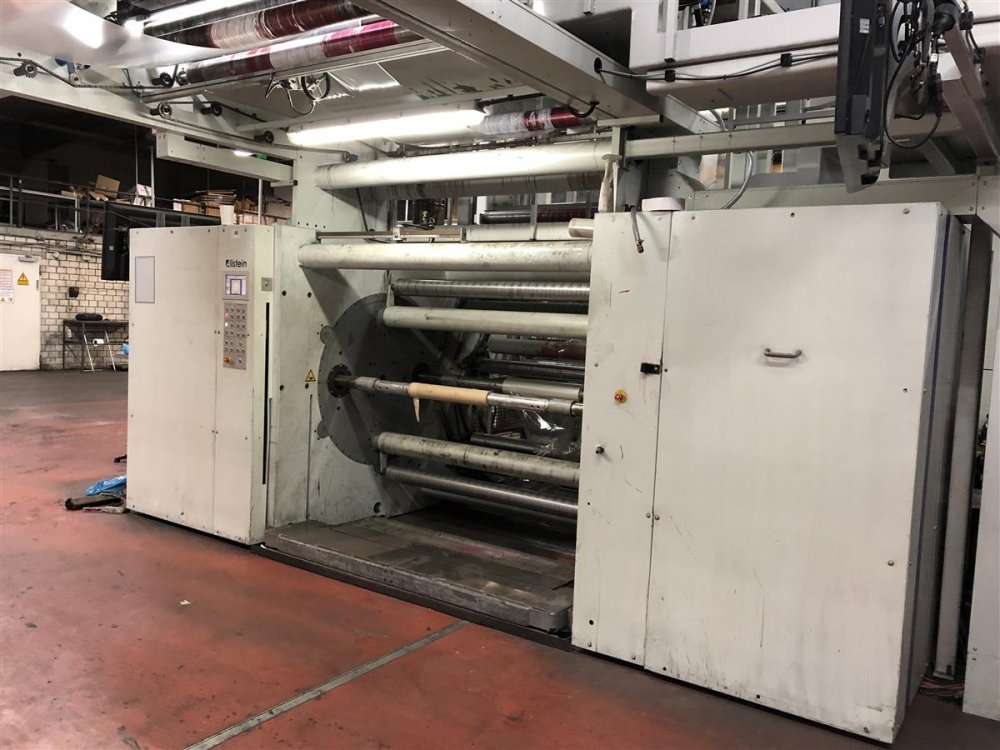

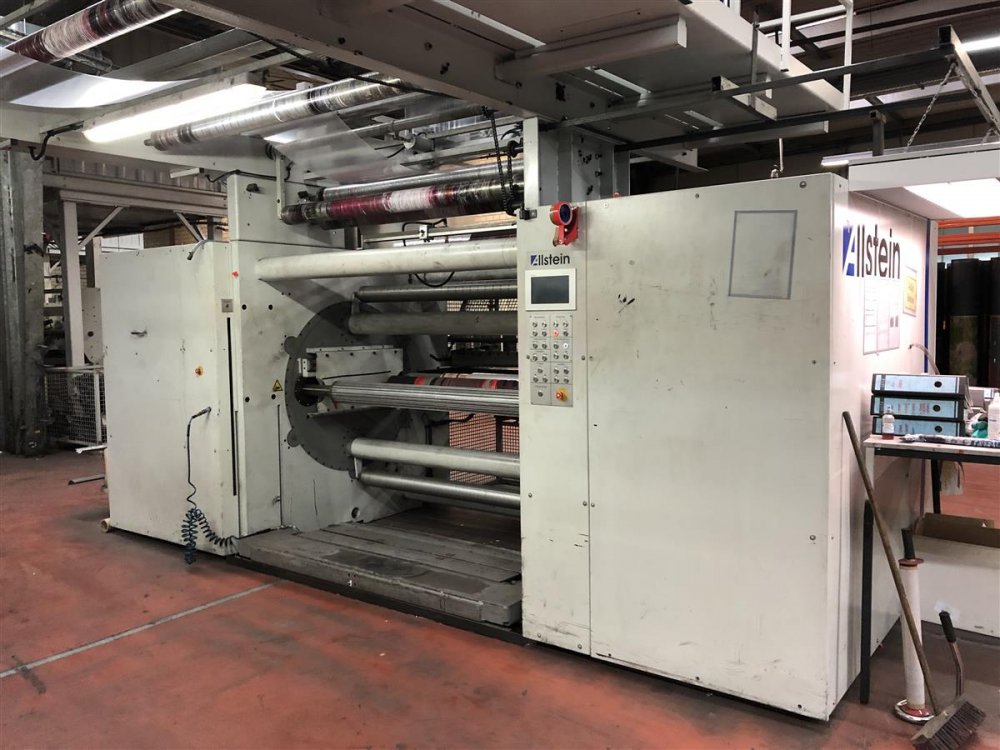

Rewinder type
TURRET bi-directional
Max reel diameter rewinder (mm)
1000
Drying
2 zones , 4 fans , 5 m drying tunnel Gas burners Maxon with LEL control

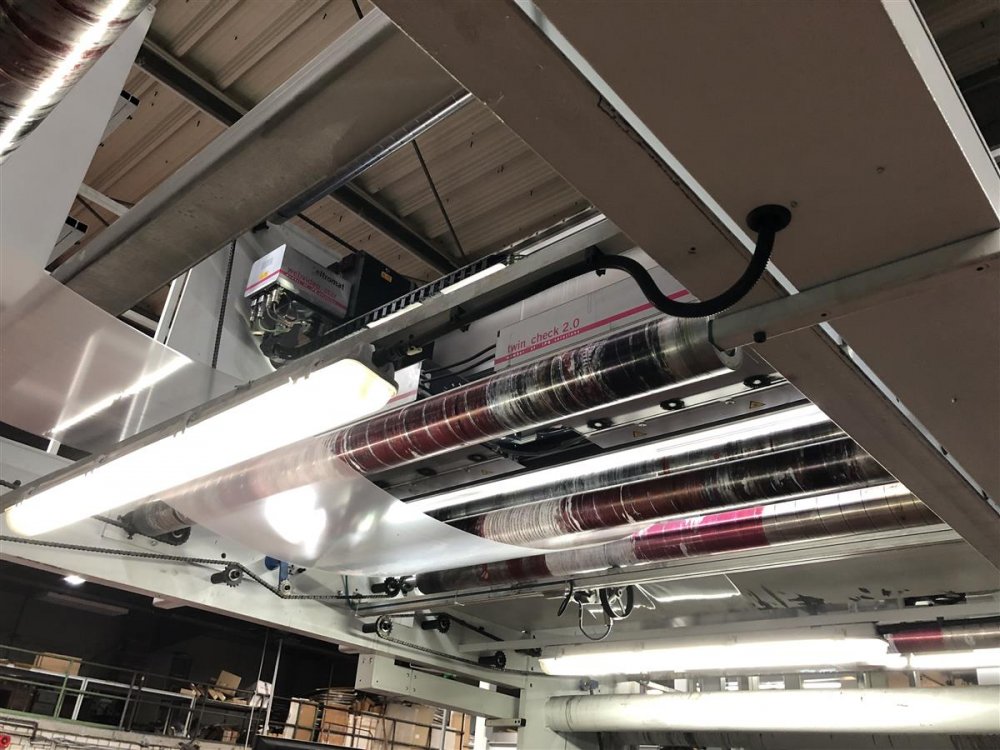

Videocamera
Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides
2 in and out

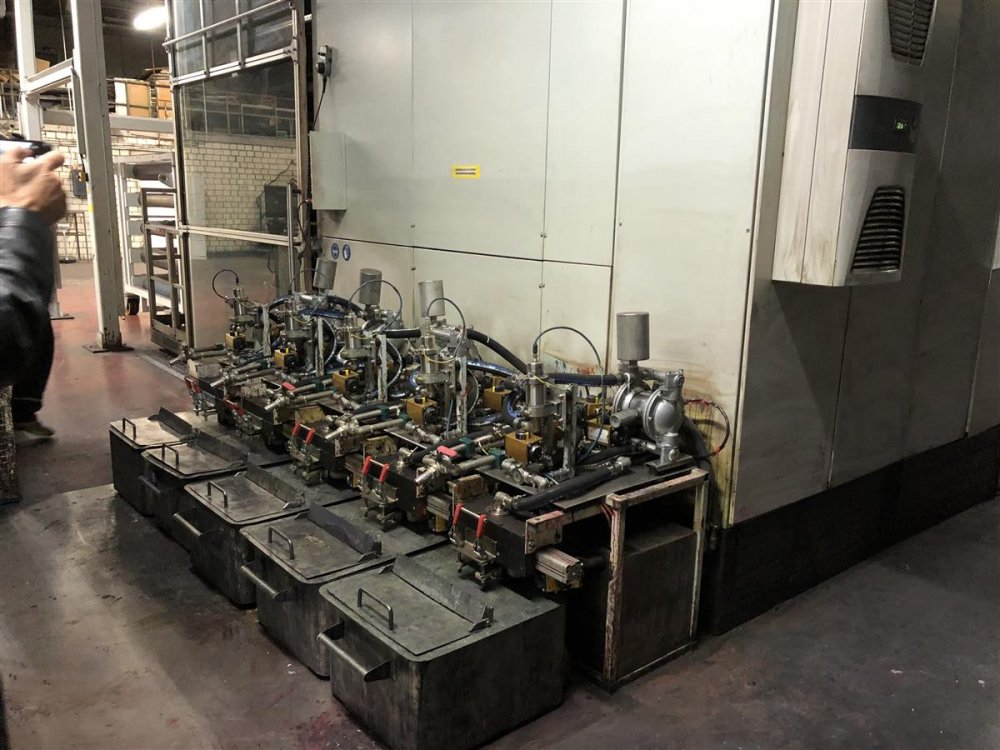

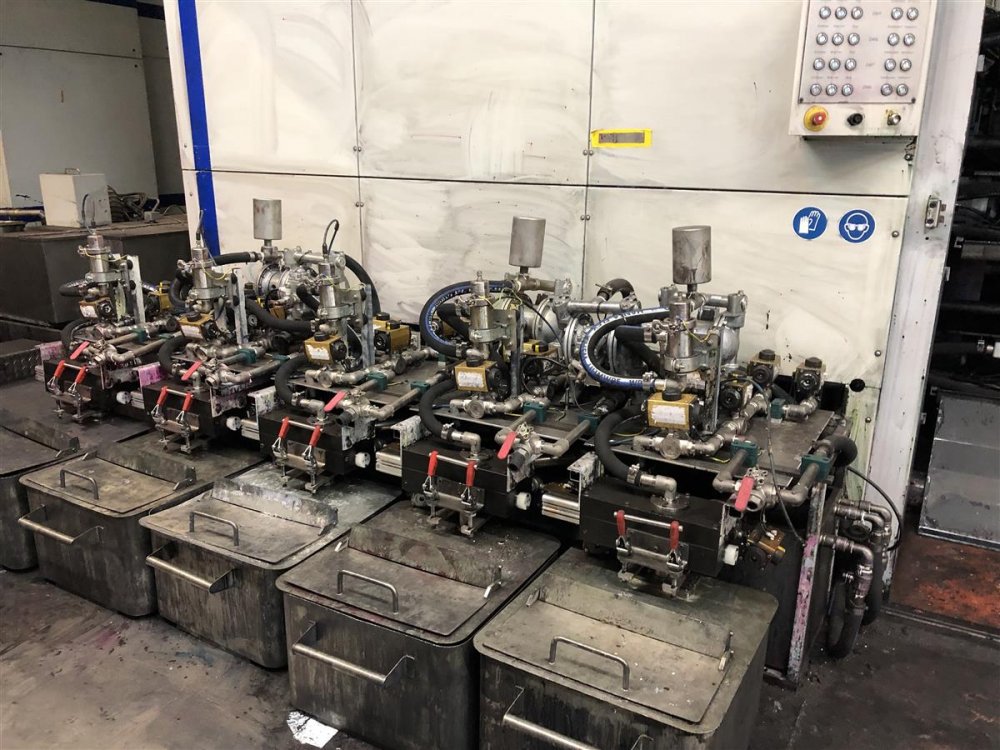

Vyscosity control
yes automatic ACLIAN
Washing system

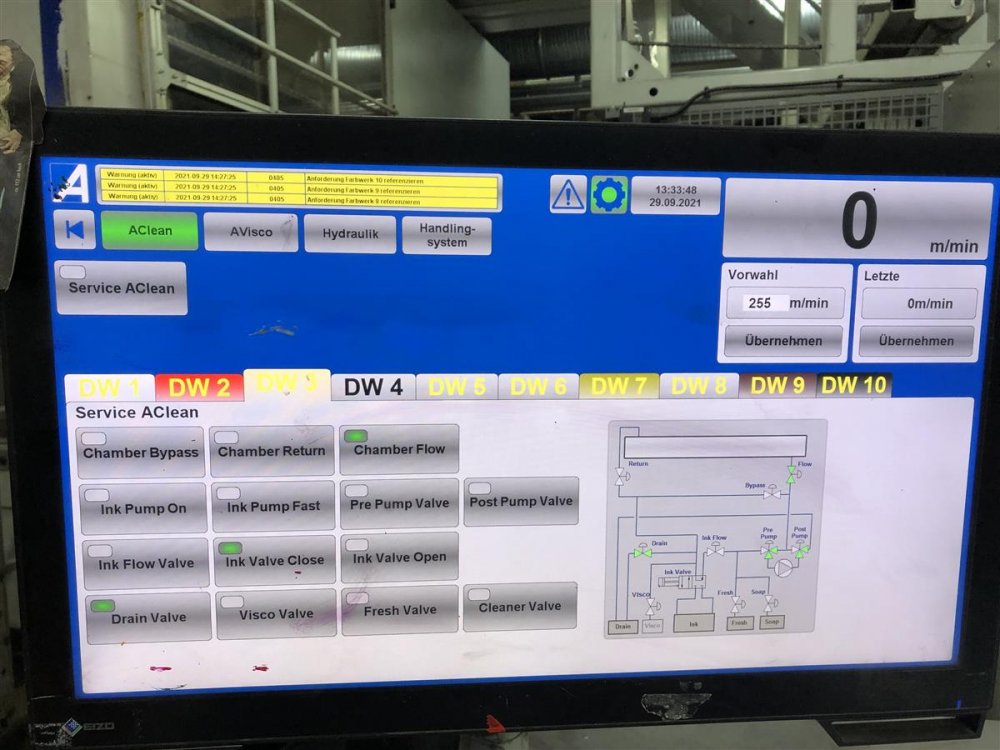

Yes automatic

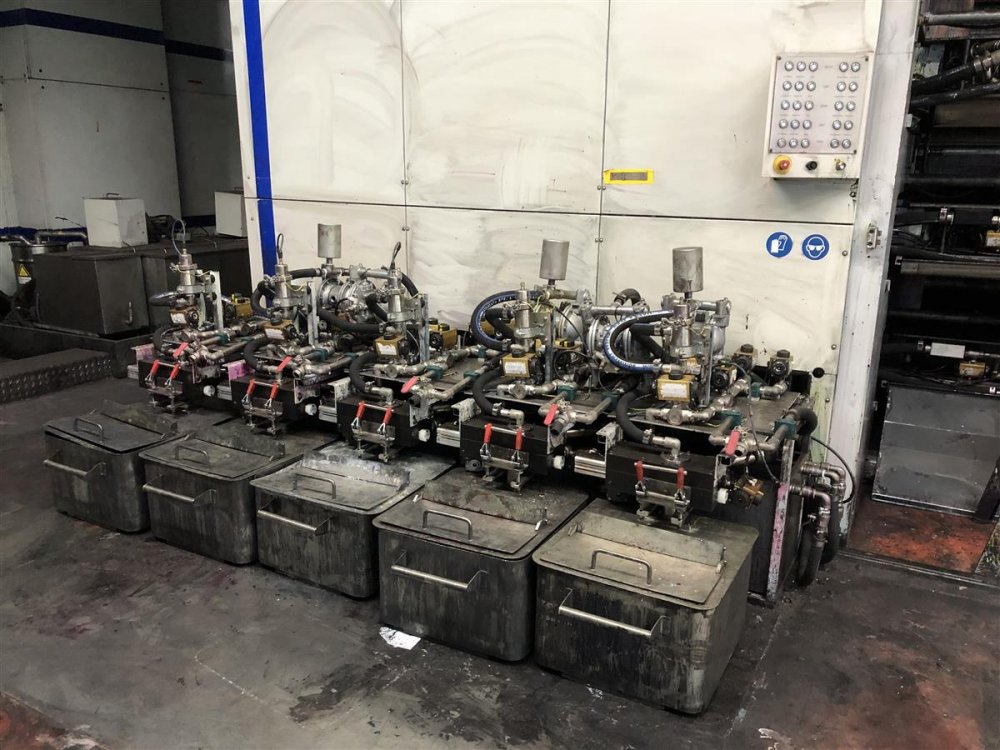

Inking system
CFK chambers
Anilox
1x120 L/cm, , 1x180, 1x160, 2x140, 2x220, 1x280, 3x400 , 1x340, 2x285.

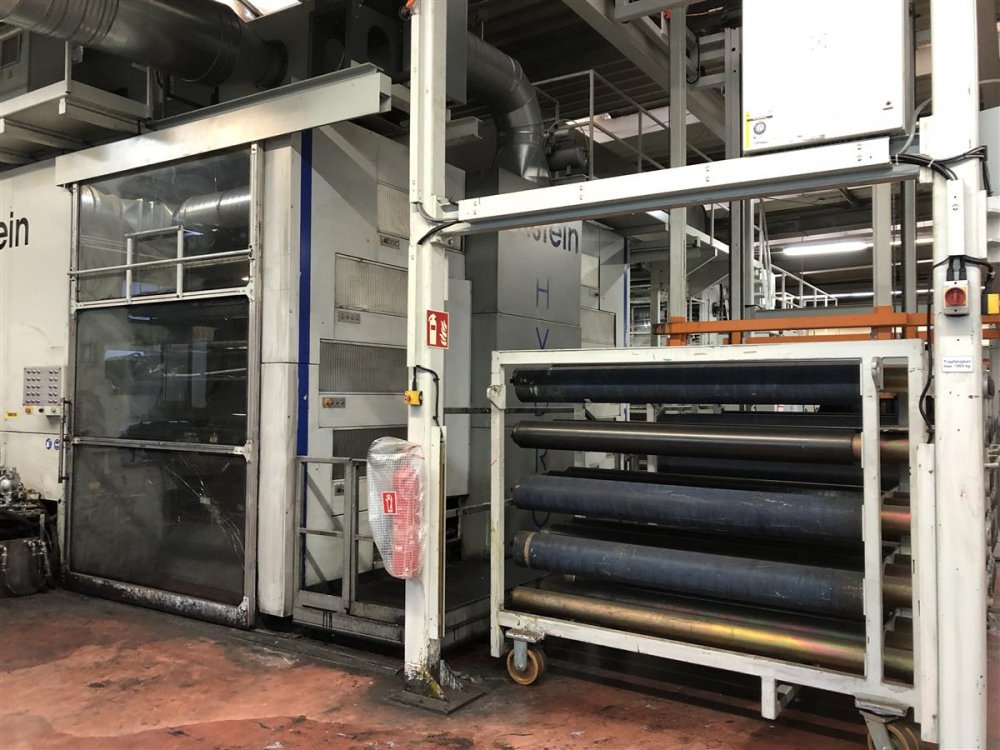

Print Sleeves
approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Additional information
8 color on a 10 color frame complete CI drum diam 2750mm speed 600 m/min LEL sensors
Machine Code FL945
Manufacturer ALLSTEIN
Model Hydro 10
Year 2014
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1850
Print width (mm) 1800
Min print repeat (mm) 440
Max print repeat (mm) 880
Unwinder type TURRET bi-directional
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET bi-directional
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , 5 m drying tunnel Gas burners Maxon with LEL control
Videocamera Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides 2 in and out
Vyscosity control yes automatic ACLIAN
Washing system Yes automatic
Inking system CFK chambers
Anilox 1x120 L/cm, , 1x180, 1x160, 2x140, 2x220, 1x280, 3x400 , 1x340, 2x285.
Print Sleeves approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Additional information 8 color on a 10 color frame complete CI drum diam 2750mm speed 600 m/min LEL sensors
